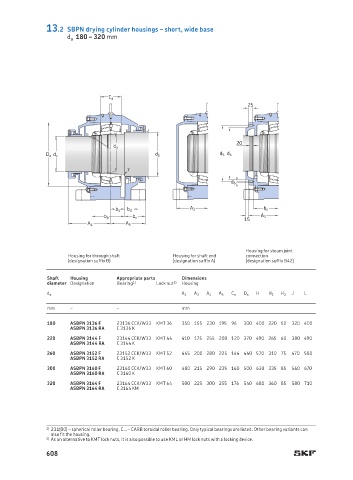

13.2 SBPN drying cylinder housings – short, wide base
d a 180 – 320 mm

C a
25

20
d a
D a d c d b d 5 d 4
r
d 6

b a b d A 3 b e
b b b c A 3
15
A 4 A 5

Housing for steam joint
Housing for through shaft Housing for shaft end connection
(designation suffix B) (designation suffix A) (designation suffix B42)

Shaft Housing Appropriate parts Dimensions
diameter Designation Bearing 1) Lock nut 2) Housing
H J L
d a A 1 A 3 A 4 A 5 C a D a H 1 H 2
mm – – mm

180 ASBPN 3136 F 23136 CCK/W33 KMT 36 350 155 230 195 96 300 400 220 50 320 400
ASBPN 3136 RA C 3136 K
220 ASBPN 3144 F 23144 CCK/W33 KMT 44 410 175 255 200 120 370 490 265 60 380 490
ASBPN 3144 RA C 3144 K
260 ASBPN 3152 F 23152 CCK/W33 KMT 52 445 200 280 225 144 440 570 310 75 470 580
ASBPN 3152 RA C 3152 K
300 ASBPN 3160 F 23160 CCK/W33 KMT 60 480 215 290 235 160 500 630 335 85 560 670
ASBPN 3160 RA C 3160 K
320 ASBPN 3164 F 23164 CCK/W33 KMT 64 500 225 300 255 176 540 680 360 85 580 710
ASBPN 3164 RA C 3164 KM

1) 231(00) – spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed. Other bearing variants can
also fit the housing.
2) As an alternative to KMT lock nuts, it is also possible to use KML or HM lock nuts with a locking device.
608
