J
J 2

28
H J 1 A 1
G
G 1
H 1

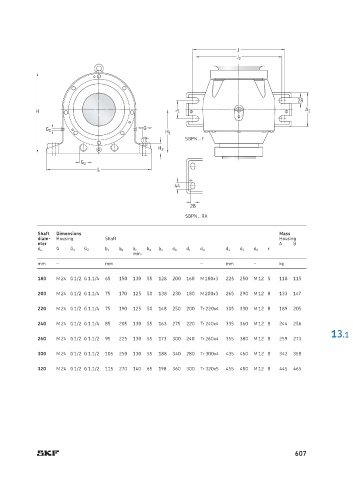

SBPN .. F
H 2
G 2
L

44

28
SBPN .. RA

Shaft Dimensions Mass
diam- Housing Shaft Housing
eter A B
d a G G 1 G 2 b a b b b c b d b e d b d c d d d 4 d 5 d 6 r
min.
mm – mm – mm – kg
180 M 24 G 1/2 G 1.1/4 65 150 130 55 128 200 160 M 180x3 225 250 M 12 5 118 115

200 M 24 G 1/2 G 1.1/4 75 170 125 50 138 230 180 M 200x3 265 290 M 12 8 133 147
220 M 24 G 1/2 G 1.1/4 75 190 125 50 148 250 200 Tr 220x4 305 330 M 12 8 189 205

240 M 24 G 1/2 G 1.1/4 85 205 130 55 163 275 220 Tr 240x4 335 360 M 12 8 244 256
13.1
260 M 24 G 1/2 G 1.1/2 95 225 130 55 173 300 240 Tr 260x4 355 380 M 12 8 259 273
300 M 24 G 1/2 G 1.1/2 105 250 130 55 188 340 280 Tr 300x4 435 460 M 12 8 342 358
320 M 24 G 1/2 G 1.1/2 115 270 140 65 198 360 300 Tr 320x5 455 480 M 12 8 445 465

607
