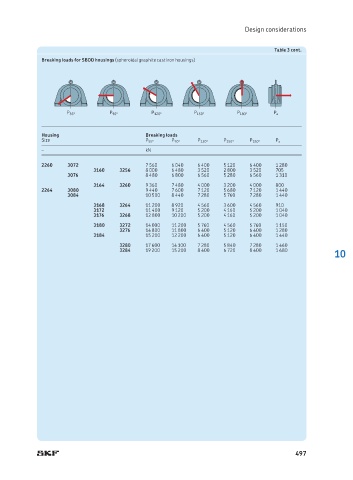

Page 501 - SKF-bearing-housings

Design considerations

Table 3 cont.
Breaking loads for SBDD housings (spheroidal graphite cast iron housings)

P 55° P 90° P 120° P 150° P 180° P a

Housing Breaking loads
Size P 55° P 90° P 120° P 150° P 180° P a
– kN
2260 3072 7 560 6 040 6 400 5 120 6 400 1 280
3160 3256 8 000 6 480 3 520 2 800 3 520 705
3076 8 480 6 800 6 560 5 280 6 560 1 310
3164 3260 9 360 7 480 4 000 3 200 4 000 800
2264 3080 9 440 7 600 7 120 5 680 7 120 1 440
3084 10 500 8 440 7 280 5 760 7 280 1 440
3168 3264 11 200 8 920 4 560 3 600 4 560 910
3172 11 400 9 120 5 200 4 160 5 200 1 040
3176 3268 12 800 10 200 5 200 4 160 5 200 1 040
3180 3272 14 000 11 200 5 760 4 560 5 760 1 150
3276 14 800 11 800 6 400 5 120 6 400 1 280
3184 15 200 12 200 6 400 5 120 6 400 1 440
3280 17 600 14 100 7 280 5 840 7 280 1 460
3284 19 200 15 200 8 400 6 720 8 400 1 680
