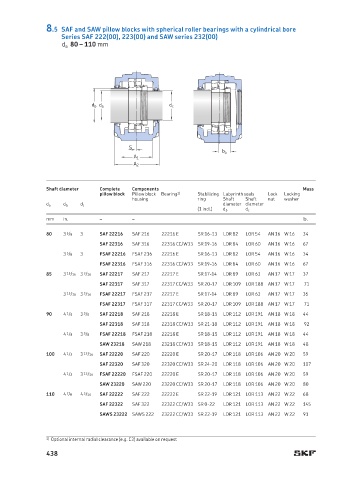

8.5 SAF and SAW pillow blocks with spherical roller bearings with a cylindrical bore
Series SAF 222(00), 223(00) and SAW series 232(00)
d a 80 – 110 mm

d b d a d c

S
b a
A 1
A 2

Shaft diam eter Complete Components Mass
pillow block Pillow block Bearing 1) Stabilizing Labyrinth seals Lock Locking
housing ring Shaft Shaft nut washer
diameter diameter
d a d b d c
(1 incl.) d b d c
mm in. – – Ib.
80 3 5 /8 3 SAF 22216 SAF 216 22216 E SR 16-13 LOR 82 LOR 54 AN 16 W 16 34
SAF 22316 SAF 316 22316 CC/W33 SR 19-16 LOR 84 LOR 60 AN 16 W 16 67
3 5 /8 3 FSAF 22216 FSAF 216 22216 E SR 16-13 LOR 82 LOR 54 AN 16 W 16 34
FSAF 22316 FSAF 316 22316 CC/W33 SR 19-16 LOR 84 LOR 60 AN 16 W 16 67
85 3 15 /16 3 3 /16 SAF 22217 SAF 217 22217 E SR 17-14 LOR 89 LOR 63 AN 17 W 17 37
SAF 22317 SAF 317 22317 CC/W33 SR 20-17 LOR 109 LOR 188 AN 17 W 17 71
3 15 /16 3 3 /16 FSAF 22217 FSAF 217 22217 E SR 17-14 LOR 89 LOR 63 AN 17 W 17 35
FSAF 22317 FSAF 317 22317 CC/W33 SR 20-17 LOR 109 LOR 188 AN 17 W 17 71
90 4 1 /8 3 3 /8 SAF 22218 SAF 218 22218 E SR 18-15 LOR 112 LOR 191 AN 18 W 18 44
SAF 22318 SAF 318 22318 CC/W33 SR 21-18 LOR 112 LOR 191 AN 18 W 18 92
4 1 /8 3 3 /8 FSAF 22218 FSAF 218 22218 E SR 18-15 LOR 112 LOR 191 AN 18 W 18 44
SAW 23218 SAW 218 23218 CC/W33 SR 18-15 LOR 112 LOR 191 AN 18 W 18 48
100 4 1 /2 3 13 /16 SAF 22220 SAF 220 22220 E SR 20-17 LOR 118 LOR 106 AN 20 W 20 59
SAF 22320 SAF 320 22320 CC/W33 SR 24-20 LOR 118 LOR 106 AN 20 W 20 107
4 1 /2 3 13 /16 FSAF 22220 FSAF 220 22220 E SR 20-17 LOR 118 LOR 106 AN 20 W 20 59
SAW 23220 SAW 220 23220 CC/W33 SR 20-17 LOR 118 LOR 106 AN 20 W 20 80
110 4 7 /8 4 3 /16 SAF 22222 SAF 222 22222 E SR 22-19 LOR 121 LOR 113 AN 22 W 22 68
SAF 22322 SAF 322 22322 CC/W33 SR 0-22 LOR 121 LOR 113 AN 22 W 22 145
SAWS 23222 SAWS 222 23222 CC/W33 SR 22-19 LOR 121 LOR 113 AN 22 W 22 91

1) Optional internal radial clearance (e.g. C3) available on request
