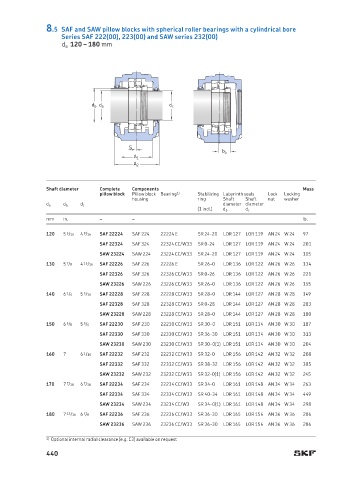

8.5 SAF and SAW pillow blocks with spherical roller bearings with a cylindrical bore
Series SAF 222(00), 223(00) and SAW series 232(00)
d a 120 – 180 mm

d b d a d c

S
b a
A 1
A 2

Shaft diam eter Complete Components Mass
pillow block Pillow block Bearing 1) Stabilizing Labyrinth seals Lock Locking
housing ring Shaft Shaft nut washer
diameter diameter
d a d b d c
(1 incl.) d b d c
mm in. – – Ib.
120 5 5 /16 4 9 /16 SAF 22224 SAF 224 22224 E SR 24-20 LOR 127 LOR 119 AN 24 W 24 97
SAF 22324 SAF 324 22324 CC/W33 SR 0-24 LOR 127 LOR 119 AN 24 W 24 201
SAW 23224 SAW 224 23224 CC/W33 SR 24-20 LOR 127 LOR 119 AN 24 W 24 105
130 5 7 /8 4 15 /16 SAF 22226 SAF 226 22226 E SR 26-0 LOR 136 LOR 122 AN 26 W 26 134
SAF 22326 SAF 326 22326 CC/W33 SR 0-26 LOR 136 LOR 122 AN 26 W 26 221
SAW 23226 SAW 226 23226 CC/W33 SR 26-0 LOR 136 LOR 122 AN 26 W 26 155
140 6 1 /4 5 5 /16 SAF 22228 SAF 228 22228 CC/W33 SR 28-0 LOR 144 LOR 127 AN 28 W 28 149
SAF 22328 SAF 328 22328 CC/W33 SR 0-28 LOR 144 LOR 127 AN 28 W 28 283
SAW 23228 SAW 228 23228 CC/W33 SR 28-0 LOR 144 LOR 127 AN 28 W 28 180
150 6 5 /8 5 3 /4 SAF 22230 SAF 230 22230 CC/W33 SR 30-0 LOR 151 LOR 134 AN 30 W 30 187
SAF 22330 SAF 330 22330 CC/W33 SR 36-30 LOR 151 LOR 134 AN 30 W 30 313
SAW 23230 SAW 230 23230 CC/W33 SR 30-0(1) LOR 151 LOR 134 AN 30 W 30 204
160 7 6 1 /16 SAF 22232 SAF 232 22232 CC/W33 SR 32-0 LOR 156 LOR 142 AN 32 W 32 208
SAF 22332 SAF 332 22332 CC/W33 SR 38-32 LOR 156 LOR 142 AN 32 W 32 385
SAW 23232 SAW 232 23232 CC/W33 SR 32-0(1) LOR 156 LOR 142 AN 32 W 32 245
170 7 7 /16 6 7 /16 SAF 22234 SAF 234 22234 CC/W33 SR 34-0 LOR 161 LOR 148 AN 34 W 34 263
SAF 22334 SAF 334 22334 CC/W33 SR 40-34 LOR 161 LOR 148 AN 34 W 34 449
SAW 23234 SAW 234 23234 CC/W3 SR 34-0(1) LOR 161 LOR 148 AN 34 W 34 298
180 7 13 /16 6 7 /8 SAF 22236 SAF 236 22236 CC/W33 SR 36-30 LOR 165 LOR 154 AN 36 W 36 286
SAW 23236 SAW 236 23236 CC/W33 SR 36-30 LOR 165 LOR 154 AN 36 W 36 286
1) Optional internal radial clearance (e.g. C3) available on request
