P. 438

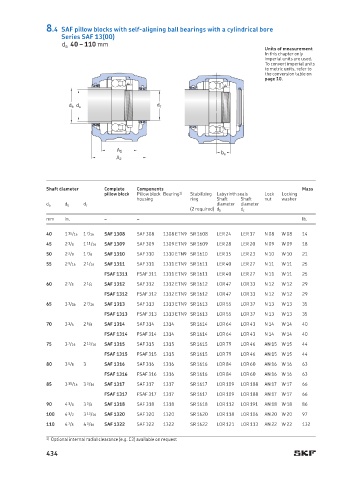

8.4 SAF pillow blocks with self-aligning ball bearings with a cylindrical bore
Series SAF 13(00)
d a 40 – 110 mm
Units of measurement
In this chapter only
imperial units are used.
To convert imperial units
to metric units, refer to
the conversion table on
page 10.
d b d a d c
A 1
b a
A 2
Shaft diam eter Complete Components Mass
pillow block Pillow block Bearing 1) Stabilizing Labyrinth seals Lock Locking
housing ring Shaft Shaft nut washer
diameter diameter
d a d b d c
(2 required) d b d c
mm in. – – Ib.
40 1 15 /16 1 7 /16 SAF 1308 SAF 308 1308 ETN9 SR 1608 LER 24 LER 17 N 08 W 08 14
45 2 1 /8 1 11 /16 SAF 1309 SAF 309 1309 ETN9 SR 1609 LER 28 LER 20 N 09 W 09 18
50 2 3 /8 1 7 /8 SAF 1310 SAF 310 1310 ETN9 SR 1610 LER 35 LER 23 N 10 W 10 21
55 2 9 /16 2 1 /16 SAF 1311 SAF 311 1311 ETN9 SR 1611 LER 40 LER 27 N 11 W 11 25
FSAF 1311 FSAF 311 1311 ETN9 SR 1611 LER 40 LER 27 N 11 W 11 25
60 2 7 /8 2 1 /4 SAF 1312 SAF 312 1312 ETN9 SR 1612 LOR 47 LOR 33 N 12 W 12 29
FSAF 1312 FSAF 312 1312 ETN9 SR 1612 LOR 47 LOR 33 N 12 W 12 29
65 3 1 /16 2 7 /16 SAF 1313 SAF 313 1313 ETN9 SR 1613 LOR 55 LOR 37 N 13 W 13 35
FSAF 1313 FSAF 313 1313 ETN9 SR 1613 LOR 55 LOR 37 N 13 W 13 35
70 3 1 /4 2 5 /8 SAF 1314 SAF 314 1314 SR 1614 LOR 64 LOR 43 N 14 W 14 40
FSAF 1314 FSAF 314 1314 SR 1614 LOR 64 LOR 43 N 14 W 14 40
75 3 7 /16 2 13 /16 SAF 1315 SAF 315 1315 SR 1615 LOR 79 LOR 46 AN 15 W 15 44
FSAF 1315 FSAF 315 1315 SR 1615 LOR 79 LOR 46 AN 15 W 15 44
80 3 5 /8 3 SAF 1316 SAF 316 1316 SR 1616 LOR 84 LOR 60 AN 16 W 16 63
FSAF 1316 FSAF 316 1316 SR 1616 LOR 84 LOR 60 AN 16 W 16 63
85 3 15 /16 3 3 /16 SAF 1317 SAF 317 1317 SR 1617 LOR 109 LOR 188 AN 17 W 17 66
FSAF 1317 FSAF 317 1317 SR 1617 LOR 109 LOR 188 AN 17 W 17 66
90 4 1 /8 3 3 /8 SAF 1318 SAF 318 1318 SR 1618 LOR 112 LOR 191 AN 18 W 18 86
100 4 1 /2 3 13 /16 SAF 1320 SAF 320 1320 SR 1620 LOR 118 LOR 106 AN 20 W 20 97
110 4 7 /8 4 3 /16 SAF 1322 SAF 322 1322 SR 1622 LOR 121 LOR 113 AN 22 W 22 132
1) Optional internal radial clearance (e.g. C3) available on request
