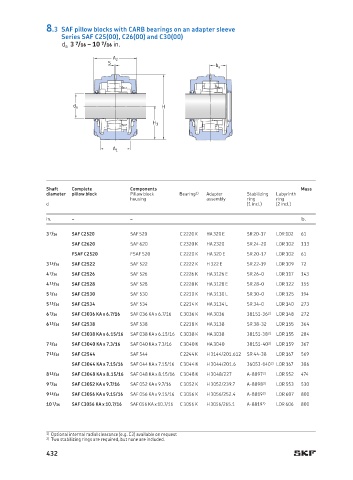

8.3 SAF pillow blocks with CARB bearings on an adapter sleeve
Series SAF C25(00), C26(00) and C30(00)
d a 3 7 /16 – 10 7 /16 in.
A 2
S
b a

d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
d (1 incl.) (2 incl.)
in. – – Ib.

3 7 /16 SAF C2520 SAF 520 C 2220 K HA 320 E SR 20-17 LOR 102 61
SAF C2620 SAF 620 C 2320 K HA 2320 SR 24-20 LOR 102 113
FSAF C2520 FSAF 520 C 2220 K HA 320 E SR 20-17 LOR 102 61
3 15 /16 SAF C2522 SAF 522 C 2222 K H 3 22 E SR 22-19 LOR 109 72
4 7 /16 SAF C2526 SAF 526 C 2226 K HA 3126 E SR 26-0 LOR 117 143
4 15 /16 SAF C2528 SAF 528 C 2228 K HA 3128 E SR 28-0 LOR 122 155
5 3 /16 SAF C2530 SAF 530 C 2230 K HA 3130 L SR 30-0 LOR 125 194
5 15 /16 SAF C2534 SAF 534 C 2234 K HA 3134 L SR 34-0 LOR 140 273
6 7 /16 SAF C3036 KA x 6.7/16 SAF 036 KA x 6.7/16 C 3036 K HA 3036 38151-36 2) LOR 148 272
6 15 /16 SAF C2538 SAF 538 C 2238 K HA 3138 SR 38-32 LOR 155 364
SAF C3038 KA x 6.15/16 SAF 038 KA x 6.15/16 C 3038 K HA 3038 38151-38 2) LOR 155 284
7 3 /16 SAF C3040 KA x 7.3/16 SAF 040 KA x 7.3/16 C 3040 K HA 3040 38151-40 2) LOR 159 367
7 15 /16 SAF C2544 SAF 544 C 2244 K H 3144/201.612 SR 44-38 LOR 167 569
SAF C3044 KA x 7.15/16 SAF 044 KA x 7.15/16 C 3044 K H 3044/201.6 36053-140 2) LOR 167 386
8 15 /16 SAF C3048 KA x 8.15/16 SAF 048 KA x 8.15/16 C 3048 K H 3 048/227 A-8897 2) LOR 552 474
9 7 /16 SAF C3052 KA x 9.7/16 SAF 052 KA x 9.7/16 C 3052 K H 3052/239.7 A-8898 2) LOR 553 530
9 15 /16 SAF C3056 KA x 9.15/16 SAF 056 KA x 9.15/16 C 3056 K H 3056/252.4 A-8819 2) LOR 607 800
10 7 /16 SAF C3056 KA x 10.7/16 SAF 056 KA x 10.7/16 C 3056 K H 3056/265.1 A-8819 2) LOR 606 800

1) Optional internal radial clearance (e.g. C3) available on request
2) Two stabilizing rings are required, but none are included.
