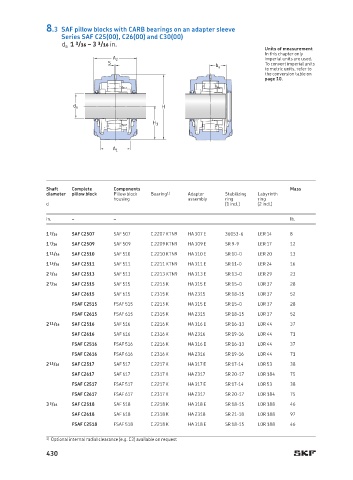

8.3 SAF pillow blocks with CARB bearings on an adapter sleeve
Series SAF C25(00), C26(00) and C30(00)
d a 1 3 /16 – 3 3 /16 in.
Units of measurement
In this chapter only
A 2 imperial units are used.
S To convert imperial units
b a
to metric units, refer to
the conversion table on
page 10.
d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
d (1 incl.) (2 incl.)
in. – – Ib.

1 3 /16 SAF C2507 SAF 507 C 2207 KTN9 HA 307 E 36053-6 LER 14 8
1 7 /16 SAF C2509 SAF 509 C 2209 KTN9 HA 309 E SR 9-9 LER 17 12
1 11 /16 SAF C2510 SAF 510 C 2210 KTN9 HA 310 E SR 10-0 LER 20 13
1 15 /16 SAF C2511 SAF 511 C 2211 KTN9 HA 311 E SR 11-0 LER 24 16
2 3 /16 SAF C2513 SAF 513 C 2213 KTN9 HA 313 E SR 13-0 LER 29 23
2 7 /16 SAF C2515 SAF 515 C 2215 K HA 315 E SR 15-0 LOR 37 28
SAF C2615 SAF 615 C 2315 K HA 2315 SR 18-15 LOR 37 52
FSAF C2515 FSAF 515 C 2215 K HA 315 E SR 15-0 LOR 37 28
FSAF C2615 FSAF 615 C 2315 K HA 2315 SR 18-15 LOR 37 52
2 11 /16 SAF C2516 SAF 516 C 2216 K HA 316 E SR 16-13 LOR 44 37
SAF C2616 SAF 616 C 2316 K HA 2316 SR 19-16 LOR 44 71
FSAF C2516 FSAF 516 C 2216 K HA 316 E SR 16-13 LOR 44 37
FSAF C2616 FSAF 616 C 2316 K HA 2316 SR 19-16 LOR 44 71
2 15 /16 SAF C2517 SAF 517 C 2217 K HA 317 E SR 17-14 LOR 53 38
SAF C2617 SAF 617 C 2317 K HA 2317 SR 20-17 LOR 184 75
FSAF C2517 FSAF 517 C 2217 K HA 317 E SR 17-14 LOR 53 38
FSAF C2617 FSAF 617 C 2317 K HA 2317 SR 20-17 LOR 184 75
3 3 /16 SAF C2518 SAF 518 C 2218 K HA 318 E SR 18-15 LOR 188 46
SAF C2618 SAF 618 C 2318 K HA 2318 SR 21-18 LOR 188 97
FSAF C2518 FSAF 518 C 2218 K HA 318 E SR 18-15 LOR 188 46
1) Optional internal radial clearance (e.g. C3) available on request
