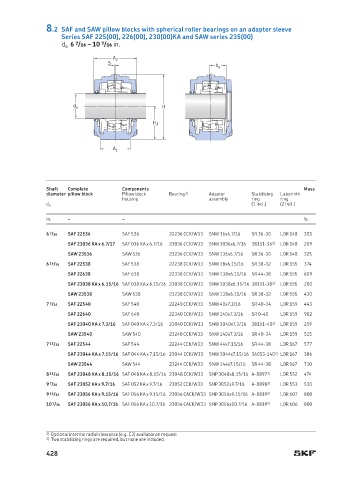

8.2 SAF and SAW pillow blocks with spherical roller bearings on an adapter sleeve
Series SAF 225(00), 226(00), 230(00)KA and SAW series 235(00)
d a 6 7 /16 – 10 7 /16 in.
A 2
S
b a

d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
(1 incl.) (2 incl.)
d a
in. – – Ib.

6 7 /16 SAF 22536 SAF 536 22236 CCK/W33 SNW 36x6.7/16 SR 36-30 LOR 148 301
SAF 23036 KA x 6.7/17 SAF 036 KA x 6.7⁄16 23036 CCK/W33 SNW 3036x6.7⁄16 38151-36 2) LOR 148 209
SAW 23536 SAW 536 23236 CCK/W33 SNW 136x6.7/16 SR 36-30 LOR 148 325
6 15 /16 SAF 22538 SAF 538 22238 CCK/W33 SNW 38x6.15/16 SR 38-32 LOR 155 374
SAF 22638 SAF 638 22338 CCK/W33 SNW 138x6.15/16 SR 44-38 LOR 155 609
SAF 23038 KA x 6.15⁄16 SAF 038 KA x 6.15⁄16 23038 CCK/W33 SNW 3038x6.15⁄16 38151-38 2) LOR 155 200
SAW 23538 SAW 538 23238 CCK/W33 SNW 138x6.15/16 SR 38-32 LOR 155 430
7 3 /16 SAF 22540 SAF 540 22240 CCK/W33 SNW 40x7.3/16 SR 40-34 LOR 159 443
SAF 22640 SAF 640 22340 CCK/W33 SNW 140x7.3/16 SR 0-40 LOR 159 902
SAF 23040 KA x 7.3⁄16 SAF 040 KA x 7.3⁄16 23040 CCK/W33 SNW 3040x7.3⁄16 38151-40 2) LOR 159 259
SAW 23540 SAW 540 23240 CCK/W33 SNW 140x7.3/16 SR 40-34 LOR 159 515
7 15 /16 SAF 22544 SAF 544 22244 CCK/W33 SNW 44x7.15/16 SR 44-38 LOR 167 577
SAF 23044 KA x 7.15⁄16 SAF 044 KA x 7.15⁄16 23044 CCK/W33 SNW 3044x7.15⁄16 36053-140 2) LOR 167 386
SAW 23544 SAW 544 23244 CCK/W33 SNW 144x7.15/16 SR 44-38 LOR 167 710
8 15 /16 SAF 23048 KA x 8.15⁄16 SAF 048 KA x 8.15⁄16 23048 CCK/W33 SNP 3048x8.15⁄16 A-8897 2) LOR 552 474
9 7 /16 SAF 23052 KA x 9.7⁄16 SAF 052 KA x 9.7⁄16 23052 CCK/W33 SNP 3052x9.7⁄16 A-8898 2) LOR 553 530
9 15 /16 SAF 23056 KA x 9.15⁄16 SAF 056 KA x 9.15⁄16 23056 CACK/W33 SNP 3056x9.15⁄16 A-8819 2) LOR 607 800
10 7 /16 SAF 23056 KA x 10.7⁄16 SAF 056 KA x 10.7⁄16 23056 CACK/W33 SNP 3056x10.7⁄16 A-8819 2) LOR 606 800

1) Optional internal radial clearance (e.g. C3) available on request
2) Two stabilizing rings are required, but none are included.
428
