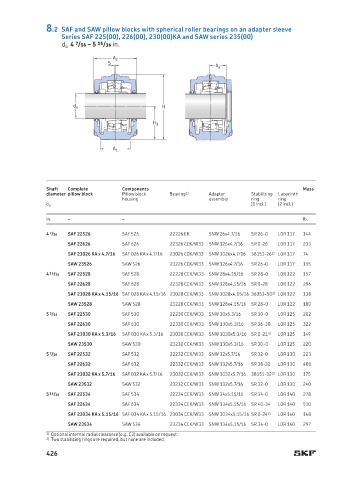

8.2 SAF and SAW pillow blocks with spherical roller bearings on an adapter sleeve
Series SAF 225(00), 226(00), 230(00)KA and SAW series 235(00)
d a 4 7 /16 – 5 15 /16 in.
A 2
S
b a

d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
(1 incl.) (2 incl.)
d a
in. – – Ib.

4 7 /16 SAF 22526 SAF 526 22226 EK SNW 26x4.7/16 SR 26-0 LOR 117 144
SAF 22626 SAF 626 22326 CCK/W33 SNW 126x4.7/16 SR 0-26 LOR 117 233
SAF 23026 KA x 4.7⁄16 SAF 026 KA x 4.7⁄16 23026 CCK/W33 SNW 3026x4.7⁄16 38151-26 2) LOR 117 74
SAW 23526 SAW 526 23226 CCK/W33 SNW 126x4.7/16 SR 26-0 LOR 117 155
4 15 /16 SAF 22528 SAF 528 22228 CCK/W33 SNW 28x4.15/16 SR 28-0 LOR 122 157
SAF 22628 SAF 628 22328 CCK/W33 SNW 128x4.15/16 SR 0-28 LOR 122 296
SAF 23028 KA x 4.15⁄16 SAF 028 KA x 4.15⁄16 23028 CCK/W33 SNW 3028x4.15⁄16 36053-50 2) LOR 122 138
SAW 23528 SAW 528 23228 CCK/W33 SNW 128x4.15/16 SR 28-0 LOR 122 180
5 3 /16 SAF 22530 SAF 530 22230 CCK/W33 SNW 30x5.3/16 SR 30-0 LOR 125 202
SAF 22630 SAF 630 22330 CCK/W33 SNW 130x5.3/16 SR 36-30 LOR 125 322
SAF 23030 KA x 5.3⁄16 SAF 030 KA x 5.3⁄16 23030 CCK/W33 SNW 3030x5.3⁄16 SR 0-21 2) LOR 125 149
SAW 23530 SAW 530 23230 CCK/W33 SNW 130x5.3/16 SR 30-0 LOR 125 220
5 7 /16 SAF 22532 SAF 532 22232 CCK/W33 SNW 32x5.7/16 SR 32-0 LOR 130 223
SAF 22632 SAF 632 22332 CCK/W33 SNW 132x5.7/16 SR 38-32 LOR 130 401
SAF 23032 KA x 5.7⁄16 SAF 032 KA x 5.7⁄16 23032 CCK/W33 SNW 3032x5.7⁄16 38151-32 2) LOR 130 175
SAW 23532 SAW 532 23232 CCK/W33 SNW 132x5.7/16 SR 32-0 LOR 130 240
5 15 /16 SAF 22534 SAF 534 22234 CCK/W33 SNW 34x5.15/16 SR 34-0 LOR 140 278
SAF 22634 SAF 634 22334 CCK/W33 SNW 134x5.15/16 SR 40-34 LOR 140 510
SAF 23034 KA x 5.15⁄16 SAF 034 KA x 5.15⁄16 23034 CCK/W33 SNW 3034x5.15⁄16 SR 0-24 2) LOR 140 148
SAW 23534 SAW 534 23234 CCK/W33 SNW 134x5.15/16 SR 34-0 LOR 140 297
1) Optional internal radial clearance (e.g. C3) available on request
2) Two stabilizing rings are required, but none are included.
426
