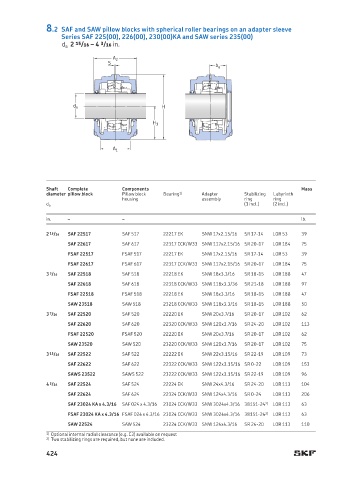

8.2 SAF and SAW pillow blocks with spherical roller bearings on an adapter sleeve
Series SAF 225(00), 226(00), 230(00)KA and SAW series 235(00)
d a 2 15 /16 – 4 3 /16 in.
A 2
S
b a

d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
(1 incl.) (2 incl.)
d a
in. – – Ib.

2 15 /16 SAF 22517 SAF 517 22217 EK SNW 17x2.15/16 SR 17-14 LOR 53 39
SAF 22617 SAF 617 22317 CCK/W33 SNW 117x2.15/16 SR 20-17 LOR 184 75
FSAF 22517 FSAF 517 22217 EK SNW 17x2.15/16 SR 17-14 LOR 53 39
FSAF 22617 FSAF 617 22317 CCK/W33 SNW 117x2.15/16 SR 20-17 LOR 184 75
3 3 /16 SAF 22518 SAF 518 22218 EK SNW 18x3.3/16 SR 18-15 LOR 188 47
SAF 22618 SAF 618 22318 CCK/W33 SNW 118x3.3/36 SR 21-18 LOR 188 97
FSAF 22518 FSAF 518 22218 EK SNW 18x3.3/16 SR 18-15 LOR 188 47
SAW 23518 SAW 518 23218 CCK/W33 SNW 118x3.3/16 SR 18-15 LOR 188 50
3 7 /16 SAF 22520 SAF 520 22220 EK SNW 20x3.7/16 SR 20-17 LOR 102 62
SAF 22620 SAF 620 22320 CCK/W33 SNW 120x3.7/16 SR 24-20 LOR 102 113
FSAF 22520 FSAF 520 22220 EK SNW 20x3.7/16 SR 20-17 LOR 102 62
SAW 23520 SAW 520 23220 CCK/W33 SNW 120x3.7/16 SR 20-17 LOR 102 75
3 15 /16 SAF 22522 SAF 522 22222 EK SNW 22x3.15/16 SR 22-19 LOR 109 73
SAF 22622 SAF 622 22322 CCK/W33 SNW 122x3.15/16 SR 0-22 LOR 109 153
SAWS 23522 SAWS 522 23222 CCK/W33 SNW 122x3.15/16 SR 22-19 LOR 109 96
4 3 /16 SAF 22524 SAF 524 22224 EK SNW 24x4.3/16 SR 24-20 LOR 113 104
SAF 22624 SAF 624 22324 CCK/W33 SNW 124x4.3/16 SR 0-24 LOR 113 206
SAF 23024 KA x 4.3/16 SAF 024 x 4.3/16 23024 CCK/W33 SNW 3024x4.3/16 38151-24 2) LOR 113 63
FSAF 23024 KA x 4.3/16 FSAF 024 x 4.3/16 23024 CCK/W33 SNW 3024x4.3/16 38151-24 2) LOR 113 63
SAW 22524 SAW 524 23224 CCK/W33 SNW 124x4.3/16 SR 24-20 LOR 113 110
1) Optional internal radial clearance (e.g. C3) available on request
2) Two stabilizing rings are required, but none are included.
424
