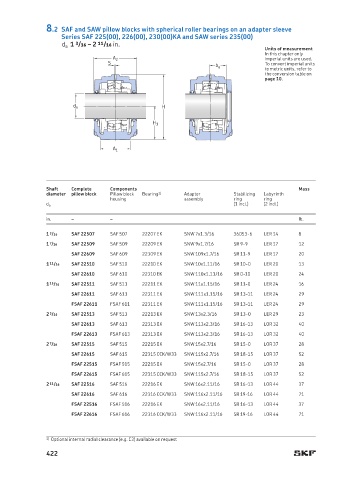

8.2 SAF and SAW pillow blocks with spherical roller bearings on an adapter sleeve
Series SAF 225(00), 226(00), 230(00)KA and SAW series 235(00)
d a 1 3 /16 – 2 11 /16 in.
Units of measurement
In this chapter only
A 2 imperial units are used.
S To convert imperial units
b a
to metric units, refer to
the conversion table on
page 10.
d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter Stabilizing Labyrinth
housing assembly ring ring
(1 incl.) (2 incl.)
d a
in. – – Ib.

1 3 /16 SAF 22507 SAF 507 22207 EK SNW 7x1.3/16 36053-6 LER 14 8
1 7 /16 SAF 22509 SAF 509 22209 EK SNW 9x1.7/16 SR 9-9 LER 17 12
SAF 22609 SAF 609 22309 EK SNW 109x1.7/16 SR 11-9 LER 17 20
1 11 /16 SAF 22510 SAF 510 22210 EK SNW 10x1.11/16 SR 10-0 LER 20 13
SAF 22610 SAF 610 22310 EK SNW 110x1.11/16 SR 0-10 LER 20 24
1 15 /16 SAF 22511 SAF 511 22211 EK SNW 11x1.15/16 SR 11-0 LER 24 16
SAF 22611 SAF 611 22311 EK SNW 111x1.15/16 SR 13-11 LER 24 29
FSAF 22611 FSAF 611 22311 EK SNW 111x1.15/16 SR 13-11 LER 24 29
2 3 /16 SAF 22513 SAF 513 22213 EK SNW 13x2.3/16 SR 13-0 LER 29 23
SAF 22613 SAF 613 22313 EK SNW 113x2.3/16 SR 16-13 LOR 32 40
FSAF 22613 FSAF 613 22313 EK SNW 113x2.3/16 SR 16-13 LOR 32 40
2 7 /16 SAF 22515 SAF 515 22215 EK SNW 15x2.7/16 SR 15-0 LOR 37 28
SAF 22615 SAF 615 22315 CCK/W33 SNW 115x2.7/16 SR 18-15 LOR 37 52
FSAF 22515 FSAF 515 22215 EK SNW 15x2.7/16 SR 15-0 LOR 37 28
FSAF 22615 FSAF 615 22315 CCK/W33 SNW 115x2.7/16 SR 18-15 LOR 37 52
2 11 /16 SAF 22516 SAF 516 22216 EK SNW 16x2.11/16 SR 16-13 LOR 44 37
SAF 22616 SAF 616 22316 CCK/W33 SNW 116x2.11/16 SR 19-16 LOR 44 71
FSAF 22516 FSAF 516 22216 EK SNW 16x2.11/16 SR 16-13 LOR 44 37
FSAF 22616 FSAF 616 22316 CCK/W33 SNW 116x2.11/16 SR 19-16 LOR 44 71

1) Optional internal radial clearance (e.g. C3) available on request
