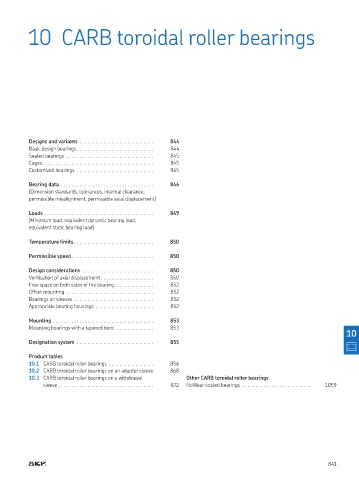

CARB toroidal roller bearings
10 CARB toroidal roller bearings
Designs and variants 844
Basic design bearings 844
Sealed bearings 845
Cages 845
Customized bearings 845
Bearing data 846
(Dimension standards, tolerances, internal clearance,
permissible misalignment, permissible axial displacement)
Loads 849
(Minimum load, equivalent dynamic bearing load,
equivalent static bearing load)
Temperature limits 850
Permissible speed 850
Design considerations 850
Veriication of axial displacement 850
Free space on both sides of the bearing 852
Offset mounting 852
Bearings on sleeves 852
Appropriate bearing housings 852
Mounting 853
Mounting bearings with a tapered bore 853
10
Designation system 855
Product tables
10.1 CARB toroidal roller bearings 856
10.2 CARB toroidal roller bearings on an adapter sleeve 868
10.3 CARB toroidal roller bearings on a withdrawal Other CARB toroidal roller bearings
sleeve 872 NoWear coated bearings 1059
841
