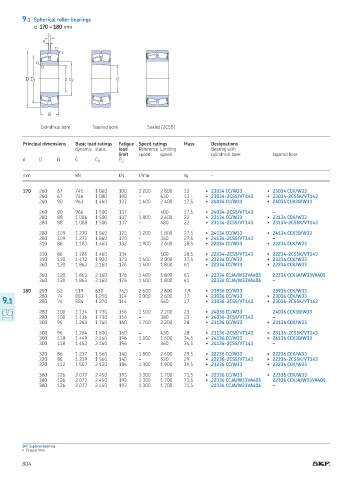

9.1 Spherical roller bearings
d 170 – 180 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

170 260 67 745 1 060 100 2 200 2 800 13 ▶ 23034 CC/W33 ▶ 23034 CCK/W33
260 67 746 1 080 100 – 630 13 ▶ 23034-2CS5/VT143 ▶ 23034-2CS5K/VT143
260 90 963 1 460 137 1 600 2 400 17,5 ▶ 24034 CC/W33 ▶ 24034 CCK30/W33

260 90 966 1 500 137 – 400 17,5 ▶ 24034-2CS5/VT143 –
280 88 1 086 1 500 137 1 800 2 400 22 ▶ 23134 CC/W33 ▶ 23134 CCK/W33
280 88 1 088 1 500 137 – 480 22 ▶ 23134-2CS5/VT143 ▶ 23134-2CS5K/VT143

280 109 1 270 1 860 170 1 200 1 800 27,5 ▶ 24134 CC/W33 ▶ 24134 CCK30/W33
280 109 1 273 1 860 170 – 360 27,5 ▶ 24134-2CS5/VT143 –
310 86 1 183 1 460 132 1 900 2 600 28,5 ▶ 22234 CC/W33 ▶ 22234 CCK/W33

310 86 1 185 1 460 134 – 500 28,5 ▶ 22234-2CS5/VT143 ▶ 22234-2CS5K/VT143
310 110 1 472 1 930 173 1 400 2 000 37,5 ▶ 23234 CC/W33 ▶ 23234 CCK/W33
360 120 1 863 2 160 176 1 400 1 800 61 ▶ 22334 CC/W33 ▶ 22334 CCK/W33
360 120 1 863 2 160 176 1 400 1 800 61 ▶ 22334 CCJA/W33VA405 22334 CCKJA/W33VA405
360 120 1 863 2 160 176 1 400 1 800 61 22334 CCJA/W33VA406 –

180 250 52 519 830 76,5 2 600 2 800 7,9 ▶ 23936 CC/W33 23936 CCK/W33
280 74 883 1 250 114 2 000 2 600 17 ▶ 23036 CC/W33 ▶ 23036 CCK/W33
9.1 280 74 884 1 270 114 – 560 17 ▶ 23036-2CS5/VT143 ▶ 23036-2CS5K/VT143

280 100 1 134 1 730 156 1 500 2 200 23 ▶ 24036 CC/W33 24036 CCK30/W33
280 100 1 136 1 730 156 – 380 23 ▶ 24036-2CS5/VT143 –
300 96 1 263 1 760 160 1 700 2 200 28 ▶ 23136 CC/W33 ▶ 23136 CCK/W33

300 96 1 264 1 800 160 – 430 28 ▶ 23136-2CS5/VT143 ▶ 23136-2CS5K/VT143
300 118 1 449 2 160 196 1 100 1 600 34,5 ▶ 24136 CC/W33 ▶ 24136 CCK30/W33
300 118 1 452 2 160 196 – 360 34,5 ▶ 24136-2CS5/VT143 –

320 86 1 237 1 560 140 1 800 2 600 29,5 ▶ 22236 CC/W33 ▶ 22236 CCK/W33
320 86 1 239 1 560 140 – 530 29 ▶ 22236-2CS5/VT143 ▶ 22236-2CS5K/VT143
320 112 1 557 2 120 186 1 300 1 900 39,5 ▶ 23236 CC/W33 ▶ 23236 CCK/W33

380 126 2 077 2 450 193 1 300 1 700 71,5 ▶ 22336 CC/W33 ▶ 22336 CCK/W33
380 126 2 077 2 450 193 1 300 1 700 71,5 ▶ 22336 CCJA/W33VA405 22336 CCKJA/W33VA405
380 126 2 077 2 450 193 1 300 1 700 71,5 22336 CCJA/W33VA406 –

SKF Explorer bearing
▶ Popular item
