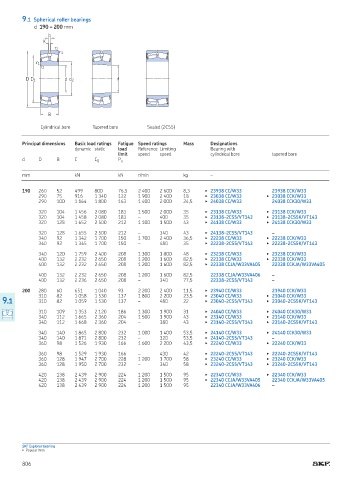

9.1 Spherical roller bearings
d 190 – 200 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

190 260 52 499 800 76,5 2 400 2 600 8,3 ▶ 23938 CC/W33 23938 CCK/W33
290 75 916 1 340 122 1 900 2 400 18 ▶ 23038 CC/W33 ▶ 23038 CCK/W33
290 100 1 164 1 800 163 1 400 2 000 24,5 ▶ 24038 CC/W33 24038 CCK30/W33

320 104 1 456 2 080 183 1 500 2 000 35 ▶ 23138 CC/W33 ▶ 23138 CCK/W33
320 104 1 458 2 080 183 – 400 35 ▶ 23138-2CS5/VT143 ▶ 23138-2CS5K/VT143
320 128 1 652 2 500 212 1 100 1 500 43 ▶ 24138 CC/W33 ▶ 24138 CCK30/W33

320 128 1 655 2 500 212 – 340 43 ▶ 24138-2CS5/VT143 –
340 92 1 342 1 700 150 1 700 2 400 36,5 ▶ 22238 CC/W33 ▶ 22238 CCK/W33
340 92 1 345 1 700 150 – 480 35 ▶ 22238-2CS5/VT143 ▶ 22238-2CS5K/VT143

340 120 1 759 2 400 208 1 300 1 800 48 ▶ 23238 CC/W33 ▶ 23238 CCK/W33
400 132 2 232 2 650 208 1 200 1 600 82,5 ▶ 22338 CC/W33 ▶ 22338 CCK/W33
400 132 2 232 2 650 208 1 200 1 600 82,5 ▶ 22338 CCJA/W33VA405 22338 CCKJA/W33VA405
400 132 2 232 2 650 208 1 200 1 600 82,5 22338 CCJA/W33VA406 –
400 132 2 236 2 650 208 – 340 77,5 22338-2CS5/VT143 –

200 280 60 651 1 040 93 2 200 2 400 11,5 ▶ 23940 CC/W33 23940 CCK/W33
310 82 1 058 1 530 137 1 800 2 200 23,5 ▶ 23040 CC/W33 ▶ 23040 CCK/W33
9.1 310 82 1 059 1 530 137 – 480 22 ▶ 23040-2CS5/VT143 ▶ 23040-2CS5K/VT143

310 109 1 353 2 120 186 1 300 1 900 31 ▶ 24040 CC/W33 ▶ 24040 CCK30/W33
340 112 1 665 2 360 204 1 500 1 900 43 ▶ 23140 CC/W33 ▶ 23140 CCK/W33
340 112 1 668 2 360 204 – 380 43 ▶ 23140-2CS5/VT143 ▶ 23140-2CS5K/VT143

340 140 1 865 2 800 232 1 000 1 400 53,5 ▶ 24140 CC/W33 ▶ 24140 CCK30/W33
340 140 1 871 2 800 232 – 320 53,5 ▶ 24140-2CS5/VT143 –
360 98 1 526 1 930 166 1 600 2 200 43,5 ▶ 22240 CC/W33 ▶ 22240 CCK/W33

360 98 1 529 1 930 166 – 430 42 ▶ 22240-2CS5/VT143 ▶ 22240-2CS5K/VT143
360 128 1 947 2 700 228 1 200 1 700 58 ▶ 23240 CC/W33 ▶ 23240 CCK/W33
360 128 1 950 2 700 232 – 340 58 ▶ 23240-2CS5/VT143 ▶ 23240-2CS5K/VT143

420 138 2 439 2 900 224 1 200 1 500 95 ▶ 22340 CC/W33 ▶ 22340 CCK/W33
420 138 2 439 2 900 224 1 200 1 500 95 ▶ 22340 CCJA/W33VA405 22340 CCKJA/W33VA405
420 138 2 439 2 900 224 1 200 1 500 95 22340 CCJA/W33VA406 –

SKF Explorer bearing
▶ Popular item
