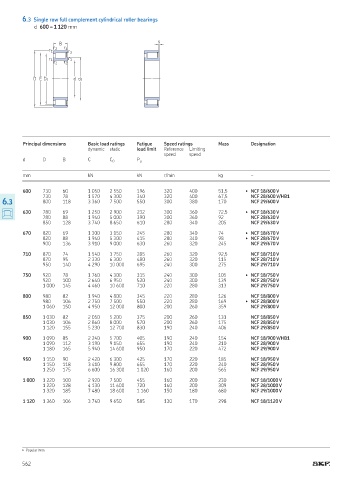

6.3 Single row full complement cylindrical roller bearings
d 600 – 1 120 mm

s
B
r 2 r 4
r 1 r 3
r 1 r 1
r 2 r 2

D E D 1 d d 1

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D B C C 0 P u

mm kN kN r/min kg –

600 730 60 1 050 2 550 196 320 400 51,5 ▶ NCF 18/600 V
730 78 1 570 4 300 340 320 400 67,5 NCF 28/600 V/HB1
6.3 800 118 3 360 7 500 550 300 380 170 NCF 29/600 V

630 780 69 1 250 2 900 232 300 360 72,5 ▶ NCF 18/630 V
780 88 1 940 5 000 390 300 360 92 NCF 28/630 V
850 128 3 740 8 650 610 280 340 205 NCF 29/630 V

670 820 69 1 300 3 150 245 280 340 74 ▶ NCF 18/670 V
820 88 1 940 5 300 415 280 340 98 ▶ NCF 28/670 V
900 136 3 910 9 000 630 260 320 245 NCF 29/670 V

710 870 74 1 540 3 750 285 260 320 92,5 NCF 18/710 V
870 95 2 330 6 300 480 260 320 115 NCF 28/710 V
950 140 4 290 10 000 695 240 300 275 NCF 29/710 V

750 920 78 1 760 4 300 315 240 300 105 ▶ NCF 18/750 V
920 100 2 640 6 950 520 240 300 139 NCF 28/750 V
1 000 145 4 460 10 600 710 220 280 313 NCF 29/750 V

800 980 82 1 940 4 800 345 220 280 126 NCF 18/800 V
980 106 2 750 7 500 550 220 280 169 ▶ NCF 28/800 V
1 060 150 4 950 12 000 800 200 260 359 NCF 29/800 V

850 1 030 82 2 050 5 200 375 200 260 131 NCF 18/850 V
1 030 106 2 860 8 000 570 200 260 175 NCF 28/850 V
1 120 155 5 230 12 700 830 190 240 406 NCF 29/850 V

900 1 090 85 2 240 5 700 405 190 240 154 NCF 18/900 V/HB1
1 090 112 3 190 9 150 655 190 240 210 NCF 28/900 V
1 180 165 5 940 14 600 950 170 220 472 NCF 29/900 V

950 1 150 90 2 420 6 300 425 170 220 185 NCF 18/950 V
1 150 118 3 410 9 800 655 170 220 240 NCF 28/950 V
1 250 175 6 600 16 300 1 020 160 200 565 NCF 29/950 V

1 000 1 220 100 2 920 7 500 455 160 200 230 NCF 18/1000 V
1 220 128 4 130 11 600 720 160 200 309 NCF 28/1000 V
1 320 185 7 480 18 600 1 160 150 180 680 NCF 29/1000 V

1 120 1 360 106 3 740 9 650 585 130 170 298 NCF 18/1120 V

▶ Popular item
