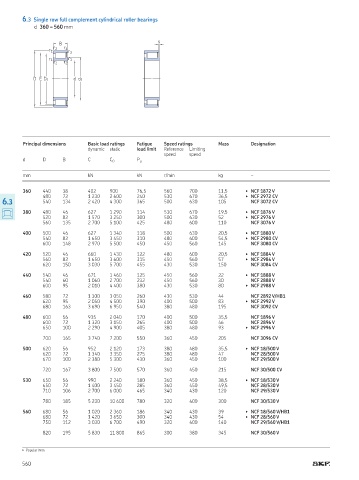

6.3 Single row full complement cylindrical roller bearings
d 360 – 560 mm

s
B
r 2 r 4
r 1 r 3
r 1 r 1
r 2 r 2

D E D 1 d d 1

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D B C C 0 P u

mm kN kN r/min kg –

360 440 38 402 900 76,5 560 700 11,5 ▶ NCF 1872 V
480 72 1 230 2 600 240 530 670 36,5 ▶ NCF 2972 CV
6.3 540 134 2 420 4 300 365 500 630 105 NCF 3072 CV

380 480 46 627 1 290 114 530 670 19,5 ▶ NCF 1876 V
520 82 1 570 3 250 300 500 630 52 ▶ NCF 2976 V
560 135 2 700 5 100 425 480 600 110 NCF 3076 V

400 500 46 627 1 340 118 500 630 20,5 ▶ NCF 1880 V
540 82 1 650 3 450 310 480 600 54,5 ▶ NCF 2980 CV
600 148 2 970 5 500 450 450 560 145 NCF 3080 CV

420 520 46 660 1 430 122 480 600 20,5 ▶ NCF 1884 V
560 82 1 650 3 600 315 450 560 57 ▶ NCF 2984 V
620 150 3 030 5 700 455 430 530 150 NCF 3084 CV

440 540 46 671 1 460 125 450 560 22 ▶ NCF 1888 V
540 60 1 060 2 700 232 450 560 30 NCF 2888 V
600 95 2 010 4 400 380 430 530 80 ▶ NCF 2988 V

460 580 72 1 300 3 050 260 430 530 44 NCF 2892 V/HB1
620 95 2 050 4 500 390 400 500 83 ▶ NCF 2992 V
680 163 3 690 6 950 540 380 480 195 NCF 3092 CV

480 600 56 935 2 040 170 400 500 35,5 NCF 1896 V
600 72 1 320 3 150 265 400 500 46 NCF 2896 V
650 100 2 290 4 900 405 380 480 93 ▶ NCF 2996 V

700 165 3 740 7 200 550 360 450 205 NCF 3096 CV

500 620 56 952 2 120 173 380 480 35,5 ▶ NCF 18/500 V
620 72 1 340 3 350 275 380 480 47 NCF 28/500 V
670 100 2 380 5 300 430 360 450 100 NCF 29/500 V

720 167 3 800 7 500 570 360 450 215 NCF 30/500 CV

530 650 56 990 2 240 180 360 450 38,5 ▶ NCF 18/530 V
650 72 1 400 3 450 285 360 450 49,5 NCF 28/530 V
710 106 2 700 6 000 465 340 430 120 NCF 29/530 V

780 185 5 230 10 600 780 320 400 300 NCF 30/530 V

560 680 56 1 020 2 360 186 340 430 39 ▶ NCF 18/560 V/HB1
680 72 1 420 3 650 300 340 430 54 ▶ NCF 28/560 V
750 112 3 030 6 700 490 320 400 140 NCF 29/560 V/HB1

820 195 5 830 11 800 865 300 380 345 NCF 30/560 V
