Withdrawal sleeves

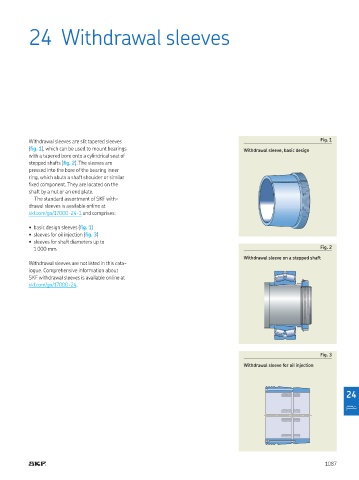

24 Withdrawal sleeves

Withdrawal sleeves are slit tapered sleeves Fig. 1
(ig. 1), which can be used to mount bearings Withdrawal sleeve, basic design
with a tapered bore onto a cylindrical seat of
stepped shafts (ig. 2) The sleeves are
pressed into the bore of the bearing inner
ring, which abuts a shaft shoulder or similar
ixed component They are located on the
shaft by a nut or an end plate
The standard assortment of SKF with-
drawal sleeves is available online at
skf com/go/17000-24-1 and comprises:
• basic design sleeves (ig. 1)
• sleeves for oil injection (ig. 3)
• sleeves for shaft diameters up to
1 000 mm Fig. 2
Withdrawal sleeve on a stepped shaft
Withdrawal sleeves are not listed in this cata-
logue. Comprehensive information about
SKF withdrawal sleeves is available online at
skf.com/go/17000-24.

Fig. 3
Withdrawal sleeve for oil injection
