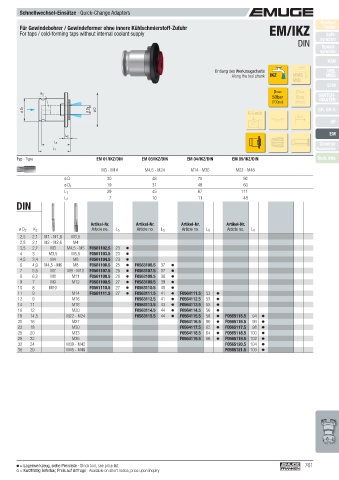

Page 761 - EMUGE

Schnellwechsel-Einsätze · Quick-Change Adapters
Product
Für Gewindebohrer / Gewindeformer ohne innere Kühlschmierstoff-Zufuhr EM/IKZ Finder
For taps / cold-forming taps without internal coolant supply Soft-
DIN synchro
Speed-
synchro
KSN
Entlang des Werkzeugschafts MQL
Along the tool shank IKZ MMS MMS
MQL
SFM
pmax pmax
K 2 SWITCH-
50bar 6bar MASTER
(700psi) (85psi)
ø D 1 ø D 2 ø D GR, GR-S
E-Lock
L+
HF

EM
L 2
L 5 Zubehör
L 1 Accessories
Typ · Type EM 01/IKZ/DIN EM 03/IKZ/DIN EM 04/IKZ/DIN EM 05/IKZ/DIN Tech. Info

M3 - M14 M4,5 - M24 M14 - M36 M22 - M48
ø D 30 48 70 92
ø D 1 19 31 48 60
L 1 29 45 67 111
L 2 7 10 11 48
DIN

Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L 5 Article no. L 5 Article no. L 5 Article no. L 5
2,5 2,1 M1 - M1,8 M3,5
2,8 2,1 M2 - M2,6 M4
3,5 2,7 M3 M4,5 - M5 F0561102.5 23
4 3 M3,5 M5,5 F0561103.5 23
4,5 3,4 M4 M6 F0561104.5 23
6 4,9 M4,5 - M6 M8 F0561106.5 25 F0563106.5 37
7 5,5 M7 M9 - M10 F0561107.5 25 F0563107.5 37
8 6,2 M8 M11 F0561108.5 26 F0563108.5 38
9 7 M9 M12 F0561109.5 27 F0563109.5 39
10 8 M10 F0561110.5 27 F0563110.5 40
11 9 M14 F0561111.5 27 F0563111.5 41 F0564111.5 53
12 9 M16 F0563112.5 41 F0564112.5 53
14 11 M18 F0563113.5 43 F0564113.5 55
16 12 M20 F0563114.5 44 F0564114.5 56
18 14,5 M22 - M24 F0563115.5 44 F0564115.5 58 F0565115.5 94
20 16 M27 F0564116.5 60 F0565116.5 96
22 18 M30 F0564117.5 62 F0565117.5 98
25 20 M33 F0564118.5 64 F0565118.5 100
28 22 M36 F0564119.5 66 F0565119.5 102
32 24 M39 - M42 F0565120.5 104
36 29 M45 - M48 F0565121.5 109

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 761
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
