Mounting

Mounting

SKF housings for paper machines must be
mounted properly by experienced, knowledge-
able people using the correct tools.
SBFN housings can be mounted at angles of
0°, 90°, 180° and 270°. To prevent oil leakage,
the arrow on the cover should always point
upward.
For SBFN and SBPN housings, the interface
between the housing and covers should be
coated with an oil-resistant sealant.
SBPN and SDM housings should be mounted
so that the oil outlets with the plastic plugs are
facing outward.
For additional information, contact the SKF
application engineering service. SKF can also
assist during mounting or provide a complete
installation service

Eye bolts and lifting holes
SBFN and SBPN housings are supplied with
an eye bolt on top. SDM housings have two
flanges on the cap with a cast hole in each
(† fig. 14).

Cap bolt torque specifications
Cap bolts should be tightened to the recom-
mended torque values listed in table 4 on
page 601).

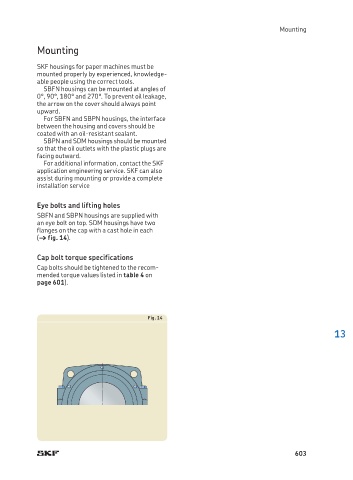

Fig. 14
