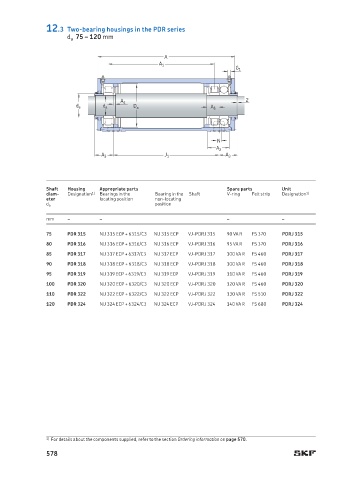

12.3 Two-bearing housings in the PDR series
d a 75 – 120 mm

A
A 1
G 1

2
A 4
d e d a D a A 5

N
A 2
A 3 J 1 A 3

Shaft Housing Appropriate parts Spare parts Unit
diam - Designation 1) Bearings in the Bearing in the Shaft V-ring Felt strip Designation 1)
eter locating position non-locating
position
d a
mm – – – –
75 PDR 315 NU 315 ECP + 6315/C3 NU 315 ECP VJ-PDRJ 315 90 VA R FS 370 PDRJ 315
80 PDR 316 NU 316 ECP + 6316/C3 NU 316 ECP VJ-PDRJ 316 95 VA R FS 370 PDRJ 316
85 PDR 317 NU 317 ECP + 6317/C3 NU 317 ECP VJ-PDRJ 317 100 VA R FS 460 PDRJ 317
90 PDR 318 NU 318 ECP + 6318/C3 NU 318 ECP VJ-PDRJ 318 100 VA R FS 460 PDRJ 318
95 PDR 319 NU 319 ECP + 6319/C3 NU 319 ECP VJ-PDRJ 319 110 VA R FS 460 PDRJ 319
100 PDR 320 NU 320 ECP + 6320/C3 NU 320 ECP VJ-PDRJ 320 120 VA R FS 460 PDRJ 320
110 PDR 322 NU 322 ECP + 6322/C3 NU 322 ECP VJ-PDRJ 322 130 VA R FS 510 PDRJ 322
120 PDR 324 NU 324 ECP + 6324/C3 NU 324 ECP VJ-PDRJ 324 140 VA R FS 680 PDRJ 324

1) For details about the components supplied, refer to the section Ordering information on page 570.
