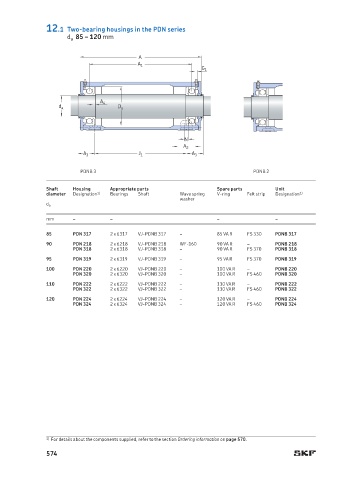

12.1 Two-bearing housings in the PDN series
d a 85 – 120 mm

A
A 1
G 1

A 4
d a D a

N
A 2
A 3 J 1 A 3
PDNB 3 PDNB 2

Shaft Housing Appropriate parts Spare parts Unit
diameter Designation 1) Bearings Shaft Wave spring V-ring Felt strip Designation 1)
washer
d a
mm – – – –
85 PDN 317 2 x 6317 VJ-PDNB 317 – 85 VA R FS 330 PDNB 317
90 PDN 218 2 x 6218 VJ-PDNB 218 WF-160 90 VA R – PDNB 218
PDN 318 2 x 6318 VJ-PDNB 318 – 90 VA R FS 370 PDNB 318
95 PDN 319 2 x 6319 VJ-PDNB 319 – 95 VA R FS 370 PDNB 319
100 PDN 220 2 x 6220 VJ-PDNB 220 – 100 VA R – PDNB 220
PDN 320 2 x 6320 VJ-PDNB 320 – 100 VA R FS 460 PDNB 320
110 PDN 222 2 x 6222 VJ-PDNB 222 – 110 VA R – PDNB 222
PDN 322 2 x 6322 VJ-PDNB 322 – 110 VA R FS 460 PDNB 322
120 PDN 224 2 x 6224 VJ-PDNB 224 – 120 VA R – PDNB 224
PDN 324 2 x 6324 VJ-PDNB 324 – 120 VA R FS 460 PDNB 324

1) For details about the components supplied, refer to the section Ordering information on page 570.
