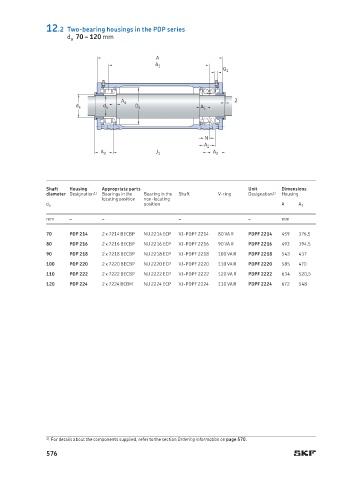

12.2 Two-bearing housings in the PDP series
d a 70 – 120 mm

A
A 1
G 1

2
A 4
d e d a D a A 5

N
A 2
A 3 J 1 A 3

Shaft Housing Appropriate parts Unit Dimensions
diameter Designation 1) Bearings in the Bearing in the Shaft V-ring Designation 1) Housing
locating position non-locating
position A
d a A 1
mm – – – – mm
70 PDP 214 2 x 7214 BECBP NU 2214 ECP VJ-PDPF 2214 80 VA R PDPF 2214 459 376,5
80 PDP 216 2 x 7216 BECBP NU 2216 ECP VJ-PDPF 2216 90 VA R PDPF 2216 493 394,5
90 PDP 218 2 x 7218 BECBP NU 2218 ECP VJ-PDPF 2218 100 VA R PDPF 2218 543 437
100 PDP 220 2 x 7220 BECBP NU 2220 ECP VJ-PDPF 2220 110 VA R PDPF 2220 585 470
110 PDP 222 2 x 7222 BECBP NU 2222 ECP VJ-PDPF 2222 120 VA R PDPF 2222 634 520,5
120 PDP 224 2 x 7224 BCBM NU 2224 ECP VJ-PDPF 2224 130 VA R PDPF 2224 672 548

1) For details about the components supplied, refer to the section Ordering information on page 570.
