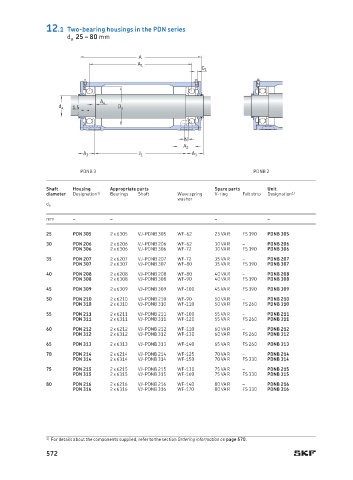

12.1 Two-bearing housings in the PDN series
d a 25 – 80 mm

A
A 1
G 1

A 4
d a 1,5 D a

N
A 2
A 3 J 1 A 3
PDNB 3 PDNB 2

Shaft Housing Appropriate parts Spare parts Unit
diameter Designation 1) Bearings Shaft Wave spring V-ring Felt strip Designation 1)
washer
d a
mm – – – –
25 PDN 305 2 x 6305 VJ-PDNB 305 WF-62 25 VA R FS 190 PDNB 305
30 PDN 206 2 x 6206 VJ-PDNB 206 WF-62 30 VA R – PDNB 206
PDN 306 2 x 6306 VJ-PDNB 306 WF-72 30 VA R FS 190 PDNB 306
35 PDN 207 2 x 6207 VJ-PDNB 207 WF-72 35 VA R – PDNB 207
PDN 307 2 x 6307 VJ-PDNB 307 WF-80 35 VA R FS 190 PDNB 307
40 PDN 208 2 x 6208 VJ-PDNB 208 WF-80 40 VA R – PDNB 208
PDN 308 2 x 6308 VJ-PDNB 308 WF-90 40 VA R FS 190 PDNB 308
45 PDN 309 2 x 6309 VJ-PDNB 309 WF-100 45 VA R FS 190 PDNB 309
50 PDN 210 2 x 6210 VJ-PDNB 210 WF-90 50 VA R – PDNB 210
PDN 310 2 x 6310 VJ-PDNB 310 WF-110 50 VA R FS 260 PDNB 310
55 PDN 211 2 x 6211 VJ-PDNB 211 WF-100 55 VA R – PDNB 211
PDN 311 2 x 6311 VJ-PDNB 311 WF-120 55 VA R FS 260 PDNB 311
60 PDN 212 2 x 6212 VJ-PDNB 212 WF-110 60 VA R – PDNB 212
PDN 312 2 x 6312 VJ-PDNB 312 WF-130 60 VA R FS 260 PDNB 312
65 PDN 313 2 x 6313 VJ-PDNB 313 WF-140 65 VA R FS 260 PDNB 313
70 PDN 214 2 x 6214 VJ-PDNB 214 WF-125 70 VA R – PDNB 214
PDN 314 2 x 6314 VJ-PDNB 314 WF-150 70 VA R FS 330 PDNB 314
75 PDN 215 2 x 6215 VJ-PDNB 215 WF-130 75 VA R – PDNB 215
PDN 315 2 x 6315 VJ-PDNB 315 WF-160 75 VA R FS 330 PDNB 315
80 PDN 216 2 x 6216 VJ-PDNB 216 WF-140 80 VA R – PDNB 216
PDN 316 2 x 6316 VJ-PDNB 316 WF-170 80 VA R FS 330 PDNB 316

1) For details about the components supplied, refer to the section Ordering information on page 570.
