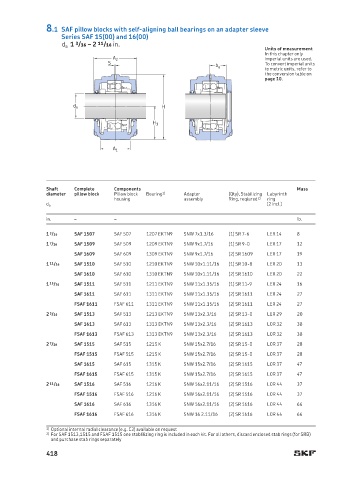

8.1 SAF pillow blocks with self-aligning ball bearings on an adapter sleeve
Series SAF 15(00) and 16(00)
d a 1 3 /16 – 2 11 /16 in.
Units of measurement
In this chapter only
A 2 imperial units are used.
S To convert imperial units
b a
to metric units, refer to
the conversion table on
page 10.
d a H

H 1

A 1

Shaft Complete Components Mass
diam eter pillow block Pillow block Bearing 1) Adapter (Qty), Stabilizing Labyrinth
housing assembly Ring, reqiured 2) ring
(2 incl.)
d a
in. – – Ib.

1 3 /16 SAF 1507 SAF 507 1207 EKTN9 SNW 7x1.3/16 (1) SR 7-6 LER 14 8
1 7 /16 SAF 1509 SAF 509 1209 EKTN9 SNW 9x1.7/16 (1) SR 9-0 LER 17 12
SAF 1609 SAF 609 1309 EKTN9 SNW 9x1.7/16 (2) SR 1609 LER 17 19
1 11 /16 SAF 1510 SAF 510 1210 EKTN9 SNW 10x1.11/16 (1) SR 10-8 LER 20 13
SAF 1610 SAF 610 1310 EKTN9 SNW 10x1.11/16 (2) SR 1610 LER 20 22
1 15 /16 SAF 1511 SAF 511 1211 EKTN9 SNW 11x1.15/16 (1) SR 11-9 LER 24 16
SAF 1611 SAF 611 1311 EKTN9 SNW 11x1.15/16 (2) SR 1611 LER 24 27
FSAF 1611 FSAF 611 1311 EKTN9 SNW 11x1.15/16 (2) SR 1611 LER 24 27
2 3 /16 SAF 1513 SAF 513 1213 EKTN9 SNW 13x2.3/16 (2) SR 13-0 LER 29 20
SAF 1613 SAF 613 1313 EKTN9 SNW 13x2.3/16 (2) SR 1613 LOR 32 38
FSAF 1613 FSAF 613 1313 EKTN9 SNW 13x2.3/16 (2) SR 1613 LOR 32 38
2 7 /16 SAF 1515 SAF 515 1215 K SNW 15x2.7/16 (2) SR 15-0 LOR 37 28
FSAF 1515 FSAF 515 1215 K SNW 15x2.7/16 (2) SR 15-0 LOR 37 28
SAF 1615 SAF 615 1315 K SNW 15x2.7/16 (2) SR 1615 LOR 37 47
FSAF 1615 FSAF 615 1315 K SNW 15x2.7/16 (2) SR 1615 LOR 37 47
2 11 /16 SAF 1516 SAF 516 1216 K SNW 16x2.11/16 (2) SR 1516 LOR 44 37
FSAF 1516 FSAF 516 1216 K SNW 16x2.11/16 (2) SR 1516 LOR 44 37
SAF 1616 SAF 616 1316 K SNW 16x2.11/16 (2) SR 1616 LOR 44 66
FSAF 1616 FSAF 616 1316 K SNW 16 2.11/16 (2) SR 1616 LOR 44 66

1) Optional internal radial clearance (e.g. C3) available on request
2) For SAF 1513,1515 and FSAF 1515 one stablilizing ring is included in each kit. For all others, discard enclosed stab rings (for SRB)
and purchase stab rings separately
418
