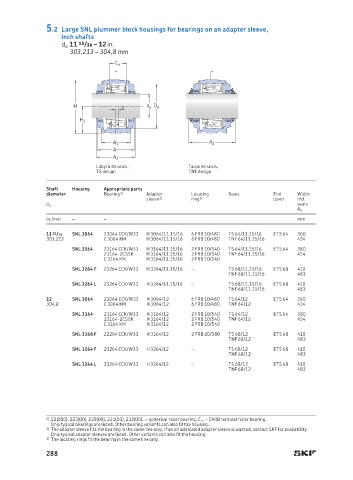

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 11 15 /16 – 12 in.
303,213 – 304,8 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
11 15 /16 SNL 3064 23064 CCK/W33 H 3064/11.15/16 6 FRB 10/480 TS 64/11.15/16 ETS 64 360
303,213 C 3064 KM H 3064/11.15/16 6 FRB 10/480 TNF 64/11.15/16 434
SNL 3164 23164 CCK/W33 H 3164/11.15/16 2 FRB 10/540 TS 64/11.15/16 ETS 64 380
23164-2CS5K H 3164/11.15/16 2 FRB 10/540 TNF 64/11.15/16 454
C 3164 KM H 3164/11.15/16 2 FRB 10/540
SNL 3264 F 23264 CCK/W33 H 3264/11.15/16 – TS 68/11.15/16 ETS 68 410
TNF 68/11.15/16 483
SNL 3264 L 23264 CCK/W33 H 3264/11.15/16 – TS 68/11.15/16 ETS 68 410
TNF 68/11.15/16 483
12 SNL 3064 23064 CCK/W33 H 3 064/12 6 FRB 10/480 TS 64/12 ETS 64 360
304,8 C 3064 KM H 3 064/12 6 FRB 10/480 TNF 64/12 434
SNL 3164 23164 CCK/W33 H 3 164/12 2 FRB 10/540 TS 64/12 ETS 64 380
23164-2CS5K H 3 164/12 2 FRB 10/540 TNF 64/12 454
C 3164 KM H 3 164/12 2 FRB 10/540
SNL 3168 F 22264 CCK/W33 H 3 164/12 2 FRB 20/580 TS 68/12 ETS 68 410
TNF 68/12 483
SNL 3264 F 23264 CCK/W33 H 3 264/12 – TS 68/12 ETS 68 410
TNF 68/12 483
SNL 3264 L 23264 CCK/W33 H 3 264/12 – TS 68/12 ETS 68 410
TNF 68/12 483

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
