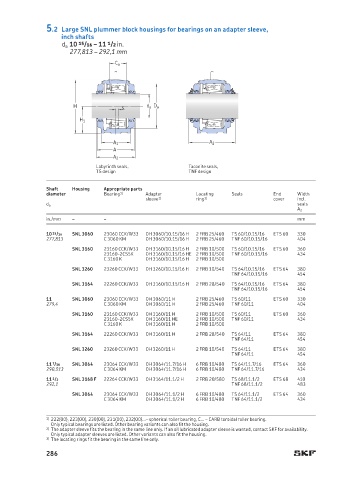

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 10 15 /16 – 11 1 /2 in.
277,813 – 292,1 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
10 15 /16 SNL 3060 23060 CCK/W33 OH 3 060/10.15/16 H 2 FRB 25/460 TS 60/10.15/16 ETS 60 330
277,813 C 3060 KM OH 3060/10.15/16 H 2 FRB 25/460 TNF 60/10.15/16 404
SNL 3160 23160 CCK/W33 OH 3160/10.15/16 H 2 FRB 10/500 TS 60/10.15/16 ETS 60 360
23160-2CS5K OH 3160/10.15/16 HE 2 FRB 10/500 TNF 60/10.15/16 434
C 3160 K OH 3160/10.15/16 H 2 FRB 10/500
SNL 3260 23260 CCK/W33 OH 3260/10.15/16 H 2 FRB 10/540 TS 64/10.15/16 ETS 64 380
TNF 64/10.15/16 454
SNL 3164 22260 CCK/W33 OH 3160/10.15/16 H 2 FRB 28/540 TS 64/10.15/16 ETS 64 380
TNF 64/10.15/16 454
11 SNL 3060 23060 CCK/W33 OH 3060/11 H 2 FRB 25/460 TS 60/11 ETS 60 330
279,4 C 3060 KM OH 3060/11 H 2 FRB 25/460 TNF 60/11 404
SNL 3160 23160 CCK/W33 OH 3160/11 H 2 FRB 10/500 TS 60/11 ETS 60 360
23160-2CS5K OH 3160/11 HE 2 FRB 10/500 TNF 60/11 434
C 3160 K OH 3160/11 H 2 FRB 10/500
SNL 3164 22260 CCK/W33 OH 3160/11 H 2 FRB 28/540 TS 64/11 ETS 64 380
TNF 64/11 454
SNL 3260 23260 CCK/W33 OH 3260/11 H 2 FRB 10/540 TS 64/11 ETS 64 380
TNF 64/11 454
11 7 /16 SNL 3064 23064 CCK/W33 OH 3064/11.7/16 H 6 FRB 10/480 TS 64/11.7/16 ETS 64 360
290,513 C 3064 KM OH 3064/11.7/16 H 6 FRB 10/480 TNF 64/11.7/16 434
11 1 /2 SNL 3168 F 22264 CCK/W33 OH 3164/11.1/2 H 2 FRB 20/580 TS 68/11.1/2 ETS 68 410
292,1 TNF 68/11.1/2 483
SNL 3064 23064 CCK/W33 OH 3064/11.1/2 H 6 FRB 10/480 TS 64/11.1/2 ETS 64 360
C 3064 KM OH 3064/11.1/2 H 6 FRB 10/480 TNF 64/11.1/2 434

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
286
