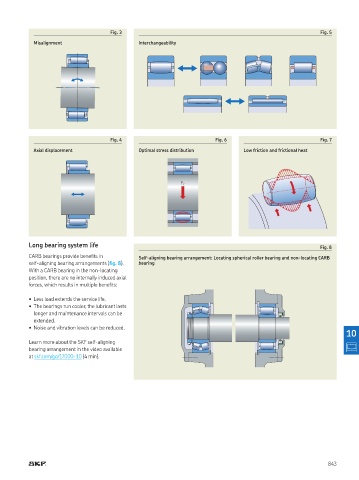

Fig. 3 Fig. 5
Misalignment Interchangeability

Fig. 4 Fig. 6 Fig. 7

Axial displacement Optimal stress distribution Low friction and frictional heat

F r

Long bearing system life Fig. 8
CARB bearings provide beneits in Self-aligning bearing arrangement: Locating spherical roller bearing and non-locating CARB
self-aligning bearing arrangements (ig. 8). bearing
With a CARB bearing in the non-locating
position, there are no internally induced axial
forces, which results in multiple beneits:

• Less load extends the service life.
• The bearings run cooler, the lubricant lasts
longer and maintenance intervals can be
extended.
• Noise and vibration levels can be reduced.
10
Learn more about the SKF self-aligning
bearing arrangement in the video available
at skf.com/go/17000-10 (4 min).
