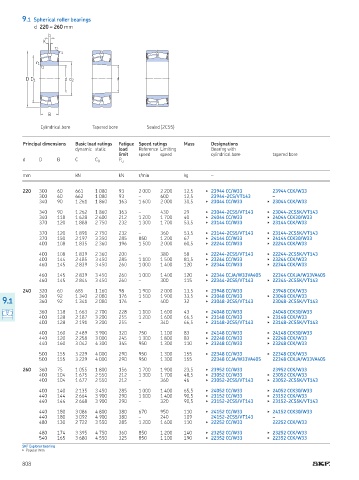

Page 810 - Rollingbearings

9.1 Spherical roller bearings
d 220 – 260 mm
b
K
r 2
r 1
r 1
r 2
D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

220 300 60 661 1 080 93 2 000 2 200 12,5 ▶ 23944 CC/W33 23944 CCK/W33
300 60 662 1 080 93 – 600 12,5 23944-2CS/VT143 –
340 90 1 261 1 860 163 1 600 2 000 30,5 ▶ 23044 CC/W33 ▶ 23044 CCK/W33

340 90 1 262 1 860 163 – 430 29 ▶ 23044-2CS5/VT143 ▶ 23044-2CS5K/VT143
340 118 1 628 2 600 212 1 200 1 700 40 ▶ 24044 CC/W33 ▶ 24044 CCK30/W33
370 120 1 888 2 750 232 1 300 1 700 53,5 ▶ 23144 CC/W33 ▶ 23144 CCK/W33

370 120 1 891 2 750 232 – 360 53,5 ▶ 23144-2CS5/VT143 ▶ 23144-2CS5K/VT143
370 150 2 197 3 350 285 850 1 200 67 ▶ 24144 CC/W33 ▶ 24144 CCK30/W33
400 108 1 835 2 360 196 1 500 2 000 60,5 ▶ 22244 CC/W33 ▶ 22244 CCK/W33

400 108 1 839 2 360 200 – 380 58 ▶ 22244-2CS5/VT143 ▶ 22244-2CS5K/VT143
400 144 2 485 3 450 285 1 100 1 500 81,5 ▶ 23244 CC/W33 ▶ 23244 CCK/W33
460 145 2 839 3 450 260 1 000 1 400 120 ▶ 22344 CC/W33 ▶ 22344 CCK/W33

460 145 2 839 3 450 260 1 000 1 400 120 ▶ 22344 CCJA/W33VA405 22344 CCKJA/W33VA405
460 145 2 844 3 450 260 – 300 115 ▶ 22344-2CS5/VT143 ▶ 22344-2CS5K/VT143

240 320 60 685 1 160 98 1 900 2 000 13,5 ▶ 23948 CC/W33 23948 CCK/W33
360 92 1 340 2 080 176 1 500 1 900 33,5 ▶ 23048 CC/W33 ▶ 23048 CCK/W33
9.1 360 92 1 341 2 080 176 – 400 32 ▶ 23048-2CS5/VT143 23048-2CS5K/VT143

360 118 1 663 2 700 228 1 100 1 600 43 ▶ 24048 CC/W33 24048 CCK30/W33
400 128 2 187 3 200 255 1 200 1 600 66,5 ▶ 23148 CC/W33 ▶ 23148 CCK/W33
400 128 2 191 3 200 255 – 340 66,5 ▶ 23148-2CS5/VT143 ▶ 23148-2CS5K/VT143

400 160 2 489 3 900 320 750 1 100 83 ▶ 24148 CC/W33 ▶ 24148 CCK30/W33
440 120 2 258 3 000 245 1 300 1 800 83 ▶ 22248 CC/W33 ▶ 22248 CCK/W33
440 160 3 042 4 300 345 950 1 300 110 ▶ 23248 CC/W33 ▶ 23248 CCK/W33

500 155 3 229 4 000 290 950 1 300 155 ▶ 22348 CC/W33 ▶ 22348 CCK/W33
500 155 3 229 4 000 290 950 1 300 155 22348 CCJA/W33VA405 22348 CCKJA/W33VA405

260 360 75 1 055 1 800 156 1 700 1 900 23,5 ▶ 23952 CC/W33 23952 CCK/W33
400 104 1 675 2 550 212 1 300 1 700 48,5 ▶ 23052 CC/W33 ▶ 23052 CCK/W33
400 104 1 677 2 550 212 – 360 46 ▶ 23052-2CS5/VT143 ▶ 23052-2CS5K/VT143

400 140 2 135 3 450 285 1 000 1 400 65,5 ▶ 24052 CC/W33 ▶ 24052 CCK30/W33
440 144 2 664 3 900 290 1 100 1 400 90,5 ▶ 23152 CC/W33 ▶ 23152 CCK/W33
440 144 2 668 3 900 290 – 320 90,5 ▶ 23152-2CS5/VT143 ▶ 23152-2CS5K/VT143

440 180 3 086 4 800 380 670 950 110 ▶ 24152 CC/W33 ▶ 24152 CCK30/W33
440 180 3 092 4 900 380 – 240 109 24152-2CS5/VT143 –
480 130 2 722 3 550 285 1 200 1 600 110 ▶ 22252 CC/W33 22252 CCK/W33

480 174 3 395 4 750 360 850 1 200 140 ▶ 23252 CC/W33 ▶ 23252 CCK/W33
540 165 3 680 4 550 325 850 1 100 190 ▶ 22352 CC/W33 ▶ 22352 CCK/W33

SKF Explorer bearing
▶ Popular item
