OPTIBELT POWER TRANSMISSION

8M - belt width 30 mm

ชื่อรุ่น :

8M - belt width 30 mm

แบรนด์

Optibelt

รายละเอียด :

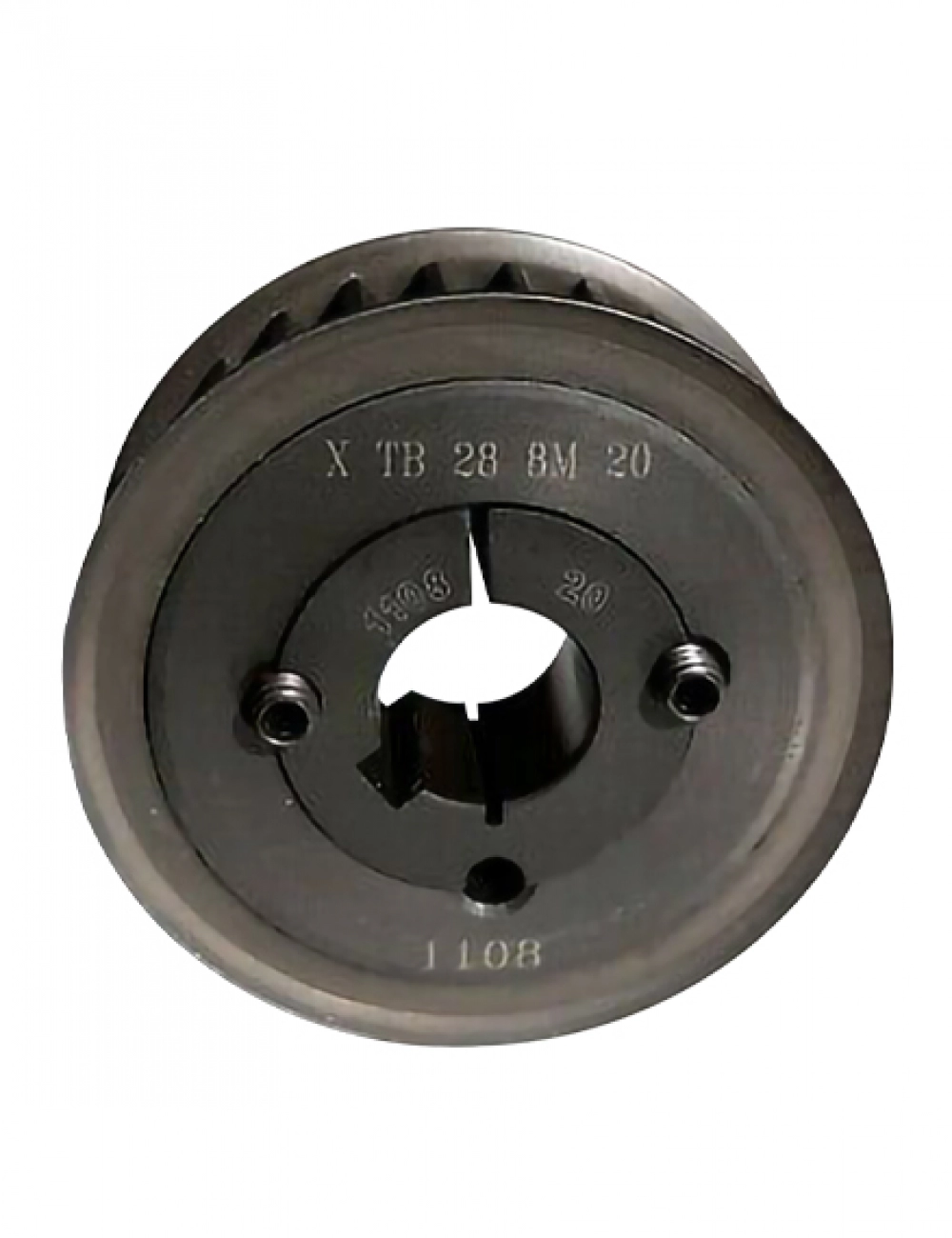

optibelt ZRS HTD ( 8M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคเพลาด้วยเทอเปอร์บู๊ธ - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 56.02 - 229.18 มม. - ระยะ Pitch = 8 mm - สำหรับสายพานกว้าง = 30 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
TB 22 8M 30
Model description

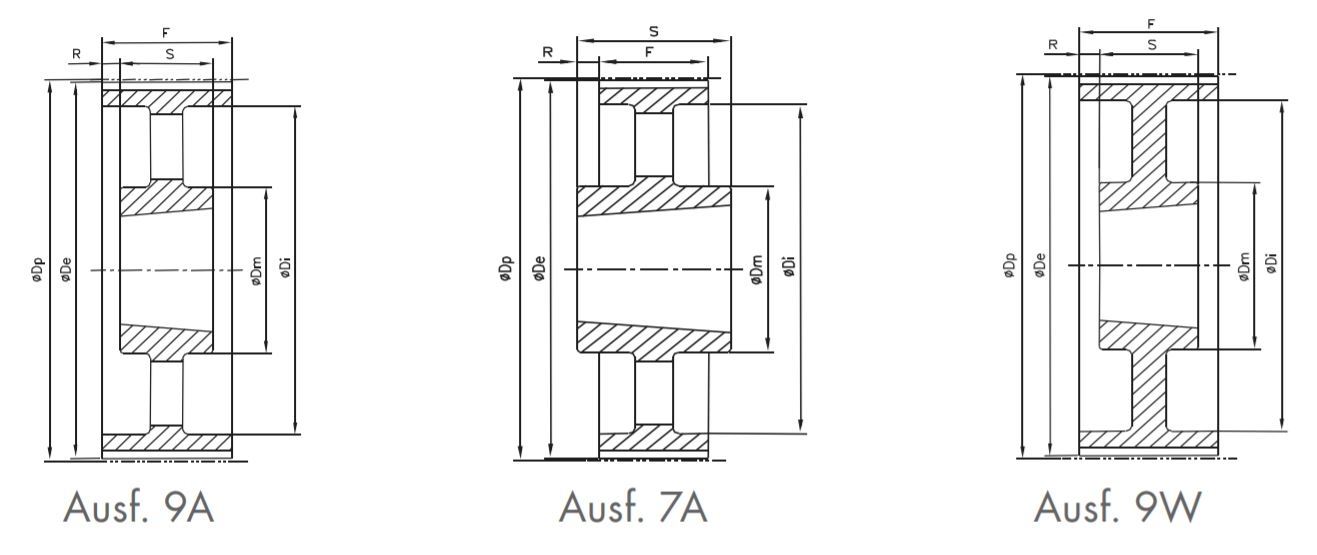

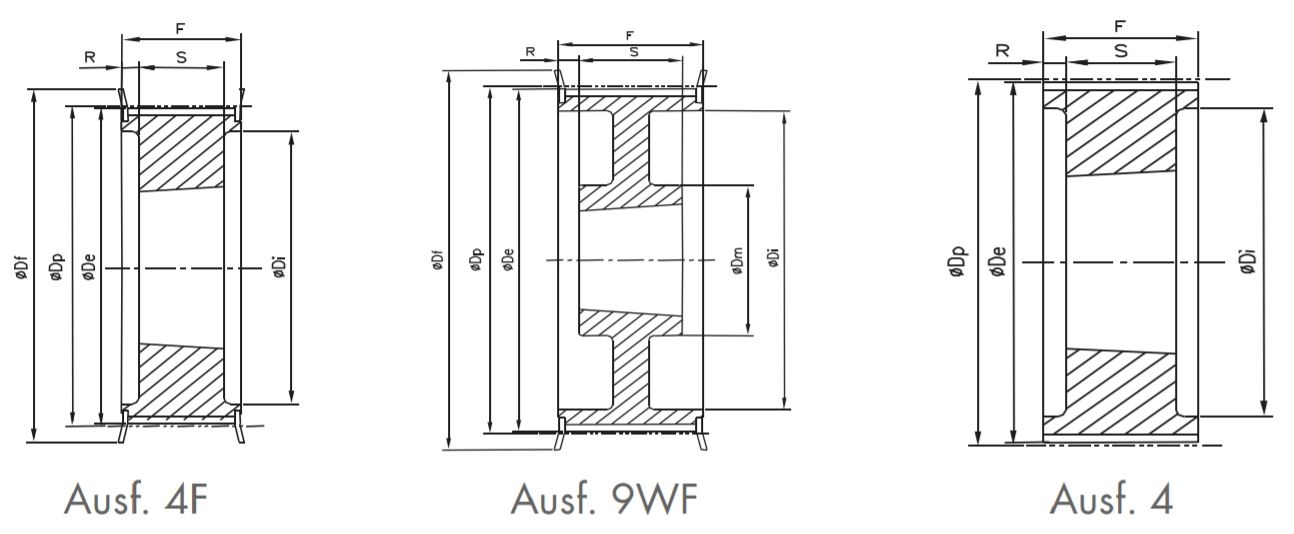

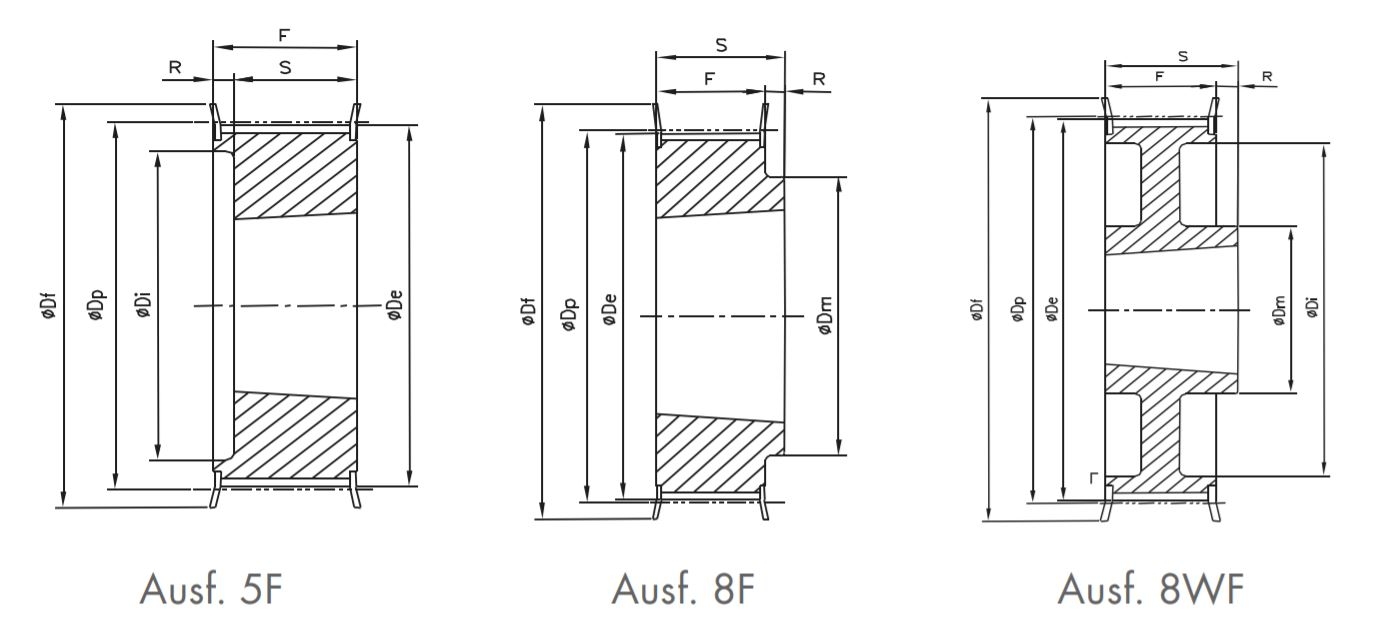

Number of teeth = 22 , Type = 5F Taper bushing = 1008 , Bore D2 = 10-25 mm DIMENSIONS : Dp = 56.02 mm , De = 54.65 mm, Df = 60 mm, F = 38 mm ,S = 22 mm
Price
Call
Model
TB 24 8M 30
Model description
Number of teeth = 24 , Type = 5F Taper bushing = 1108 , Bore D2 = 10-28 mm DIMENSIONS : Dp = 61.12 mm , De = 59.75 mm, Df = 66 mm, F = 38 mm ,S = 22 mm
Price
Call
Model
TB 26 8M 30
Model description
Number of teeth = 26 , Type = 5F Taper bushing = 1108 , Bore D2 = 10-28 mm DIMENSIONS : Dp = 66.21 mm , De = 64.84 mm, Df = 70 mm, F = 38 mm ,S = 22 mm
Price
Call
Model
TB 28 8M 30
Model description
Number of teeth = 28 , Type = 5F Taper bushing = 1210 , Bore D2 = 11-32 mm DIMENSIONS : Dp = 71.30 mm , De = 70.08 mm, Df = 75 mm, F = 38 mm ,S = 25 mm
Price
Call
Model
TB 30 8M 30
Model description

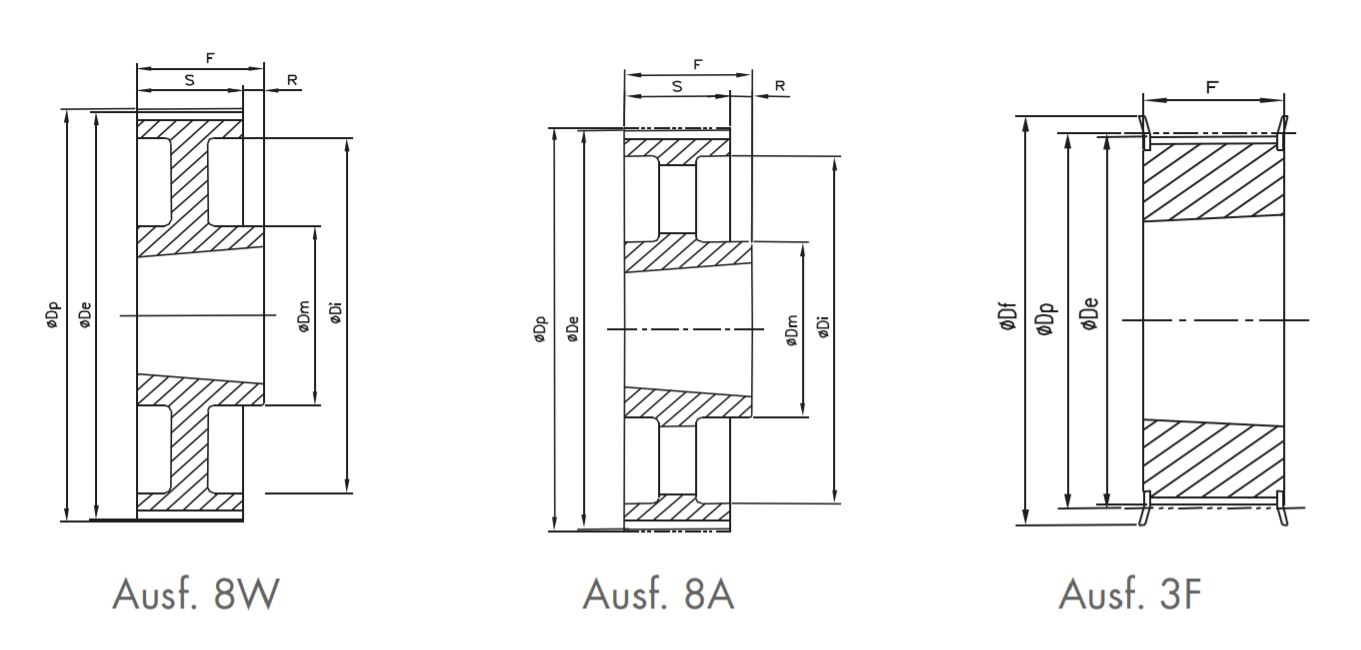

Number of teeth = 30 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 76.39 mm , De = 75.13 mm, Df = 83 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 32 8M 30
Model description
Number of teeth = 32 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 81.49 mm , De = 80.16 mm, Df = 87 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 34 8M 30
Model description
Number of teeth = 34 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 86.58 mm , De = 85.22 mm, Df = 91 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 36 8M 30
Model description
Number of teeth = 36 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 91.67 mm , De = 90.30 mm, Df = 97 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 38 8M 30
Model description
Number of teeth = 38 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 96.77 mm , De = 95.39 mm, Df = 102 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 40 8M 30
Model description
Number of teeth = 40 , Type = 3F Taper bushing = 1615 , Bore D2 = 14-42 mm DIMENSIONS : Dp = 101.86 mm , De = 100.49 mm, Df = 106 mm, F = 38 mm ,S = 38 mm
Price
Call
Model
TB 44 8M 30
Model description
Number of teeth = 44 , Type = 4F Taper bushing = 2012 , Bore D2 = 14-50 mm DIMENSIONS : Dp = 112.05 mm , De = 110.67 mm, Df = 120 mm, F = 38 mm ,S = 32 mm
Price
Call
Model
TB 48 8M 30
Model description
Number of teeth = 48 , Type = 4F Taper bushing = 2012 , Bore D2 = 14-50 mm DIMENSIONS : Dp = 122.23 mm , De = 120.86 mm, Df = 128 mm, F = 38 mm ,S = 32 mm
Price
Call
Model
TB 56 8M 30
Model description
Number of teeth = 56 , Type = 4F Taper bushing = 2012 , Bore D2 = 14-50 mm DIMENSIONS : Dp = 142.60 mm , De = 141.23 mm, Df = 150 mm, F = 38 mm ,S = 32 mm
Price
Call
Model
TB 64 8M 30
Model description
Number of teeth = 64 , Type = 8F Taper bushing = 2517 , Bore D2 = 46-65 mm DIMENSIONS : Dp = 162.97 mm , De = 161.60 mm, Df = 168 mm, F = 38 mm ,S = 45 mm
Price
Call
Model
TB 72 8M 30
Model description
Number of teeth = 72 , Type = 8WF Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 183.35 mm , De = 181.97 mm, Df = 192 mm, F = 38 mm ,S = 45 mm
Price
Call
Model
TB 80 8M 30
Model description
Number of teeth = 80 , Type = 8W Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 203.72 mm , De = 202.35 mm, Df = - mm, F = 38 mm ,S = 45 mm
Price
Call
Model
TB 90 8M 30
Model description
Number of teeth = 90 , Type = 8A Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 229.18 mm , De = 227.81 mm, Df = - mm, F = 38 mm ,S = 45 mm
Price
Call
Model
TB 112 8M 30
Model description
Number of teeth = 112 , Type = 8A Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 285.21 mm , De = 283.83 mm, Df = - mm, F = 38 mm ,S = 45 mm
Price
Call
Model
TB 144 8M 30
Model description
Number of teeth = 144 , Type = 8A Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 366.69 mm , De = 365.32 mm, Df = - mm, F = 38 mm ,S = 45 mm
Price
Call
