PRODUCT
![]()
ชื่อรุ่น :

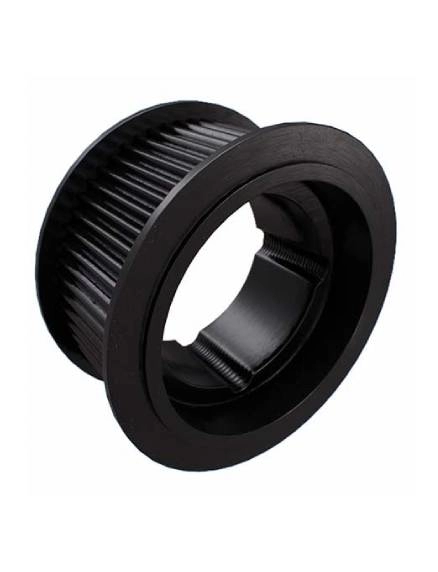

5M - belt width 15 mm
แบรนด์
Optibelt
รายละเอียด :
optibelt ZRS HTD ( 5M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคเพลาด้วยเทอเปอร์บู๊ธ
- ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 54.11 - 238.73 มม.
- ระยะ Pitch = 5 mm
- สำหรับสายพานกว้าง = 15 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TB 34 5M 15
Model description
Number of teeth = 34 , Type = 3F
Taper bushing = 1008 , Bore D2 = 10-25 mm

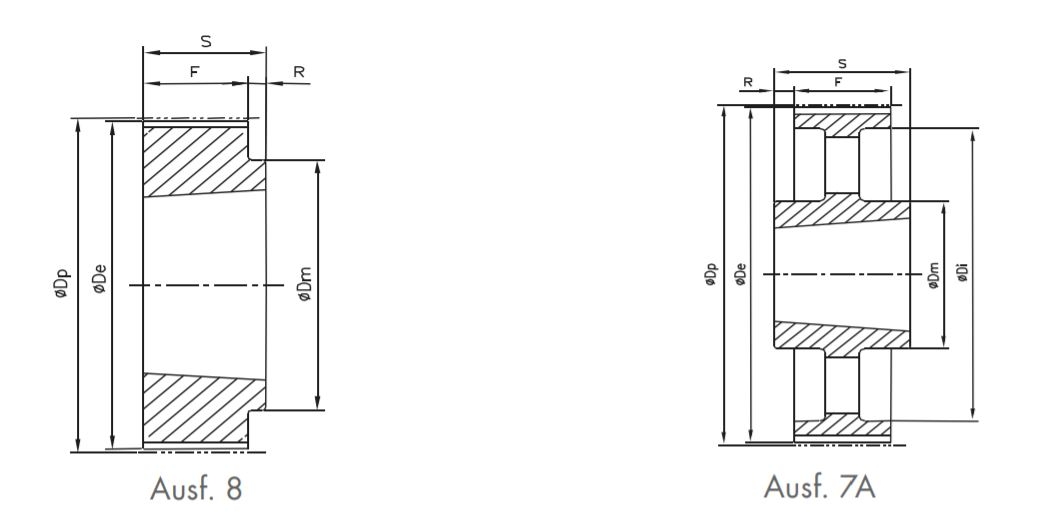

DIMENSIONS : Dp = 54.11 mm , De = 52.97 mm, Df = 57 mm, F = 22 mm ,S = 22 mm
Price
Model
TB 36 5M 15
Model description
Number of teeth = 36 , Type = 3F
Taper bushing = 1108 , Bore D2 = 10-28 mm
DIMENSIONS : Dp = 57.30 mm , De = 56.16 mm, Df = 60 mm, F = 22 mm ,S = 22 mm
Price
Model
TB 38 5M 15
Model description
Number of teeth = 68 , Type = 3F
Taper bushing = 1108 , Bore D2 = 10-28 mm
DIMENSIONS : Dp = 60.48 mm , De = 59.34 mm, Df = 66.5 mm, F = 22 mm ,S = 22 mm
Price
Model
TB 40 5M 15
Model description
Number of teeth = 40 , Type = 3F
Taper bushing = 1108 , Bore D2 = 10-28 mm
DIMENSIONS : Dp = 63.66 mm , De = 62.52 mm, Df = 71 mm, F = 22 mm ,S = 22 mm
Price
Model
TB 44 5M 15
Model description
Number of teeth = 44 , Type = 3F
Taper bushing = 1108 , Bore D2 = 10-28 mm
DIMENSIONS : Dp = 70.03 mm , De = 68.89 mm, Df = 75 mm, F = 22 mm ,S = 22 mm
Price
Model
TB 48 5M 15
Model description
Number of teeth = 48 , Type = 8F
Taper bushing = 1210 , Bore D2 = 11-32 mm
DIMENSIONS : Dp = 76.39 mm , De = 75.25 mm, Df = 83 mm, F = 22 mm ,S = 23 mm
Price
Model
TB 56 5M 15
Model description
Number of teeth = 56 , Type = 8F
Taper bushing = 1210 , Bore D2 = 11-32 mm
DIMENSIONS : Dp = 89.13 mm , De = 87.99 mm, Df = 93 mm, F = 22 mm ,S = 25 mm
Price
Model
TB 64 5M 15
Model description
Number of teeth = 64 , Type = 8F
Taper bushing = 1210 , Bore D2 = 11-32 mm
DIMENSIONS : Dp = 101.86 mm , De = 100.72 mm, Df = 106 mm, F = 22 mm ,S = 25 mm
Price
Model
TB 72 5M 15
Model description
Number of teeth = 72 , Type = 8
Taper bushing = 1610 , Bore D2 = 14-42 mm
DIMENSIONS : Dp = 114.59 mm , De = 113.45 mm, Df = - mm, F = 22 mm ,S = 25 mm
Price
Model
TB 80 5M 15
Model description
Number of teeth = 80 , Type = 8
Taper bushing = 1610 , Bore D2 = 14-42 mm
DIMENSIONS : Dp = 127.32 mm , De = 126.18 mm, Df = - mm, F = 22 mm ,S = 25 mm
Price
Model
TB 90 5M 15
Model description
Number of teeth = 90 , Type = 8
Taper bushing = 1610 , Bore D2 = 14-42 mm
DIMENSIONS : Dp = 143.24 mm , De = 142.10 mm, Df = - mm, F = 22 mm ,S = 25 mm
Price
Model
TB 112 5M 15
Model description
Number of teeth = 112 , Type = 8
Taper bushing = 2012 , Bore D2 = 14-50 mm
DIMENSIONS : Dp = 178.25 mm , De = 177.11 mm, Df = - mm, F = 20 mm ,S = 32 mm
Price
Model
TB 136 5M 15
Model description
Number of teeth = 136 , Type = 7A
Taper bushing = 2012 , Bore D2 = 14-50 mm
DIMENSIONS : Dp = 216.45 mm , De = 215.32 mm, Df = - mm, F = 20 mm ,S = 32 mm
Price
Model
TB 150 5M 15
Model description
Number of teeth = 150 , Type = 7A
Taper bushing = 2012 , Bore D2 = 14-50 mm
DIMENSIONS : Dp = 238.73 mm , De = 237.59 mm, Df = - mm, F = 20 mm ,S = 32 mm
Price
