PRODUCT
![]()
ชื่อรุ่น :
14M - belt width 170 mm
แบรนด์
Optibelt
รายละเอียด :

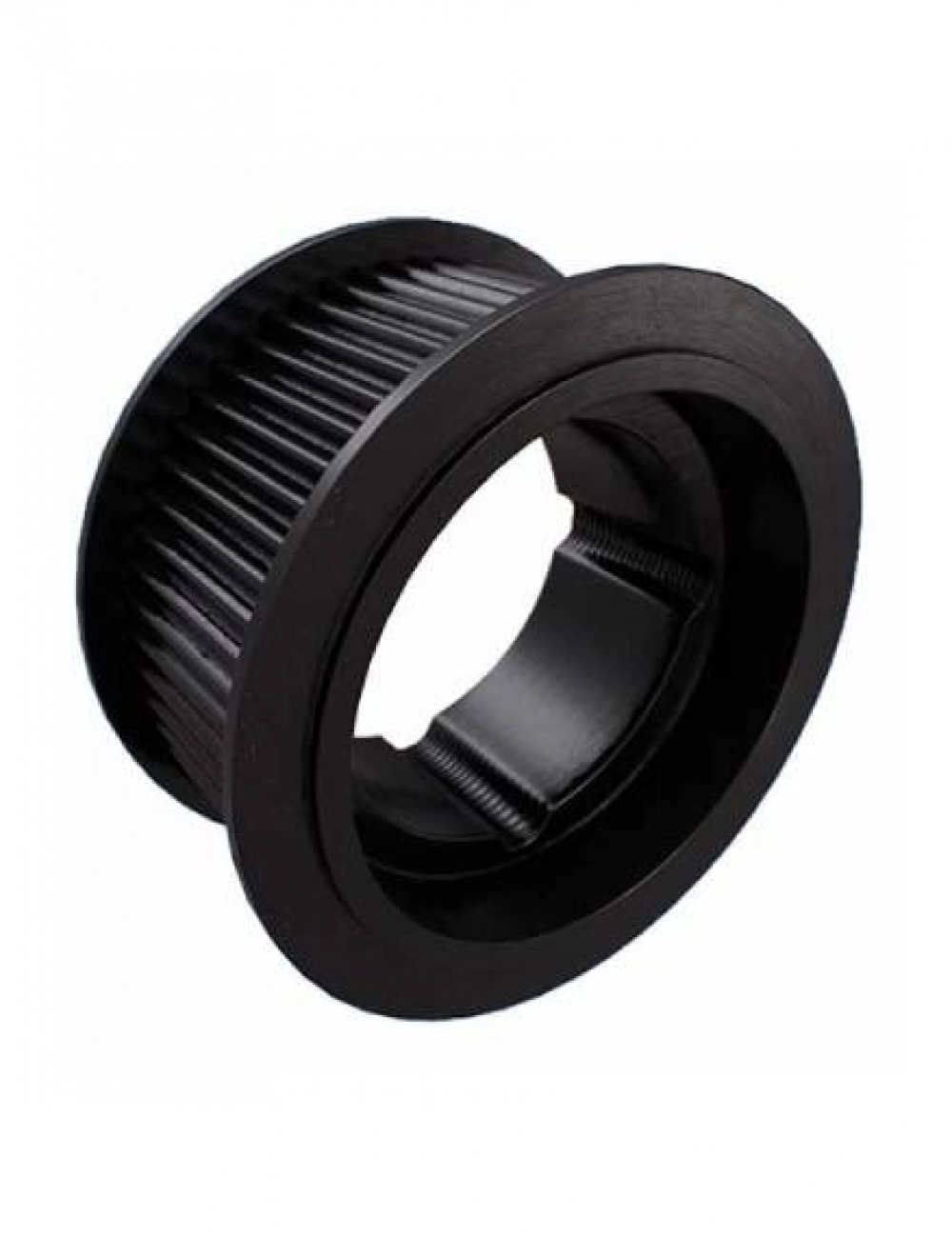

optibelt ZRS HTD ( 14M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคเพลาด้วยเทอเปอร์บู๊ธ
- ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 169.34 - 962.57 มม.
- ระยะ Pitch = 14 mm
- สำหรับสายพานกว้าง = 170 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TB 38 14M 170
Model description
Number of teeth = 38 , Type = 4F
Taper bushing = 3030 , Bore D2 = 35.75 mm

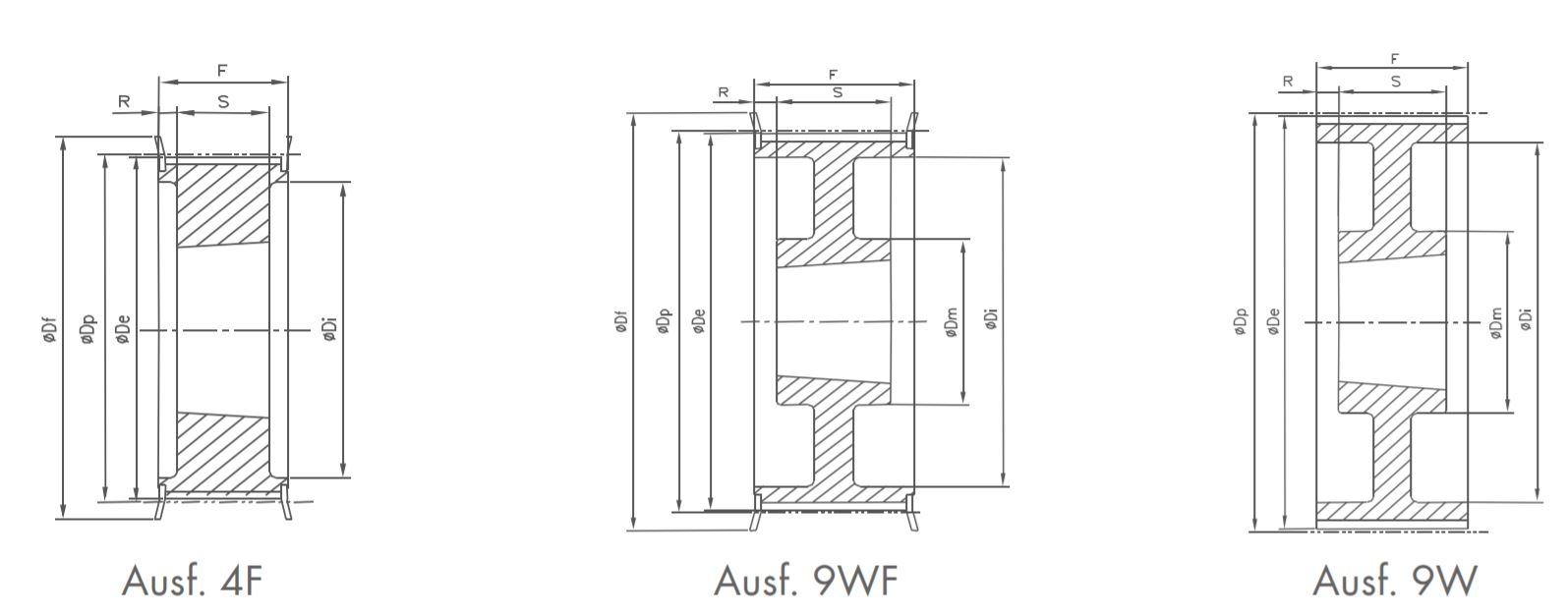

DIMENSIONS : Dp = 169.34 mm , De = 166.60 mm, Df = 183 mm, F = 187 mm ,S = 76 mm
Price
Model
TB 40 14M 170
Model description
Number of teeth = 40 , Type =
Taper bushing = 3030 , Bore D2 = 35.75 mm
DIMENSIONS : Dp = 178.25 mm , De = 175.49 mm, Df = 188 mm, F = 187 mm ,S = 76 mm
Price
Model
TB 44 14M 170
Model description
Number of teeth = 44 , Type = 4F
Taper bushing = 3535 , Bore D2 = 35-75 mm
DIMENSIONS : Dp = 196.08 mm , De = 193.08 mm, Df = 211 mm, F = 187 mm ,S = 89 mm
Price
Model
TB 48 14M 170
Model description
Number of teeth = 48 , Type = 4F
Taper bushing = 3535 , Bore D2 = 35-75 mm
DIMENSIONS : Dp = 213.90 mm , De = 211.11 mm, Df = 226 mm, F = 187 mm ,S = 89 mm
Price
Model
TB 56 14M 170
Model description
Number of teeth = 56 , Type = 4F
Taper bushing = 3535 , Bore D2 = 35-75 mm
DIMENSIONS : Dp = 249.55 mm , De = 246.76 mm, Df = 256 mm, F = 187 mm ,S = 89 mm
Price
Model
TB 64 14M 170
Model description
Number of teeth = 64 , Type = 4F
Taper bushing = 4040 , Bore D2 = 40-100 mm
DIMENSIONS : Dp = 285.21 mm , De = 282.41 mm, Df = 296 mm, F = 187 mm ,S = 102 mm
Price
Model
TB 72 14M 170
Model description
Number of teeth = 72 , Type = 9W
Taper bushing = 4040 , Bore D2 = 40-100 mm
DIMENSIONS : Dp = 320.86 mm , De = 318.06 mm, Df = - mm, F = 187 mm ,S = 102 mm
Price
Model
TB 80 14M 170
Model description
Number of teeth = 80 , Type = 9W
Taper bushing = 4040 , Bore D2 = 40-100 mm
DIMENSIONS : Dp = 356.51 mm , De = 353.71 mm, Df = - mm, F = 187 mm ,S = 102 mm
Price
Model
TB 90 14M 170
Model description

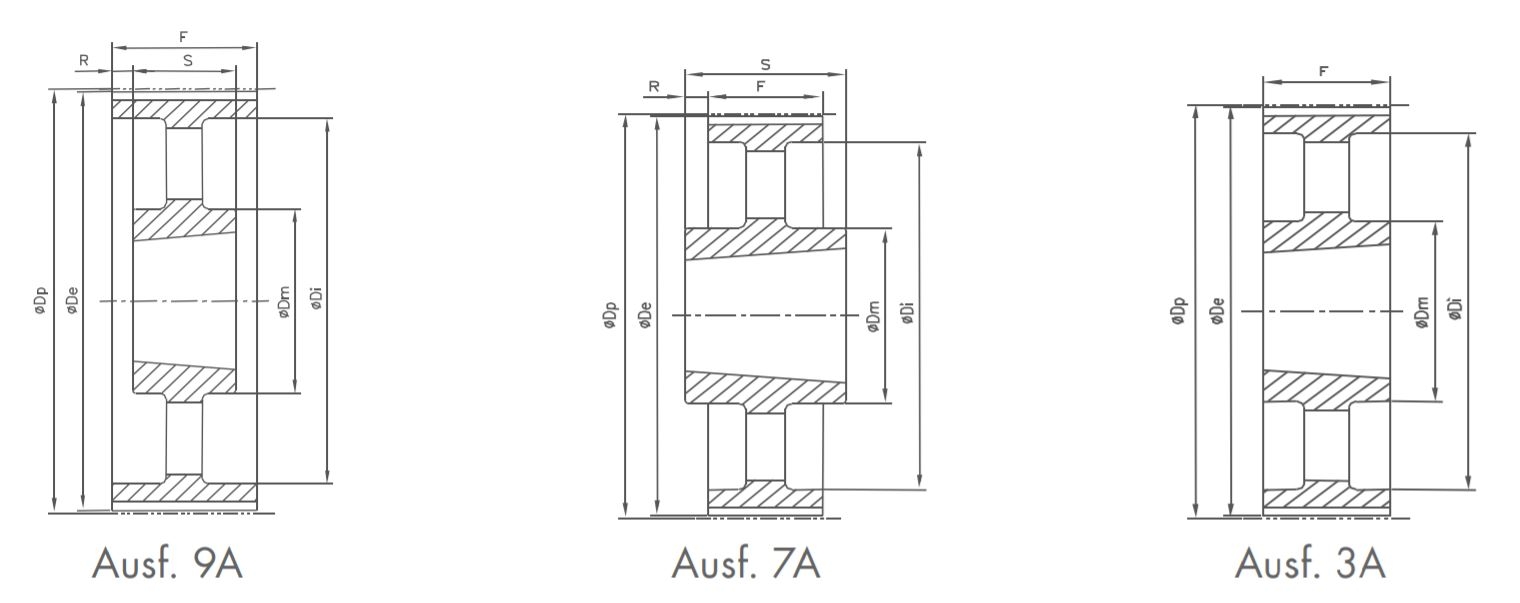

Number of teeth = 90 , Type = 9A
Taper bushing = 4040 , Bore D2 = 40-100 mm
DIMENSIONS : Dp = 401.07 mm , De = 398.28 mm, Df = - mm, F = 187 mm ,S = 102 mm
Price
Model
TB 112 14M 170
Model description
Number of teeth = 112 , Type = 9A
Taper bushing = 5050 , Bore D2 = 70-125 mm
DIMENSIONS : Dp = 499.11 mm , De = 496.32 mm, Df = - mm, F = 187 mm ,S = 127 mm
Price
Model
TB 144 14M 170
Model description
Number of teeth = 144 , Type = 9A
Taper bushing = 5050 , Bore D2 = 70-125 mm
DIMENSIONS : Dp = 641.71 mm , De = 638.92 mm, Df = - mm, F = 187 mm ,S = 127 mm
Price
Model
TB 168 14M 170
Model description
Number of teeth = 168 , Type = 9A
Taper bushing = 5050 , Bore D2 = 70-125 mm
DIMENSIONS : Dp = 748.66 mm , De = 745.87 mm, Df = - mm, F = 187 mm ,S = 127 mm
Price
Model
TB 192 14M 170
Model description
Number of teeth = 192 , Type = 9A
Taper bushing = 5050 , Bore D2 = 70-125 mm
DIMENSIONS : Dp = 855.62 mm , De = 852.82 mm, Df = - mm, F = 187 mm ,S = 127 mm
Price
Model
TB 216 14M 170
Model description
Number of teeth = 216 , Type = 9A
Taper bushing = 5050 , Bore D2 = 70-125 mm
DIMENSIONS : Dp = 962.57 mm , De = 959.77 mm, Df = - mm, F = 187 mm ,S = 127 mm
Price
