สายพาน มู่เล่ย์
OPTIBELT POWER TRANSMISSION

8M - belt width 20 mm

ชื่อรุ่น :

8M - belt width 20 mm

แบรนด์

Optibelt

รายละเอียด :

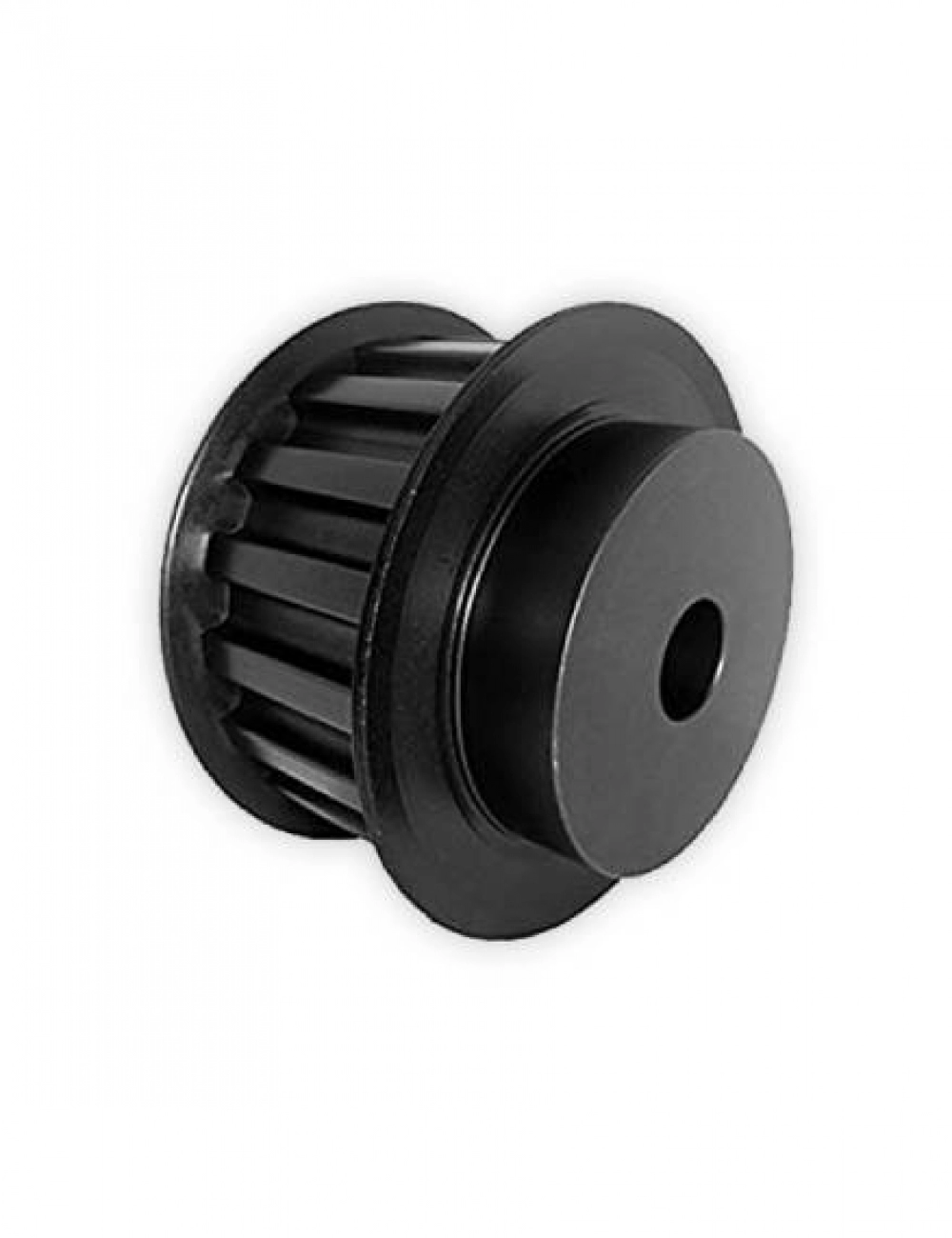

optibelt ZRS HTD ( 8M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับรูเพลามาตราฐาน - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 56.02 - 488.92 มม. - ระยะ Pitch = 8 mm - สำหรับสายพานกว้าง = 20 mm

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
22 8M 20
Model description

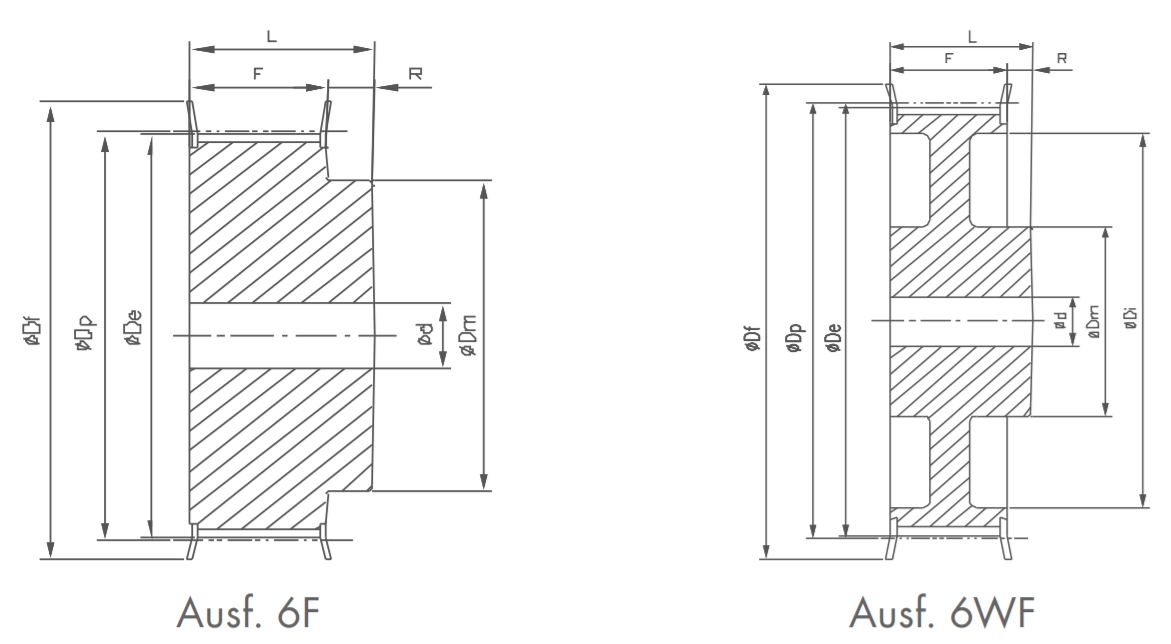

Number of teeth = 22 , Type = 6F Pilot bore = 12 mm , Bore max. = 30 mm DIMENSIONS : Dp = 56.02 mm , De = 61.12 mm, Df = 60 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
24 8M 20
Model description
Number of teeth = 24 , Type = 6F Pilot bore = 12 mm , Bore max. = 30 mm DIMENSIONS : Dp = 61.12 mm , De = 59.75 mm, Df = 66 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
26 8M 20
Model description
Number of teeth = 26 , Type = 6F Pilot bore = 12 mm , Bore max. = 35 mm DIMENSIONS : Dp = 66.21 mm , De = 64.84 mm, Df = 70 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
28 8M 20
Model description
Number of teeth = 28 , Type = 6F Pilot bore = 15 mm , Bore max. = 35 mm DIMENSIONS : Dp = 66.21 mm , De = 64.84 mm, Df = 75 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
30 8M 20
Model description
Number of teeth = 30 , Type = 6F Pilot bore = 15 mm , Bore max. = 35 mm DIMENSIONS : Dp = 76.39 mm , De = 75.13 mm, Df = 83 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
32 8M 20
Model description
Number of teeth = 32 , Type = 6F Pilot bore = 15 mm , Bore max. = 40 mm DIMENSIONS : Dp = 81.49 mm , De = 80.16 mm, Df = 87 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
34 8M 20
Model description
Number of teeth = 34 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 86.58 mm , De = 85.22 mm, Df = 91 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
36 8M 20
Model description
Number of teeth = 36 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 91.67 mm , De = 90.30 mm, Df = 97 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
38 8M 20
Model description
Number of teeth = 38 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 96.77 mm , De = 95.39 mm, Df = 102 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
40 8M 20
Model description
Number of teeth = 40 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 101.86 mm , De = 100.49 mm, Df = 106 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
44 8M 20
Model description
Number of teeth = 44 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 112.05 mm , De = 110.67 mm, Df = 120 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
48 8M 20
Model description
Number of teeth = 48 , Type = 6F Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 122.23 mm , De = 120.86 mm, Df = 127 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
56 8M 20
Model description
Number of teeth = 56 , Type = 6WF Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 142.60 mm , De = 141.23 mm, Df = 150 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
64 8M 20
Model description
Number of teeth = 64 , Type = 6WF Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 162.97 mm , De = 161.60 mm, Df = 168 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
72 8M 20
Model description
Number of teeth = 72 , Type = 6WF Pilot bore = 15 mm , Bore max. = 45 mm DIMENSIONS : Dp = 162.97 mm , De = 161.60 mm, Df = 192 mm, F = 28 mm ,L = 38 mm
Price
Call
Model
80 8M 20
Model description
Number of teeth = 80 , Type = 6W Pilot bore = 15 mm , Bore max. = 50 mm DIMENSIONS : Dp = 203.72 mm , De = 202.35 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
Model
90 8M 20
Model description

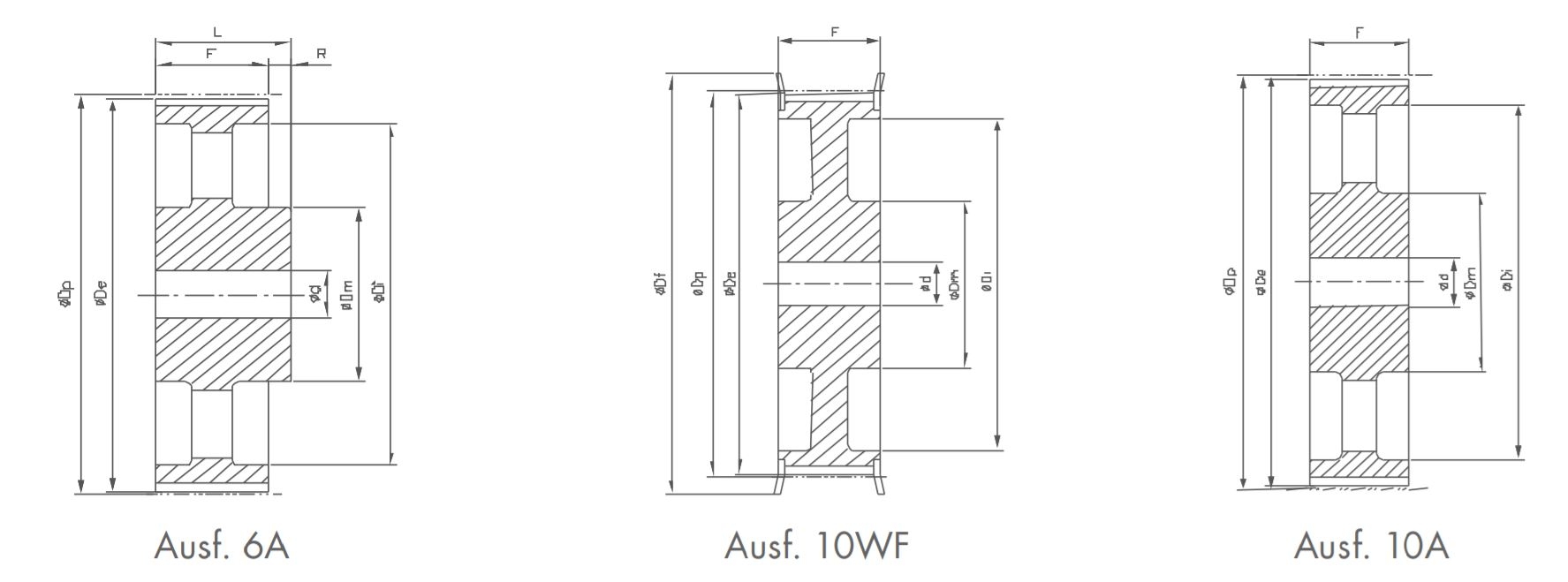

Number of teeth = 90 , Type = 6A Pilot bore = 15 mm , Bore max. = 50 mm DIMENSIONS : Dp = 229.18 mm , De = 227.81 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
Model
112 8M 20
Model description
Number of teeth = 112 , Type = 6A Pilot bore = 18 mm , Bore max. = 50 mm DIMENSIONS : Dp = 285.21 mm , De = 283.83 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
Model
144 8M 20
Model description
Number of teeth = 144 , Type = 6A Pilot bore = 20 mm , Bore max. = 50 mm DIMENSIONS : Dp = 266.69 mm , De = 365.32 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
Model
168 8M 20
Model description
Number of teeth = 168 , Type = 6A Pilot bore = 20 mm , Bore max. = 55 mm DIMENSIONS : Dp = 427.81 mm , De = 426.44 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
Model
192 8M 20
Model description
Number of teeth = 192 , Type = 6A Pilot bore = 20 mm , Bore max. = 55 mm DIMENSIONS : Dp = 488.92 mm , De = 487.55 mm, Df = - mm, F = 28 mm ,L = 38 mm
Price
Call
