OPTIBELT POWER TRANSMISSION

5M - belt width 25 mm

ชื่อรุ่น :

5M - belt width 25 mm

แบรนด์

Optibelt

รายละเอียด :

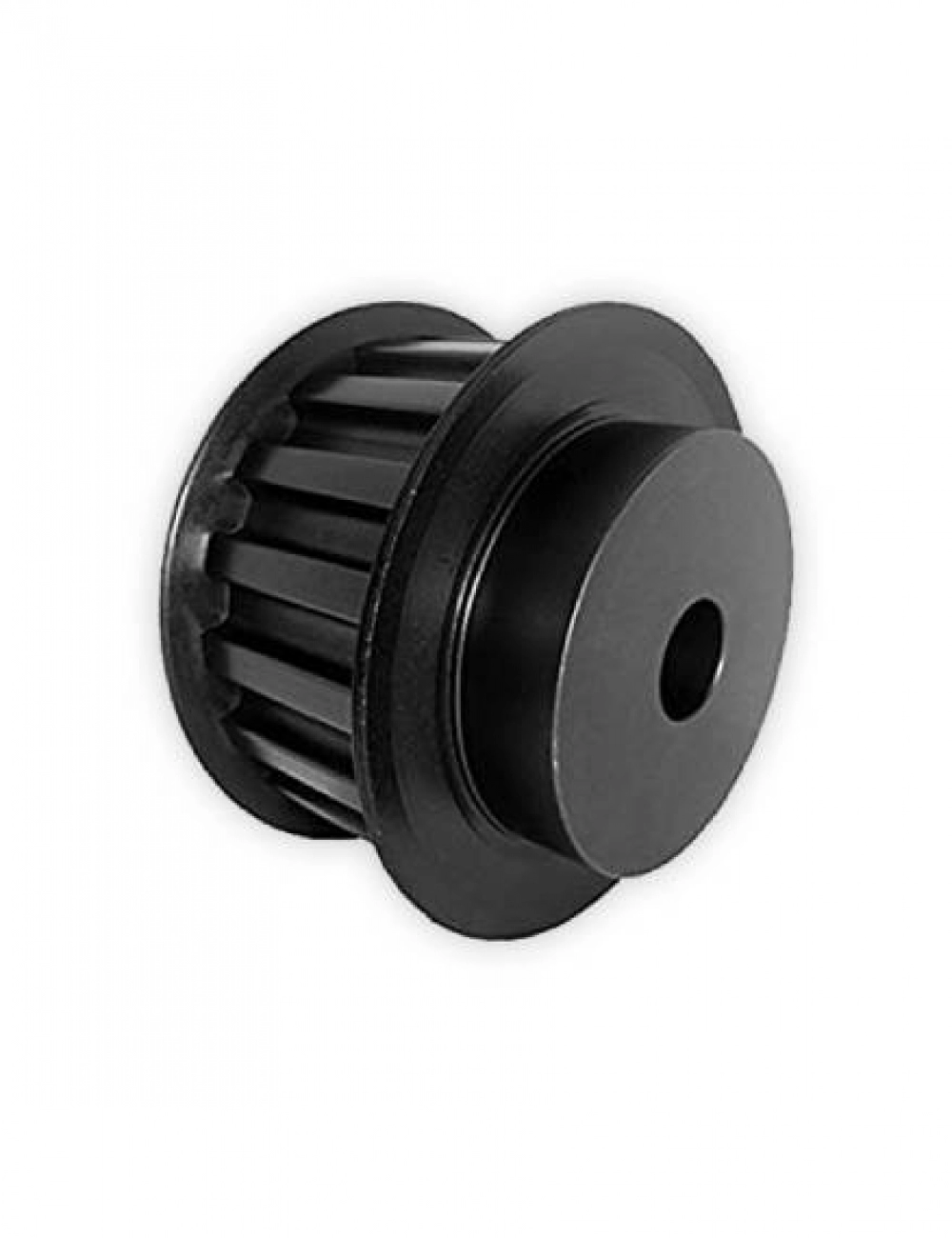

optibelt ZRS HTD ( 5M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับรูเพลามาตราฐาน - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 19.10 - 114.59 มม. - ระยะ Pitch = 5 mm - สำหรับสายพานกว้าง = 25 mm

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
12 5M 25
Model description
Number of teeth = 12 , Type = 6F Pilot bore = - mm , Bore max. = 7 mm DIMENSIONS : Dp = 19.10 mm , De = 17.96 mm, Df = 23 mm, F = 30.5 mm ,L = 36 mm
Price
Call
Model
14 5M 25
Model description
Number of teeth = 14 , Type = 6F Pilot bore = - mm , Bore max. = 8 mm DIMENSIONS : Dp = 22.28 mm , De = 21.14 mm, Df = 25 mm, F = 30.5 mm ,L = 36 mm
Price
Call
Model
15 5M 25
Model description
Number of teeth = 15 , Type = 6F Pilot bore = - mm , Bore max. = 10 mm DIMENSIONS : Dp = 23.87 mm , De = 22.73 mm, Df = 28 mm, F = 30.5 mm ,L = 36 mm
Price
Call
Model
16 5M 25
Model description
Number of teeth = 16 , Type = 6F Pilot bore = - mm , Bore max. = 10 mm DIMENSIONS : Dp = 25.46 mm , De = 24.32 mm, Df = 28 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
18 5M 25
Model description
Number of teeth = 18 , Type = 6F Pilot bore = mm , Bore max. = 12 mm DIMENSIONS : Dp = 28.65 mm , De = 27.51 mm, Df = 32 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
20 5M 25
Model description
Number of teeth = 20 , Type = 6F Pilot bore = - mm , Bore max. = 14 mm DIMENSIONS : Dp = 31.83 mm , De = 30.69 mm, Df = 36 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
21 5M 25
Model description
Number of teeth = 21 , Type = 6F Pilot bore = - mm , Bore max. = 14 mm DIMENSIONS : Dp = 33.42 mm , De = 32.28 mm, Df = 38 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
22 5M 25
Model description
Number of teeth = 22 , Type = 6F Pilot bore = - mm , Bore max. = 14 mm DIMENSIONS : Dp = 35.01 mm , De = 33.87 mm, Df = 39 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
24 5M 25
Model description
Number of teeth = 24 , Type = 6F Pilot bore = - mm , Bore max. = 16 mm DIMENSIONS : Dp = 38.20 mm , De = 37.06 mm, Df = 42 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
26 5M 25
Model description
Number of teeth = 26 , Type = 6F Pilot bore = - mm , Bore max. = 18 mm DIMENSIONS : Dp = 41.38 mm , De = 40.24 mm, Df = 44 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
28 5M 25
Model description
Number of teeth = 28 , Type = 6F Pilot bore = - mm , Bore max. = 18 mm DIMENSIONS : Dp = 44.56 mm , De = 43.42 mm, Df = 48 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
30 5M 25
Model description
Number of teeth = 30 , Type = 6F Pilot bore = - mm , Bore max. = 20 mm DIMENSIONS : Dp = 47.75 mm , De = 46.61 mm, Df = 51 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
32 5M 25
Model description
Number of teeth = 32 , Type = 6F Pilot bore = 8 mm , Bore max. = 22 mm DIMENSIONS : Dp = 50.93 mm , De = 49.79 mm, Df = 54 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
36 5M 25
Model description
Number of teeth = 36 , Type = 6F Pilot bore = 8 mm , Bore max. = 22 mm DIMENSIONS : Dp = 57.30 mm , De = 56.16 mm, Df = 60 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
40 5M 25
Model description
Number of teeth = 40 , Type = 6F Pilot bore = 8 mm , Bore max. = 22 mm DIMENSIONS : Dp = 63.66 mm , De = 62.52 mm, Df = 71 mm, F = 30.5 mm ,L = 38.5 mm
Price
Call
Model
44 5M 25
Model description
Number of teeth = 44 , Type = 6W Pilot bore = 8 mm , Bore max. = 22 mm DIMENSIONS : Dp = 70.03 mm , De = 68.89 mm, Df = - mm, F = 30.5 mm ,L = 40 mm
Price
Call
Model
48 5M 25
Model description
Number of teeth = 48 , Type = 6W Pilot bore = 8 mm , Bore max. = 25 mm DIMENSIONS : Dp = 76.39 mm , De = 75.25 mm, Df = - mm, F = 30.5 mm ,L = 40 mm
Price
Call
Model
60 5M 25
Model description
Number of teeth = 60 , Type = 6W Pilot bore = 8 mm , Bore max. = 25 mm DIMENSIONS : Dp = 95.49 mm , De = 94.35 mm, Df = - mm, F = 30.5 mm ,L = 40 mm
Price
Call
Model
72 5M 25
Model description
Number of teeth = 72 , Type = 6W Pilot bore = 8 mm , Bore max. = 25 mm DIMENSIONS : Dp = 114.59 mm , De = 113.45 mm, Df = - mm, F = 30.5 mm ,L = 40 mm
Price
Call
