ชื่อรุ่น :
BN - 8 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
BN 71A 8
Model description
Pn = 0.09 kW
Mn = 1.26 Nm
In = 0.47 A

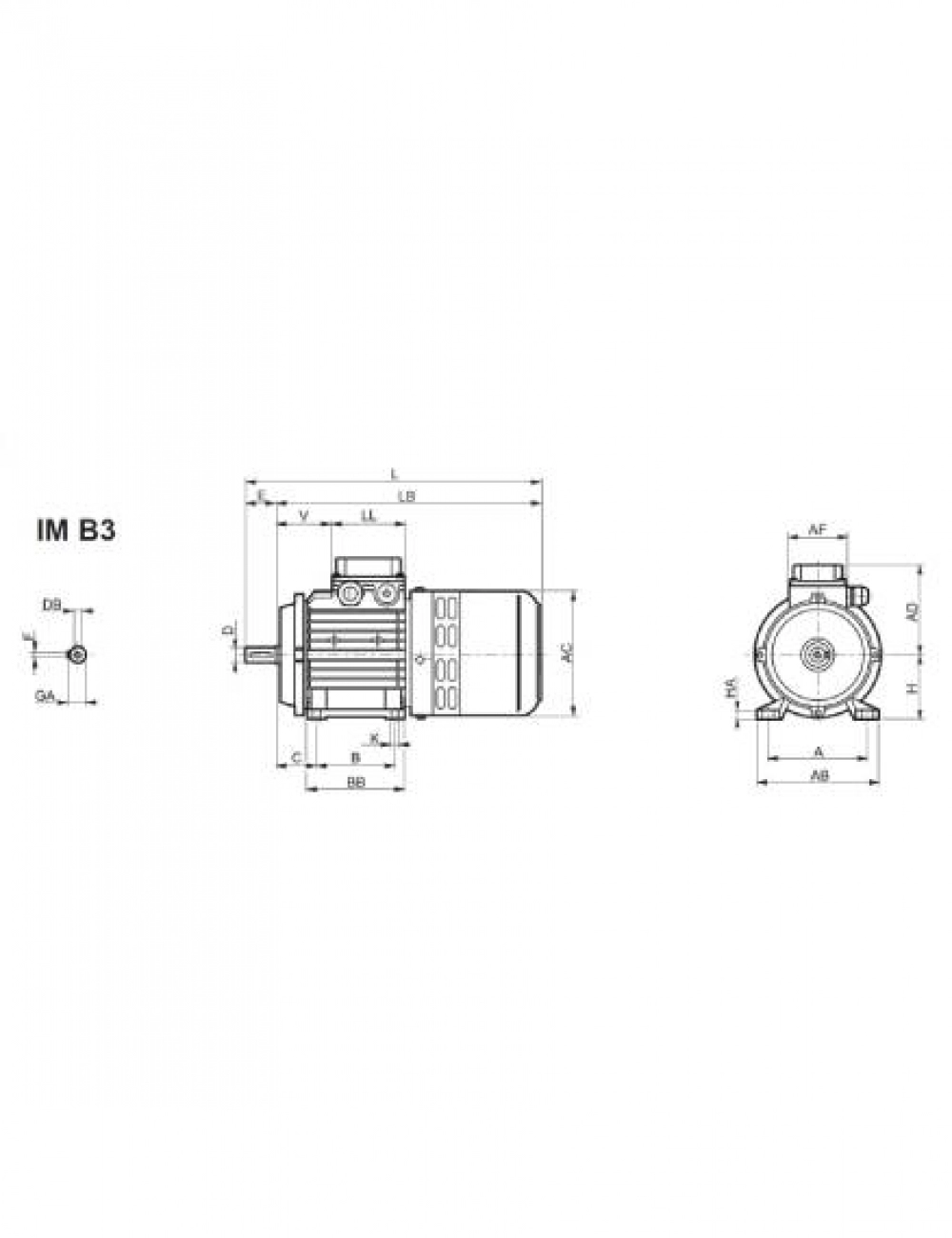

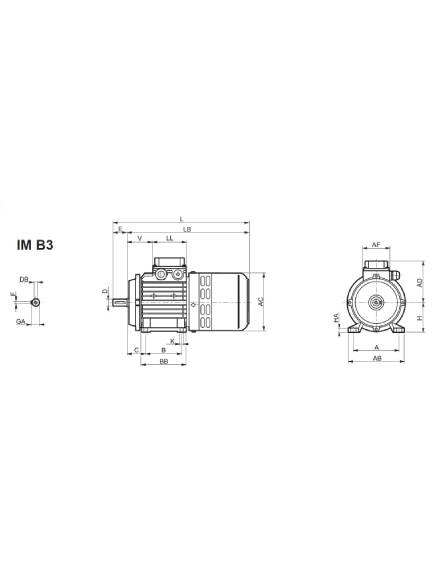

Dimension : D = 14 mm, DA = 14 mm , E = 30 mm , EA = 30 mm , DB = M5 , B = 90 mm , AC = 138 mm , L = 249 mm
Price
Model
BN 71B 8
Model description
Pn = 0.12 kW
Mn = 1.69 Nm
In = 0.58 A
Dimension : D = 14 mm, DA = 14 mm , E = 30 mm , EA = 30 mm , DB = M5 , B = 90 mm , AC = 138 mm , L = 249 mm
Price
Model
BN 80A 8
Model description
Pn = 0.18 kW
Mn = 2.49 Nm
In = 0.85 A
Dimension : D = 19 mm, DA = 19 mm , E = 40 mm , EA = 40 mm , DB = M6 , B = 100 mm , AC = 156 mm , L = 273 mm
Price
Model
BN 80B 8
Model description
Pn = 0.25 kW
Mn = 3.51 Nm
In = 1.06 A
Dimension : D = 19 mm, DA = 19 mm , E = 40 mm , EA = 40 mm , DB = M6 , B = 100 mm , AC = 156 mm , L = 273 mm
Price
Model
BN 90S 8
Model description
Pn = 0.37 kW
Mn = 5.2 Nm
In = 1.53 A
Dimension : D = 24 mm, DA = 24 mm , E = 50 mm , EA = 50 mm , DB = M8 , B = 100 mm , AC = 176 mm , L = 302 mm
Price
Model
BN 90L 8
Model description
Pn = 0.55 kW
Mn = 7.8 Nm
In = 2.13 A
Dimension : D = 24 mm, DA = 24 mm , E = 50 mm , EA = 50 mm , DB = M8 , B = 125 mm , AC = 176 mm , L = 326 mm
Price
Model
BN 100LA 8
Model description
Pn = 0.75 kW
Mn = 10.2 Nm
In = 2.53 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , B = 140 mm , AC = 195 mm , L = 366 mm
Price
Model
BN 100LB 8
Model description
Pn = 1.1 kW
Mn = 15.0 Nm
In = 3.65 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , B = 140 mm , AC = 195 mm , L = 366 mm
Price
Model
BN 112M 8
Model description
Pn = 1.5 kW
Mn = 20.2 Nm
In = 4.6 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , B = 140 mm , AC = 219 mm , L = 385 mm
Price
Model
BN 132S 8
Model description
Pn = 2.2 kW
Mn = 29.6 Nm
In = 6.4 A
Dimension : D = 38 mm, DA = 38 mm , E = 80 mm , EA = 80 mm , DB = M12 , B = 140 mm , AC = 258 mm , L = 455 mm
Price
Model
BN 132MA 8
Model description
Pn = 3 kW
Mn = 40.4 Nm
In = 8.3 A
Dimension : D = 38 mm, DA = 38 mm , E = 80 mm , EA = 80 mm , DB = M12 , B = 178 mm , AC = 258 mm , L = 493 mm
