PRODUCT
![]()
ชื่อรุ่น :
M2BAX... - 4 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
M2BAX 71MA 4
Model description
Output = 0.25 kW
Power factor = 0.69 Cos
Current = 0.75 A
Torque = 1.69 Nm

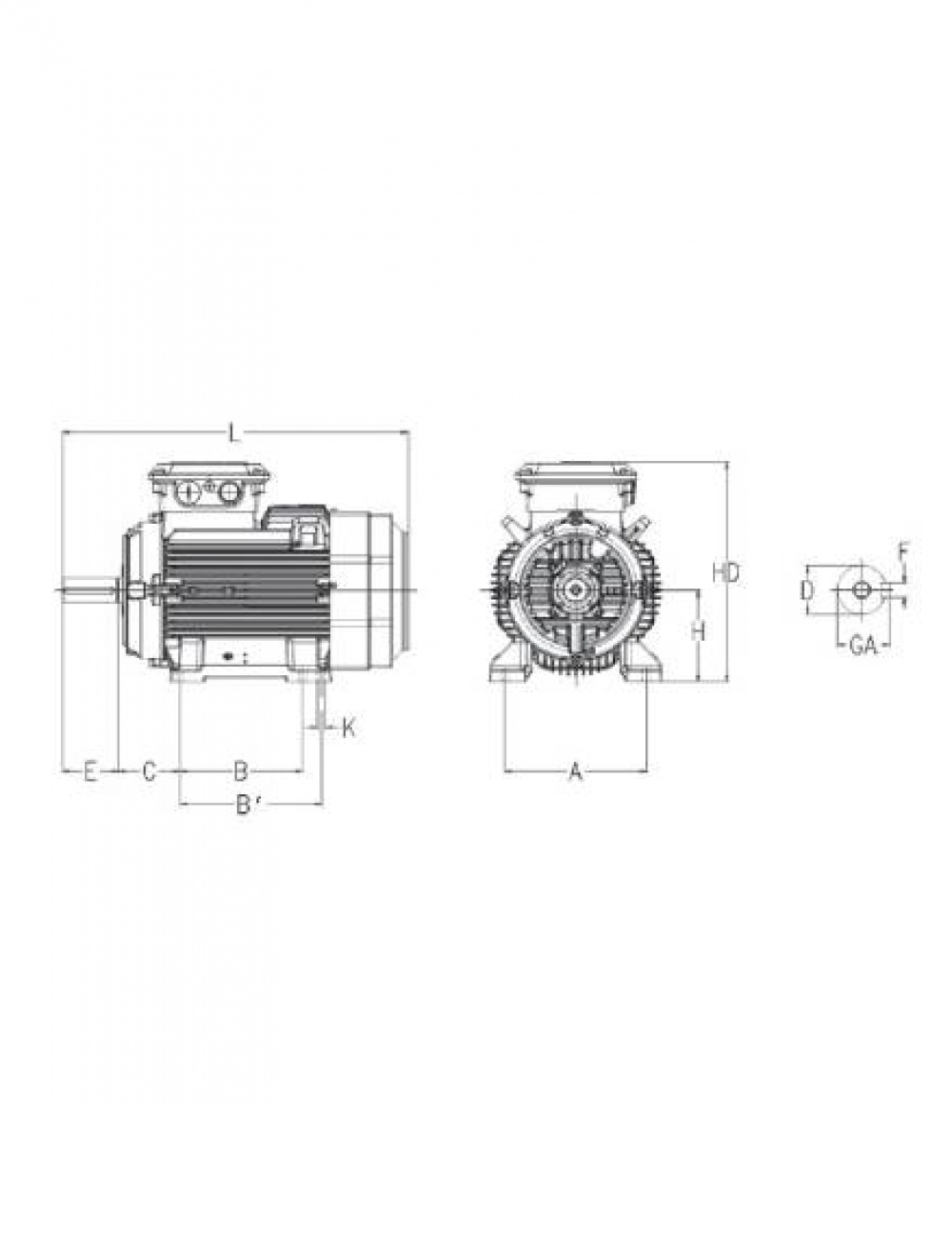

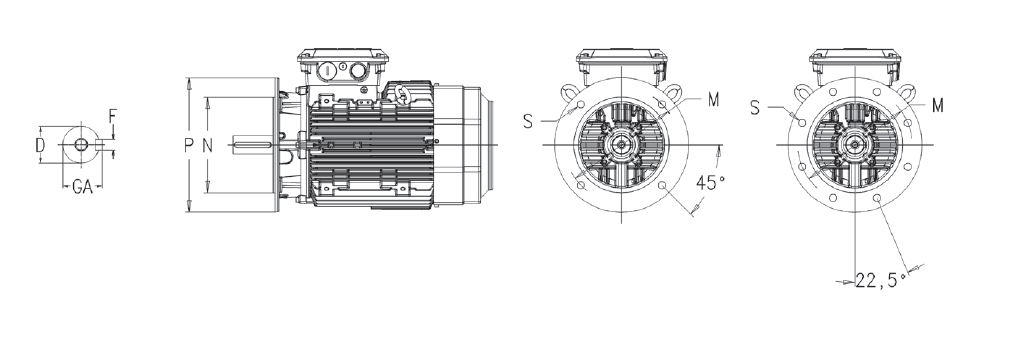

Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 71MB 4
Model description
Output = 0.37 kW
Power factor = 0.69 Cos
Current = 1.08 A
Torque = 2.5 Nm
Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 80MA 4
Model description
Output = 0.55 kW
Power factor = 0.37 Cos
Current = 1.41 A
Torque = 3.66 Nm
Dimension : Motor size = 80M , D = , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 80MB 4
Model description
Output = 0.75 kW
Power factor = 0.69 Cos
Current = 1.99 A
Torque = 4.97 Nm
Dimension : Motor size = 80M , D = , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90SA 4
Model description
Output = 1.1 kW
Power factor = 0.71 Cos
Current = 2.74 A
Torque = 7.35 Nm
Dimension : Motor size = 90M , D = 24 , E = 50 mm , L = 335 mm , A = 140 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90LA 4
Model description
Output = 1.5 kW
Power factor = 0.73 Cos
Current = 3.6 A
Torque = 10 Nm
Dimension : Motor size = 90M , D = 24 , E = 50 mm , L = 351 mm , A = 140 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 100LA 4
Model description
Output = 2.2 kW
Power factor = 0.77 Cos
Current = 4.93 A
Torque = 14.54 Nm
Dimension : Motor size = 100M , D = 28 , E = 60 mm , L = 376 mm , A = 160 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 100LB 4
Model description
Output = 3 kW
Power factor = 0.77 Cos
Current = 6.61 A
Torque = 19.8 Nm
Dimension : Motor size = 100M , D = 28 , E = 60 mm , L = 376 mm , A = 160 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 112MA 4
Model description
Output = 4 kW
Power factor = 0.78 Cos
Current = 8.62 A
Torque = 26.5 Nm
Dimension : Motor size = 112M , D = 28 , E = 60 mm , L = 411 mm , A = 190 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 132SA 4
Model description
Output = 5.5 kW
Power factor = 0.77 Cos
Current = 11.7 A
Torque = 36 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 479 mm , A = 216 mm , B = 140 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 132MA 4
Model description
Output = 7.5 kW
Power factor = 0.77 Cos
Current = 16 A
Torque = 49.1 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 521 mm , A = 216 mm , B = 178 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 160MLA 4
Model description
Output = 11 kW
Power factor = 0.78 Cos
Current = 22.8 A
Torque = 71.51 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 586.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 160MLB 4
Model description
Output = 15 kW
Power factor = 0.81 Cos
Current = 29.5 A
Torque = 97.71 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 626.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 180MLA 4
Model description
Output = 18.5 kW
Power factor = 0.79 Cos
Current = 36.9 A
Torque = 120 Nm
Dimension : Motor size = 180M , D = 48 , E = 110 mm , L = 683.5 mm , A = 279 mm , B = 241 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 180MLB 4
Model description
Output = 22 kW
Power factor = 0.77 Cos
Current = 45 A
Torque = 143 Nm
Dimension : Motor size = 180M , D = 48 , E = 110 mm , L = 683.5 mm , A = 279 mm , B = 241 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 200MLA 4
Model description
Output = 30 kW
Power factor = 0.81 Cos
Current = 58.4 A
Torque = 194 Nm
Dimension : Motor size = 200M , D = 55 , E = 110 mm , L = 728 mm , A = 318 mm , B = 267 mm , N = 300 mm , P = 400 mm
Price
Model
M2BAX 225SMA 4
Model description
Output = 37 kW
Power factor = 0.82 Cos
Current = 70.6 A
Torque = 239 Nm
Dimension : Motor size = 225M , D = 55 , E = 140 mm , L = 854 mm , A = 356 mm , B = 286 mm , N = 350 mm , P = 450 mm
Price
Model
M2BAX 225SMB 4
Model description
Output = 45 kW
Power factor = 0.80 Cos
Current = 87.2 A
Torque = 290 Nm
Dimension : Motor size = 225M , D = 55 , E = 140 mm , L = 854 mm , A = 356 mm , B = 286 mm , N = 350 mm , P = 450 mm
Price
Model
M2BAX 250SMA 4
Model description
Output = 55 kW
Power factor = 0.82 Cos
Current = 104 A
Torque = 356 Nm
Dimension : Motor size = 250M , D = 60 , E = 140 mm , L = 882 mm , A = 406 mm , B = 311 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SMD 4
Model description
Output = 75 kW
Power factor = 0.83 Cos
Current = 138 A
Torque = 484 Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SME 4
Model description
Output = 90 kW
Power factor = 0.86 Cos
Current = 160 A
Torque = 581 Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 315SMA 4
Model description
Output = 110 kW
Power factor = 0.85 Cos
Current = 197 A
Torque = 706 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMB 4
Model description
Output = 132 kW
Power factor = 0.86 Cos
Current = 236 A
Torque = 847 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMC 4
Model description
Output = 160 kW
Power factor = 0.85 Cos
Current = 288 A
Torque = 1027 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315MLA 4
Model description
Output = 200 kW
Power factor = 0.86 Cos
Current = 356 A
Torque = 1285 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMA 4
Model description
Output = 250 kW
Power factor = 0.85 Cos
Current = 445 A
Torque = 1604 Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMB 4
Model description
Output = 315 kW
Power factor = 0.85 Cos
Current = 560 A
Torque = Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMC 4
Model description
Output = 355 kW
Power factor = 0.86 Cos
Current = 623 A
Torque = 2279 Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
