ชื่อรุ่น :

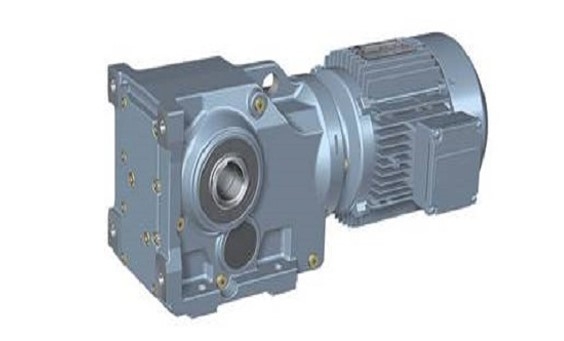

TK Series - 2.2 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 108 - MY132S8
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 4.9-7.0 r/min
Output torque (M2n) = 3020-4310 Nm
Gear unit actual ratio (i) = 100.75-143.47
Service factor (Fs) = 1.85-2.7

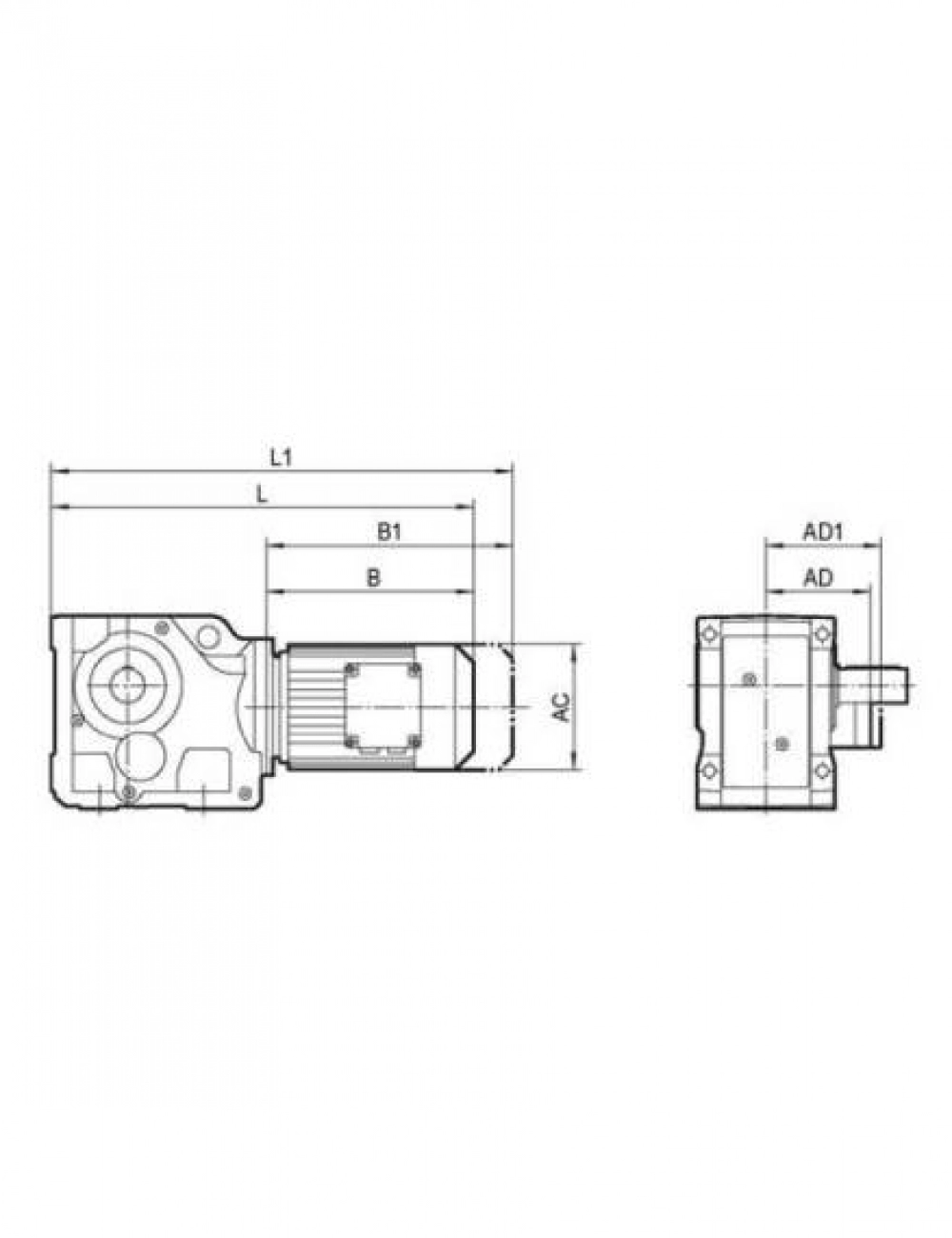

Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 374 mm , L = 915 mm
Price
Model
TK 98 - MY112M6
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 6.1-8.9 r/min
Output torque (M2n) = 2350-3420 Nm
Gear unit actual ratio (i) = 105.13-153.21
Service factor (Fs) = 1.25-1.85
Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 335 mm , L = 772 mm
Price
Model
TK 98 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 13-15 r/min
Output torque (M2n) = 1440-1570 Nm
Gear unit actual ratio (i) = 96.80-105.13
Service factor (Fs) = 2.8-3.0
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 331 mm , L = 768 mm
Price
Model
TK 88 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 14.22 r/min
Output torque (M2n) = 940-1530 Nm
Gear unit actual ratio (i) = 63.00-102.71
Service factor (Fs) = 1.75-2.9
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 307 mm , L = 696 mm
Price
Model
TK 78 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 40-55 r/min
Output torque (M2n) = 380-525 Nm
Gear unit actual ratio (i) = 25.62-35.30
Service factor (Fs) = 3.0-4.1
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 311 mm , L = 625 mm
Price
Model
TK 68 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 52-271 r/min
Output torque (M2n) = 78-405 Nm
Gear unit actual ratio (i) = 5.20-27.28
Service factor (Fs) = 2.0-4.5
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 319 mm , L = 588 mm
Price
Model
TK 58 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 52-125 r/min
Output torque (M2n) = 168-405 Nm
Gear unit actual ratio (i) = 11.26-27.34
Service factor (Fs) = 1.45-2.5
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 319 mm , L = 572 mm
Price
Model
TK 48 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 84-155 r/min
Output torque (M2n) = 136-250 Nm
Gear unit actual ratio (i) = 9.10-16.86
Service factor (Fs) = 1.50-2.1
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 319 mm , L = 556 mm
Price
Model
TK 38 - MY100M4
Model description
Rated power (P1n) = 2.2 kW
Output speed (n2) = 108-354 r/min
Output torque (M2n) = 59-195 Nm
Gear unit actual ratio (i) = 3.98-13.08
Service factor (Fs) = 0.85-2.1
Dimension : AC = 16 mm , AD = 166 mm , AD1 = 166 mm , B = 358 mm , L = 560 mm
