PRODUCT
![]()
ชื่อรุ่น :

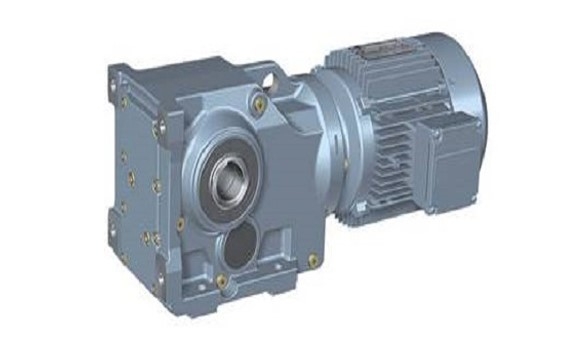

TK Series - 1.5 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 108 - MY112M8
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 4.9.6.2 r/min
Output torque (M2n) = 2300-2940 Nm
Gear unit actual ratio (i) = 112.41-143.47
Service factor (Fs) = 2.7-3.5

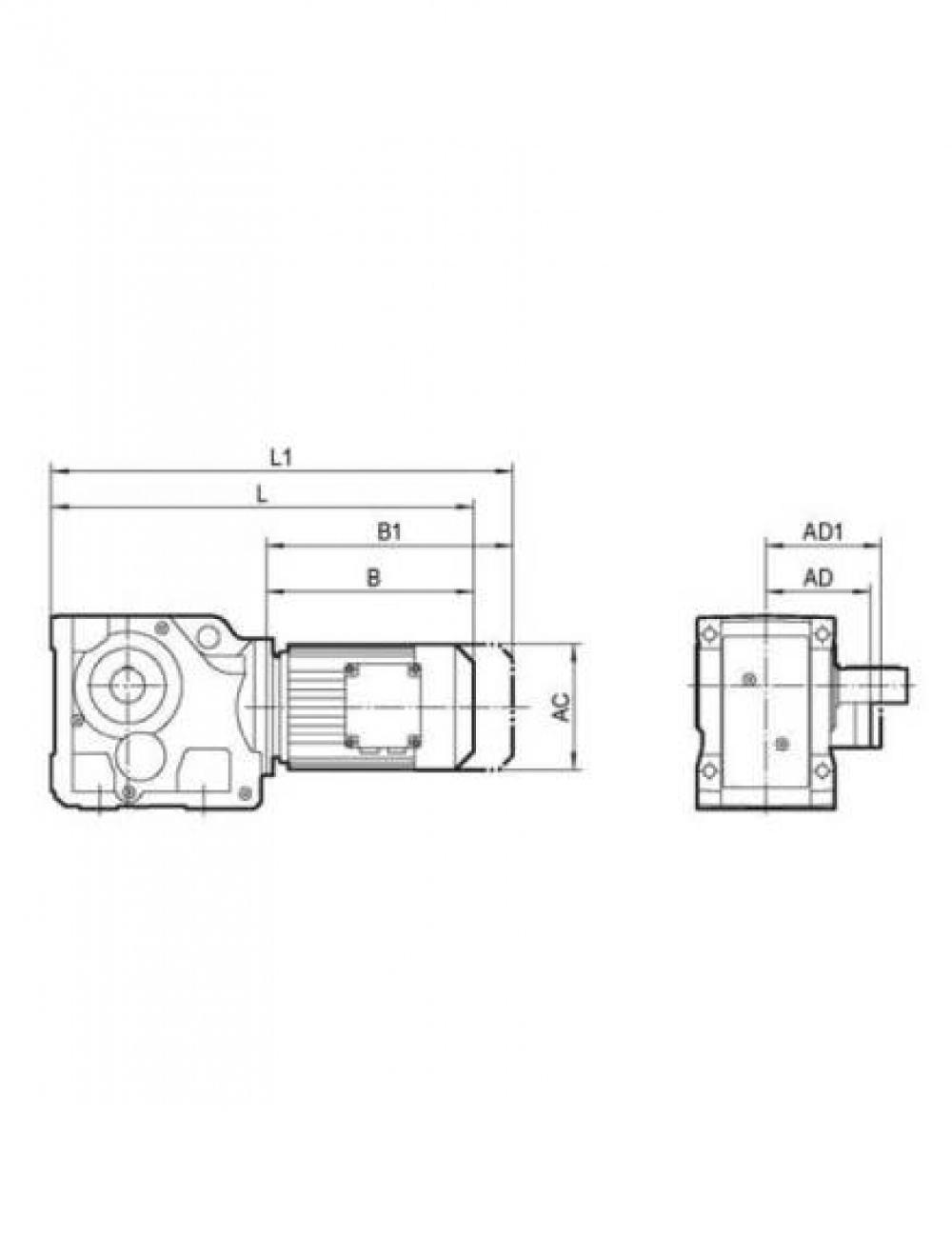

Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 329 mm , L = 870 mm
Price
Model
TK 98 - MY112M8
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 4.6-5.7 r/min
Output torque (M2n) = 2540-3140 Nm
Gear unit actual ratio (i) = 123.93-153.21
Service factor (Fs) = 1.35-1.70
Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 335 mm , L = 772 mm
Price
Model
TK 98 - MY100M6
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 1930-2740 r/min
Output torque (M2n) = 123.93-176.05 Nm
Gear unit actual ratio (i) = 1.55-2.2
Service factor (Fs) =
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 301 mm , L = 738 mm
Price
Model
TK 98 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 8.0-11 r/min
Output torque (M2n) = 1260-1790 Nm
Gear unit actual ratio (i) = 123.93-176.05
Service factor (Fs) = 2.4-3.4
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 251 mm , L = 688 mm
Price
Model
TK 88 - MY100M6
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 6.2-9.0 r/min
Output torque (M2n) = 1600-2290 Nm
Gear unit actual ratio (i) = 102.71-147.32
Service factor (Fs) = 1.20-1.70
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 307 mm , L = 696 mm
Price
Model
TK 88 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 8.1-16 r/min
Output torque (M2n) = 880-1770 Nm
Gear unit actual ratio (i) = 86.34-174.19
Service factor (Fs) = 1.55-3.1
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 257 mm , L = 646 mm
Price
Model
TK 78 - MY100M6
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 8.1-12 r/min
Output torque (M2n) = 1220-1770 Nm
Gear unit actual ratio (i) = 78.07-113.56
Service factor (Fs) = 1.30-0.90
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 311 mm , L = 625 mm
Price
Model
TK 78 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 18-35 r/min
Output torque (M2n) = 460-795 Nm
Gear unit actual ratio (i) = 40.04-78.07
Service factor (Fs) =
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 68 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 32-59 r/min
Output torque (M2n) = 245-450 Nm
Gear unit actual ratio (i) = 24.00-44.32
Service factor (Fs) = 1.80-3.3
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 538 mm
Price
Model
TK 58 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 37-73 r/min
Output torque (M2n) = 196-390 Nm
Gear unit actual ratio (i) = 19.34-38.49
Service factor (Fs) = 1.55-2.9
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 522 mm
Price
Model
TK 48 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 48-120 r/min
Output torque (M2n) = 120-300 Nm
Gear unit actual ratio (i) = 11.77-29.32
Service factor (Fs) = 1.35-2.3
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 506 mm
Price
Model
TK 38 - MY90L4
Model description
Rated power (P1n) = 1.5 kW
Output speed (n2) = 60-354 r/min
Output torque (M2n) = 40-235 Nm
Gear unit actual ratio (i) = 3.98-23.36
Service factor (Fs) = 0.80-3.1
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 538 mm
Price
