PRODUCT
![]()
ชื่อรุ่น :

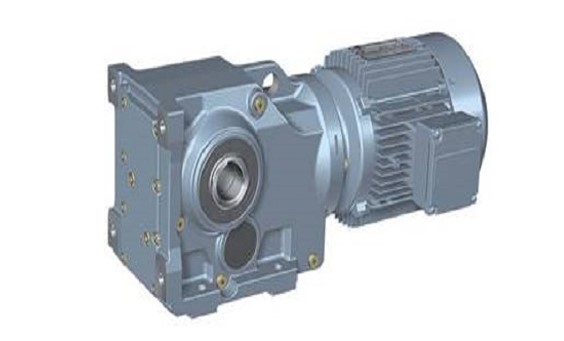

TK Series - 1.1 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 98 - MY100L8
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 3.8-5.4 r/min
Output torque (M2n) = 1940-2760 Nm
Gear unit actual ratio (i) = 123.93-176.05
Service factor (Fs) = 1.55-2.2

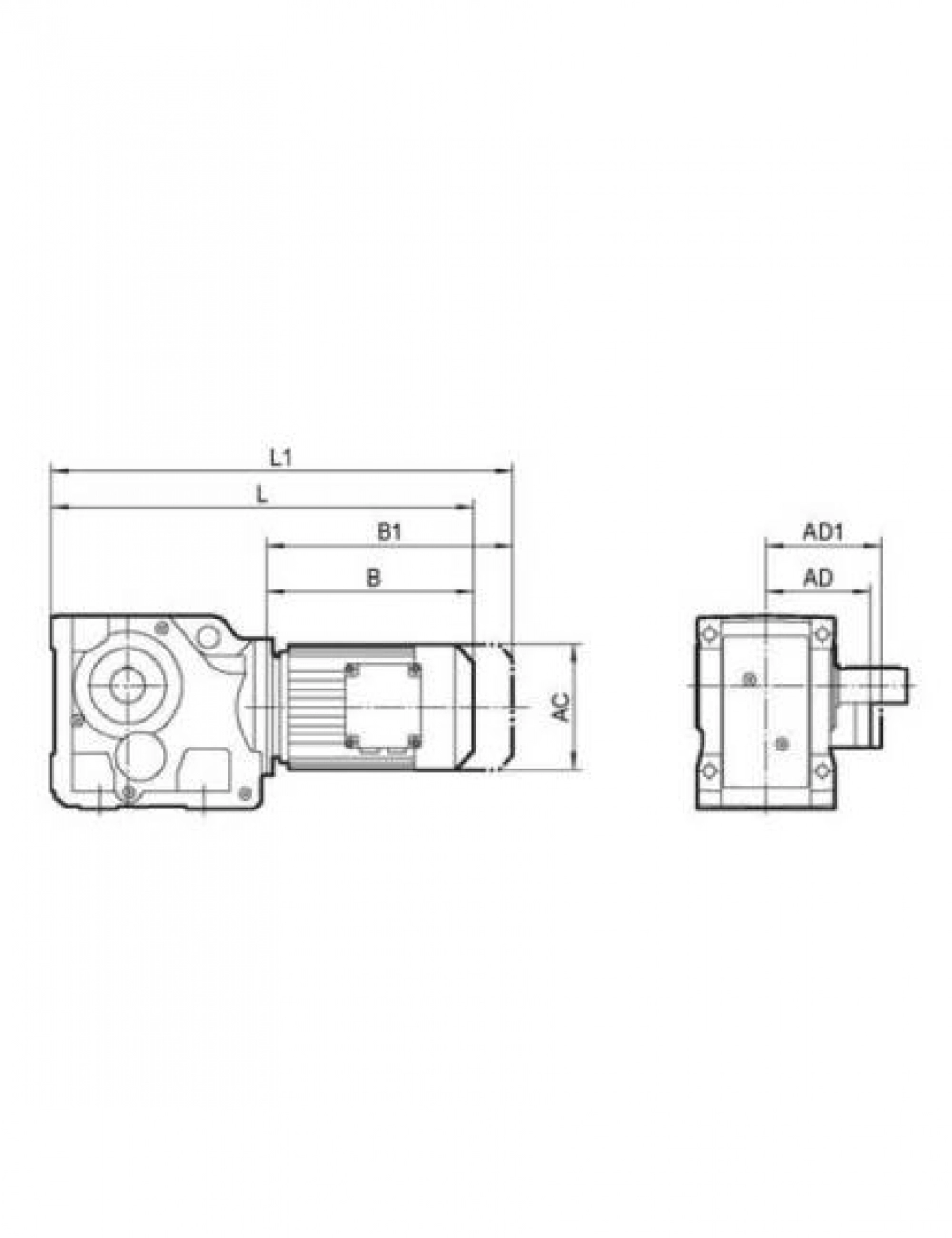

Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 331 mm , L = 768 mm
Price
Model
TK 98 - MY90L6
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 5.2-7.4 r/min
Output torque (M2n) = 1420-2010 Nm
Gear unit actual ratio (i) = 123.93-176.05
Service factor (Fs) = 2.1-3.0
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 251 mm , L = 688 mm
Price
Model
TK 98 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 8.0-10 r/min
Output torque (M2n) = 1050-1320 Nm
Gear unit actual ratio (i) = 140.28-176.05
Service factor (Fs) = 3.3-4.1
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 251 mm , L = 688 mm
Price
Model
TK 88 - MY90L6
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 5.3-7.2 r/min
Output torque (M2n) = 1450-1990 Nm
Gear unit actual ratio (i) = 126.91-174.19
Service factor (Fs) = 1.35-1.85
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 257 mm , L = 646 mm
Price
Model
TK 88 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 8.0-12 r/min
Output torque (M2n) = 870-1310 Nm
Gear unit actual ratio (i) = 115.82-174.19
Service factor (Fs) = 2.1-3.1
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 257 mm , L = 646 mm
Price
Model
TK 78 - MY90L6
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 6.8-9.5 r/min
Output torque (M2n) = 1110-1540 Nm
Gear unit actual ratio (i) = 37-05-135.28
Service factor (Fs) = 1.00-1.40
Dimension : AC =197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 78 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 14-19 r/min
Output torque (M2n) = 555-730 Nm
Gear unit actual ratio (i) = 73.99-97.05
Service factor (Fs) = 2.1-2.8
Dimension : AC =197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 68 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 23-36 r/min
Output torque (M2n) = 290 Nm
Gear unit actual ratio (i) = 455
Service factor (Fs) = 38.39-60.66
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 538 mm
Price
Model
TK 58 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 161-298 r/min
Output torque (M2n) = 35-65 Nm
Gear unit actual ratio (i) = 4.69-8.71
Service factor (Fs) = 6.0-8.5
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 522 mm
Price
Model
TK 48 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 25-72 r/min
Output torque (M2n) = 147-295 Nm
Gear unit actual ratio (i) = 19.58-39.61
Service factor (Fs) = 1.35-2.7
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 269 mm , L = 506 mm
Price
Model
TK 38 - MY90S4
Model description
Rated power (P1n) = 1.1 kW
Output speed (n2) = 47-352 r/min
Output torque (M2n) = 30-225 Nm
Gear unit actual ratio (i) = 3.98-29.96
Service factor (Fs) = 0.90-4.2
Dimension : AC = 197 mm , AD = 154 mm , AD1 =161 mm , B = 276 mm , L = 478 mm
Price
