PRODUCT
![]()
ชื่อรุ่น :

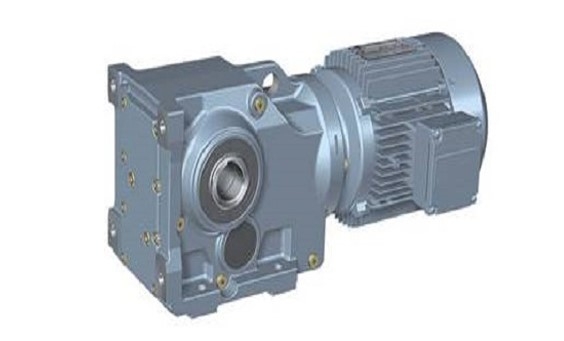

TK Series - 0.75 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 98 - MY100M8
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 3.9-4.9 r/min
Output torque (M2n) = 1460-1830 Nm
Gear unit actual ratio (i) = 140.28-176.05
Service factor (Fs) = 2.4-3.0

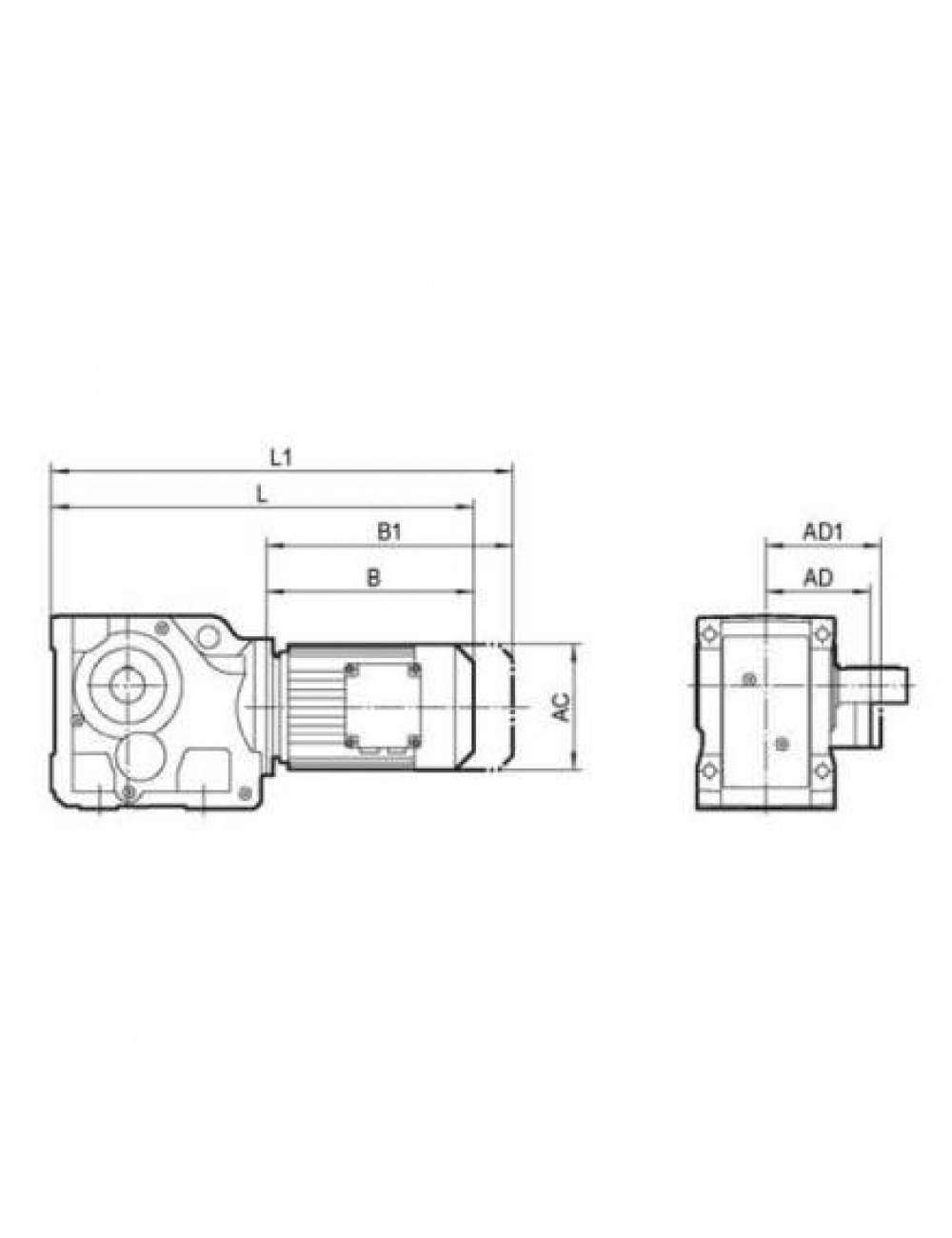

Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 301 mm , L = 738 mm
Price
Model
TK 88 - MY100M8
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 4.7-6.7 r/min
Output torque (M2n) = 1070-1530 Nm
Gear unit actual ratio (i) = 102.71-147.32
Service factor (Fs) = 1.75-2.5
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 307 mm , L = 696 mm
Price
Model
TK 88 - MY90S6
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 5.2-7.1 r/min
Output torque (M2n) = 1010-1390 Nm
Gear unit actual ratio (i) = 126.91-174.19
Service factor (Fs) = 1.95-2.7
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 257 mm , L = 646 mm
Price
Model
TK 88 - MY90N4
Model description
Rated power (P1n) = kW
Output speed (n2) = r/min
Output torque (M2n) = Nm
Gear unit actual ratio (i) =
Service factor (Fs) =
Dimension : AC = mm , AD = mm , AD1 = mm , B = mm , L = mm
Price
Model
TK 78 - MY90S6
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 6.7-10 r/min
Output torque (M2n) = 710-1080 Nm
Gear unit actual ratio (i) = 88.97-135-28
Service factor (Fs) = 1.45-2.2
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 78 - MY80N4
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 9.0-14 r/min
Output torque (M2n) = 505-800 Nm
Gear unit actual ratio (i) = 97.05-154.02
Service factor (Fs) = 1.95-3.1
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 243 mm , L = 557 mm
Price
Model
TK 68 - MY80N4
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 18-24 r/min
Output torque (M2n) = 295-395 Nm
Gear unit actual ratio (i) = 57.28-76.37
Service factor (Fs) = 2.1-2.8
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 518 mm
Price
Model
TK 58 - MY80N4
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 11-31 r/min
Output torque (M2n) = 230-645 Nm
Gear unit actual ratio (i) = 44.43-123-85
Service factor (Fs) = 0.95-2.6
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 502 mm
Price
Model
TK 48 - MY80N4
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 24-44 r/min
Output torque (M2n) = 162-295 Nm
Gear unit actual ratio (i) = 31.30-56.83
Service factor (Fs) = 1.35-2.5
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 486 mm
Price
Model
TK 38 - MY80N4
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 31-347 r/min
Output torque (M2n) = 21-230 Nm
Gear unit actual ratio (i) = 3.98-44.46
Service factor (Fs) = 0.85-6.0
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 256 mm , L = 458 mm
Price
