PRODUCT
![]()
ชื่อรุ่น :

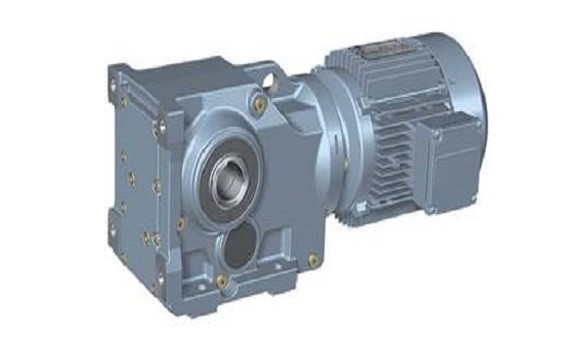

TK Series - 0.12 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 68 - MY63M6
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 6.2 r/min
Output torque (M2n) = 184 Nm
Gear unit actual ratio (i) = 144.79
Service factor (Fs) = 4.5

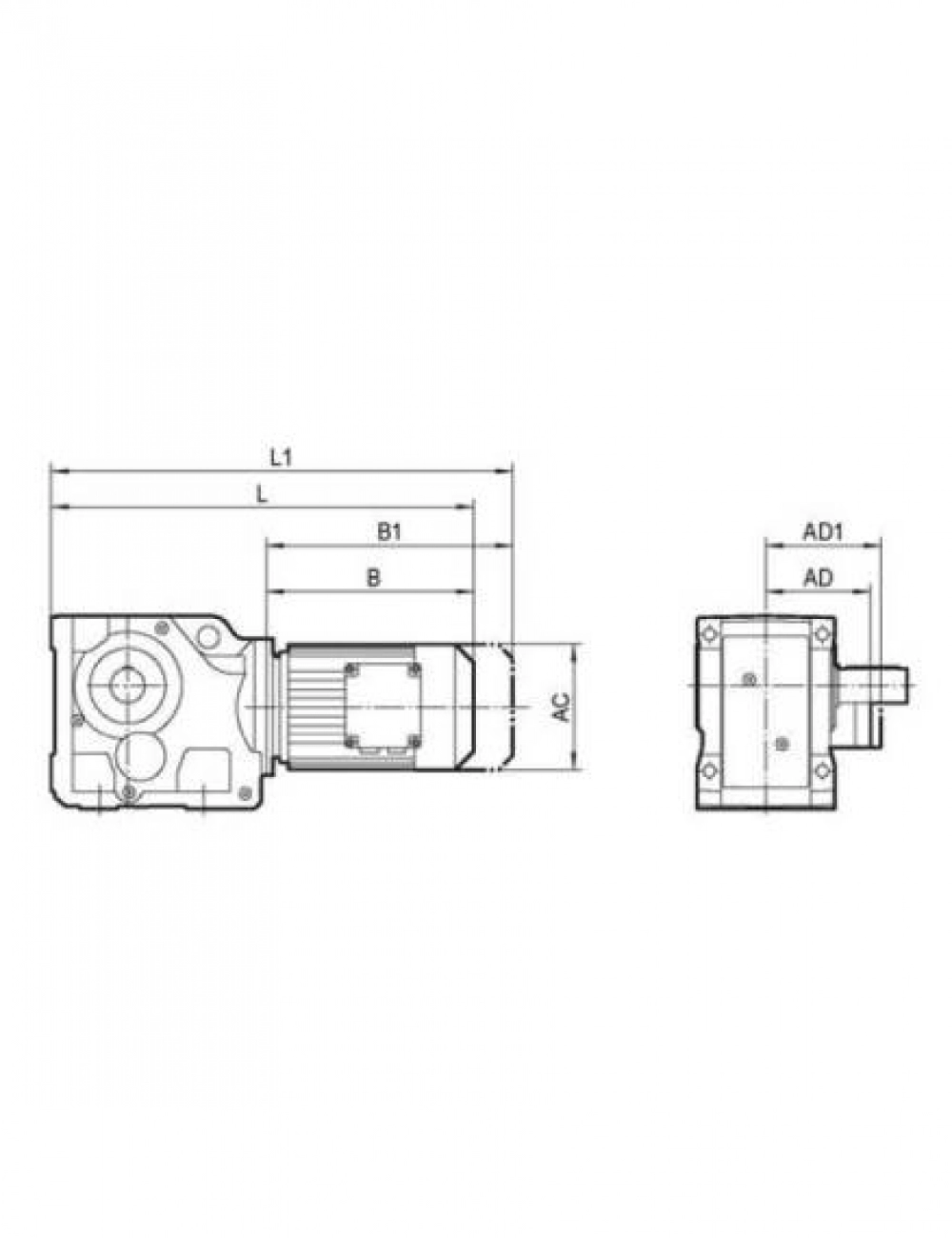

Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 454 mm
Price
Model
TK 58 - MY63M6
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 6.2-12 r/min
Output torque (M2n) = 38-185 Nm
Gear unit actual ratio (i) = 76.56-145.14
Service factor (Fs) = 3.3-6.2
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 438 mm
Price
Model
TK 58 - MY63S4
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 9.5-15 r/min
Output torque (M2n) = 75-121 Nm
Gear unit actual ratio (i) = 30.26-145.14
Service factor (Fs) = 5.0-8.0
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 438 mm
Price
Model
TK 48 - MY63M6
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 6.8-8.6 r/min
Output torque (M2n) = 133-168 Nm
Gear unit actual ratio (i) = 104.37-131.87
Service factor (Fs) = 2.4-3.0
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 422 mm
Price
Model
TK 48 - MY63S4
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 10-11 r/min
Output torque (M2n) = 101-110 Nm
Gear unit actual ratio (i) = 131.87-121.48
Service factor (Fs) = 3.7-4.0
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 422 mm
Price
Model
TK 38 - MY63M6
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 8.5-12 r/min
Output torque (M2n) = 92-136 Nm
Gear unit actual ratio (i) = 72.54-106.38
Service factor (Fs) = 1.50-2.2
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 191mm , L = 393 mm
Price
Model
TK 38 - MY63S4
Model description
Rated power (P1n) = 0.12 kW
Output speed (n2) = 13-114 r/min
Output torque (M2n) = 10-88 Nm
Gear unit actual ratio (i) = 12.14-106.38
Service factor (Fs) = 2.3-16
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 191mm , L = 393 mm
Price
