ชื่อรุ่น :
MPR - 0.75 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
MPR 28B - 80 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 48-181 r/min
Output torque (M2n) = 36-138 Nm
Gear unit actual ratio (ia) = 7.73-29.33
Service factor (Fs) = 0.94-2.2

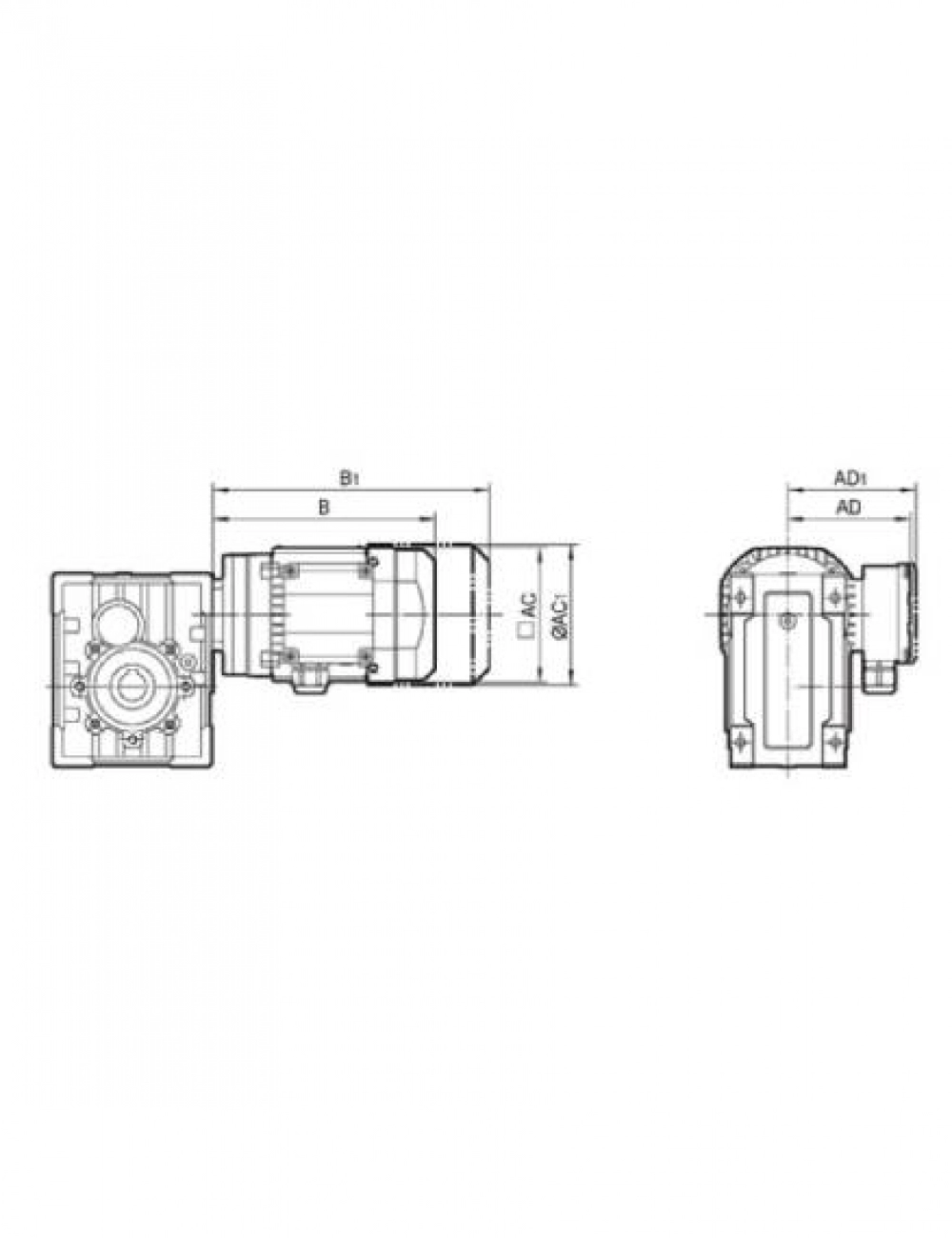

Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 28B - 90 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 72-116 r/min
Output torque (M2n) = 57-91 Nm
Gear unit actual ratio (ia) = 7.73-12.47
Service factor (Fs) = 1.4
Dimension : DE8 = 24 mm , b = 8 mm , t = 27.3 mm , P = 140-200 mm , M = 115-165 mm
Price
Model
MPR 38B - 80 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 29-184 r/min
Output torque (M2n) = 36-229 Nm
Gear unit actual ratio (ia) = 7.60-48.71
Service factor (Fs) = 0.87-3.1
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 38B - 90 B5/B14
Model description
Rated power (P1n) = kW
Output speed (n2) = r/min
Output torque (M2n) = Nm
Gear unit actual ratio (ia) =
Service factor (Fs) =
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 48B - 80 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 24-93 r/min
Output torque (M2n) = 71-280 Nm
Gear unit actual ratio (ia) = 15.09-59.44
Service factor (Fs) = 1.3-2.8
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 48B - 90 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 18.7-120 r/min
Output torque (M2n) = 55-353 Nm
Gear unit actual ratio (ia) = 7.48-48.18
Service factor (Fs) = 0.99-3.7
Dimension : DE8 = 24 mm , b = 8 mm , t = 27.3 mm , P = 140-200 mm , M = 115-165 mm
Price
Model
MPR 58B - 80 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 24-93 r/min
Output torque (M2n) = 71-278 Nm
Gear unit actual ratio (ia) = 15.09-59.04
Service factor (Fs) = 1.8-4.2
Dimension : DE8 = 24 mm , b = 8 mm , t = 27.3 mm , P = 200 mm , M = 165 mm
Price
Model
MPR 58B - 90 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 15.2-60 r/min
Output torque (M2n) = 110-432 Nm
Gear unit actual ratio (ia) = 15.09-59.04
Service factor (Fs) = 1.2-2.7
Dimension : DE8 = 24 mm , b = 8 mm , t = 27.3 mm , P = 200 mm , M = 165 mm
Price
Model
MPR 68B - 80 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 24-34 r/min
Output torque (M2n) = 194-279 Nm
Gear unit actual ratio (ia) = 41.26-59.22
Service factor (Fs) = 2.7-3.9
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 200 mm , M = 165 mm
Price
Model
MPR 68B - 90 B5/B14
Model description
Rated power (P1n) = 0.75 kW
Output speed (n2) = 15.2-43 r/min
Output torque (M2n) = 152-434 Nm
Gear unit actual ratio (ia) = 20.73-59.22
Service factor (Fs) = 1.7-4.3
Dimension : DE8 = 24 mm , b = 8 mm , t = 27.3 mm , P = 200 mm , M = 165 mm
Price
