PRODUCT
![]()
ชื่อรุ่น :
MPR - 0.37 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
MPR 28B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 24-181 r/min
Output torque (M2n) = 17.9-136 Nm
Gear unit actual ratio (ia) = 7.73-58.36
Service factor (Fs) = 0.96-4.5

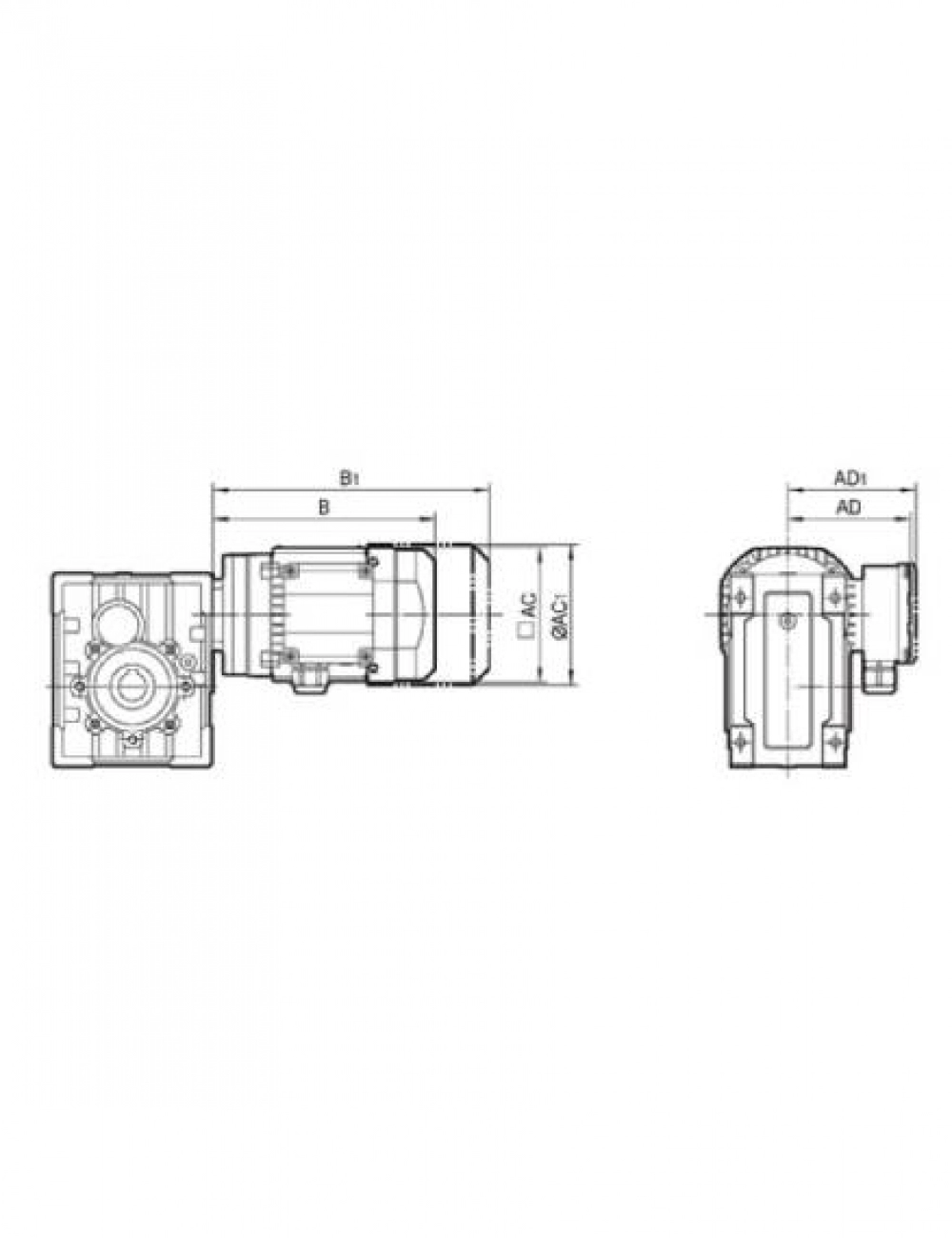

Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 105-160 mm , M = 85-130 mm
Price
Model
MPR 28B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 22-116 r/min
Output torque (M2n) = 28-145 Nm
Gear unit actual ratio (ia) = 7.73-40.09
Service factor (Fs) = 0.90-2.9
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 38B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 23-95 r/min
Output torque (M2n) = 34-140 Nm
Gear unit actual ratio (ia) = 14.67-60.50
Service factor (Fs) = 1.4-3.2
Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 105 mm , M = 85 mm
Price
Model
MPR 38B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 14.9-118 r/min
Output torque (M2n) = 27-219 Nm
Gear unit actual ratio (ia) = 7.60-60.50
Service factor (Fs) = 0.92-4.0
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 48B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 24-35 r/min
Output torque (M2n) = 93-138 Nm
Gear unit actual ratio (ia) = 40.13-59.44
Service factor (Fs) = 2.5-3.2
Dimension : DE8 =14 mm , b = 5 mm , t = 16.3 mm , P = 160 mm , M = 130 mm
Price
Model
MPR 48B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 15.1-60 r/min
Output torque (M2n) = 55-215 Nm
Gear unit actual ratio (ia) = 15.09-59.44
Service factor (Fs) = 1.6-3.7
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPR 58B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 24-29 r/min
Output torque (M2n) = 112-137 Nm
Gear unit actual ratio (ia) = 48.18-59.04
Service factor (Fs) = 3.6-4.5
Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 160 mm , M = 130 mm
Price
Model
MPR 58B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 15.2-22 r/min
Output torque (M2n) = 145-213 Nm
Gear unit actual ratio (ia) = 40.13-59.04
Service factor (Fs) = 2.3-3.3
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120 mm , M = 100 mm
Price
Model
MPR 68B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 15.2-18.4 r/min
Output torque (M2n) = 176-214 Nm
Gear unit actual ratio (ia) = 48.86-59.22
Service factor (Fs) = 3.5-4.2
Dimension : DE8 = mm , b = mm , t = mm , P = mm , M = mm
Price
