PRODUCT
![]()
ชื่อรุ่น :
MPB - 0.37 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
MPB 38B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 29-95 r/min
Output torque (M2n) = 34-113 Nm
Gear unit actual ratio (ia) = 14.67-48.71
Service factor (Fs) = 1.8-3.2

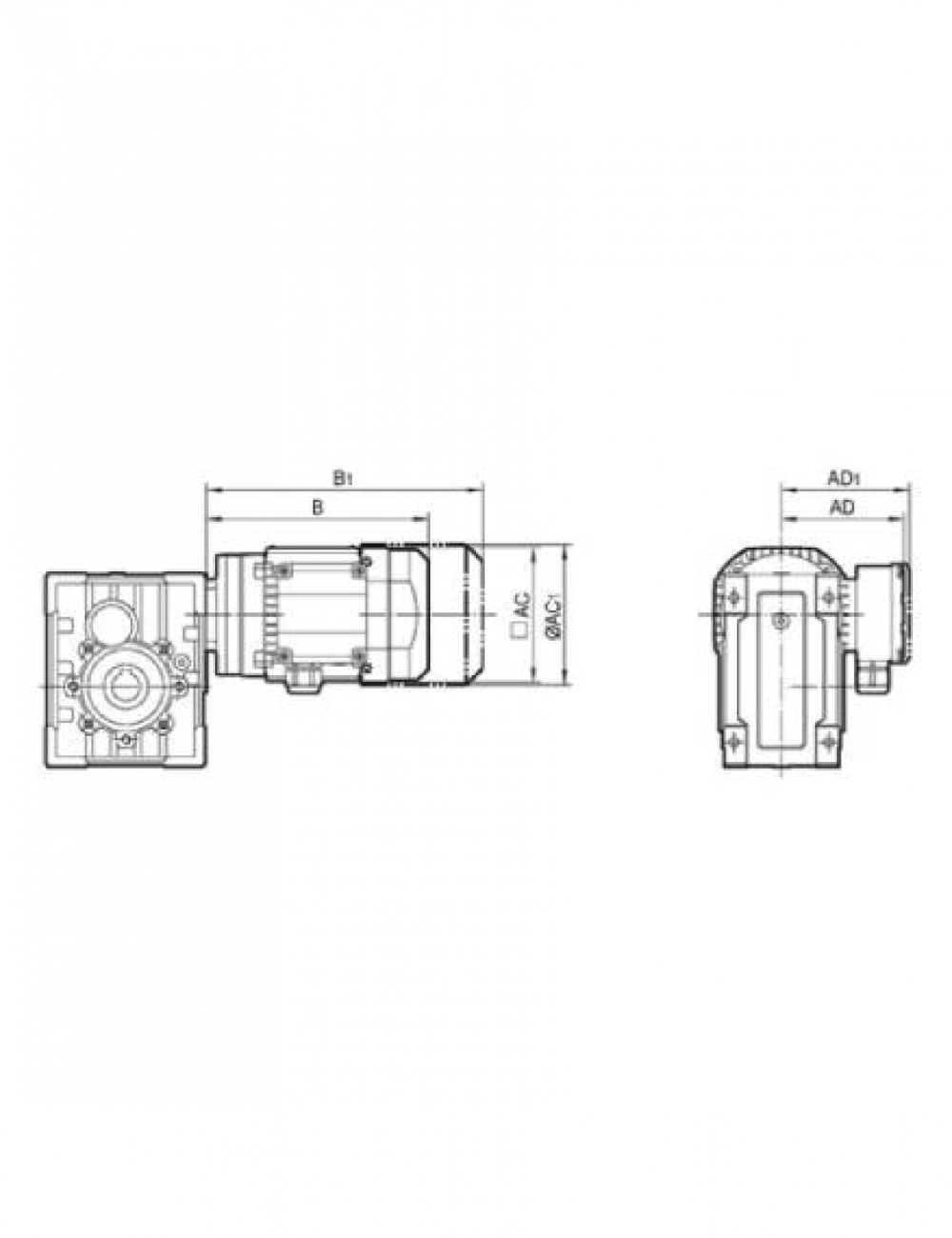

Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 105-160 mm , M = 85-130 mm
Price
Model
MPB 38B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 18.5-118 r/min
Output torque (M2n) = 27-176 Nm
Gear unit actual ratio (ia) = 7.60-48.71
Service factor (Fs) = 1.1-4.0
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPB 48B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 29-35 r/min
Output torque (M2n) = 93-112 Nm
Gear unit actual ratio (ia) = 40.13-48.18
Service factor (Fs) = 3.1-3.2
Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 160 mm , M = 130 mm
Price
Model
MPB 48B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 18.7-60 r/min
Output torque (M2n) = 55-174 Nm
Gear unit actual ratio (ia) = 15.09-48.18
Service factor (Fs) = 2.0-3.7
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPB 58B - 71 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 29 r/min
Output torque (M2n) = 112 Nm
Gear unit actual ratio (ia) = 48.18
Service factor (Fs) = 4.5
Dimension : DE8 = 14 mm , b = 5 mm , t = 16.3 mm , P = 160 mm , M = 130 mm
Price
Model
MPB 58B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 18.7-22 r/min
Output torque (M2n) = 145-174 Nm
Gear unit actual ratio (ia) = 40.13-48.18
Service factor (Fs) = 2.9-3.3
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 120-200 mm , M = 100-165 mm
Price
Model
MPB 68B - 80 B5/B14
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 18.4 r/min
Output torque (M2n) = 176 Nm
Gear unit actual ratio (ia) = 48.86
Service factor (Fs) = 4.2
Dimension : DE8 = 19 mm , b = 6 mm , t = 21.8 mm , P = 200 mm , M = 165 mm
Price
