PRODUCT
![]()
ชื่อรุ่น :
8 Groove SPZ
แบรนด์
SKF
รายละเอียด :
Pulleys SPZ 8 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 8SPZ140TB
Model description
Bush no. 2517

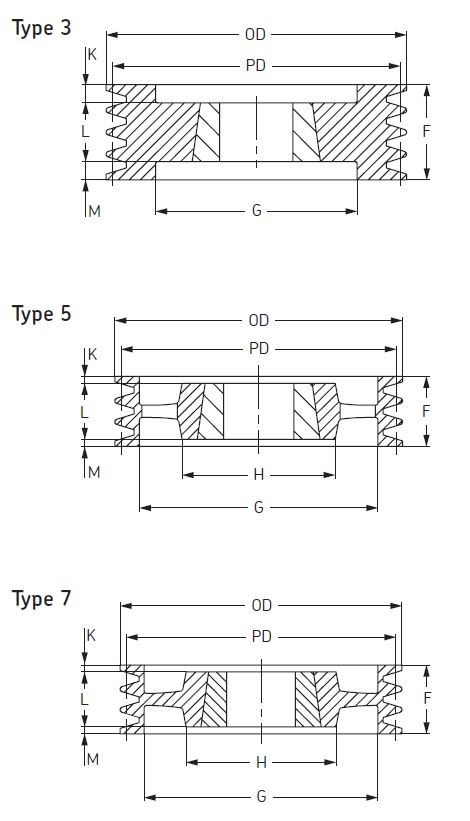

DIMENSIONS : Pitch diameter = 140 mm , OD = 144 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 100 mm
Price
Model
PHP 8SPZ150TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 150 mm , OD = 154 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 100 mm
Price
Model
PHP 8SPZ160TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 160 mm , OD = 164 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 100 mm
Price
Model
PHP 8SPZ180TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 180 mm , OD = 184 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 60 mm ,F = 100 mm
Price
Model
PHP 8SPZ200TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 200 mm , OD = 204 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 100 mm
Price
Model
PHP 8SPZ224TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 224 mm , OD = 228 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 100 mm
Price
Model
PHP 8SPZ250TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 250 mm , OD = 254 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 100 mm , H = 150 mm
Price
Model
PHP 8SPZ280TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 280 mm , OD = 284 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 100 mm , H = 150 mm
Price
Model
PHP 8SPZ355TB
Model description
Bush no. 3030
DIMENSIONS : Pitch diameter = 355 mm , OD = 359 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 75 mm ,F = 100 mm , H = 150 mm
Price
Model
PHP 8SPZ400TB
Model description
Bush no. 3030
DIMENSIONS : Pitch diameter = 400 mm , OD = 404 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 75 mm ,F = 100 mm , H = 150 mm
Price
Model
PHP 8SPZ450TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 450 mm , OD = 454 mm , Pulley Type = 5 , Bore min =35 mm , Bore max = 90 mm ,F = 100 mm , H = 170 mm
Price
