PRODUCT
![]()
ชื่อรุ่น :
2 Groove SPZ
แบรนด์
SKF
รายละเอียด :

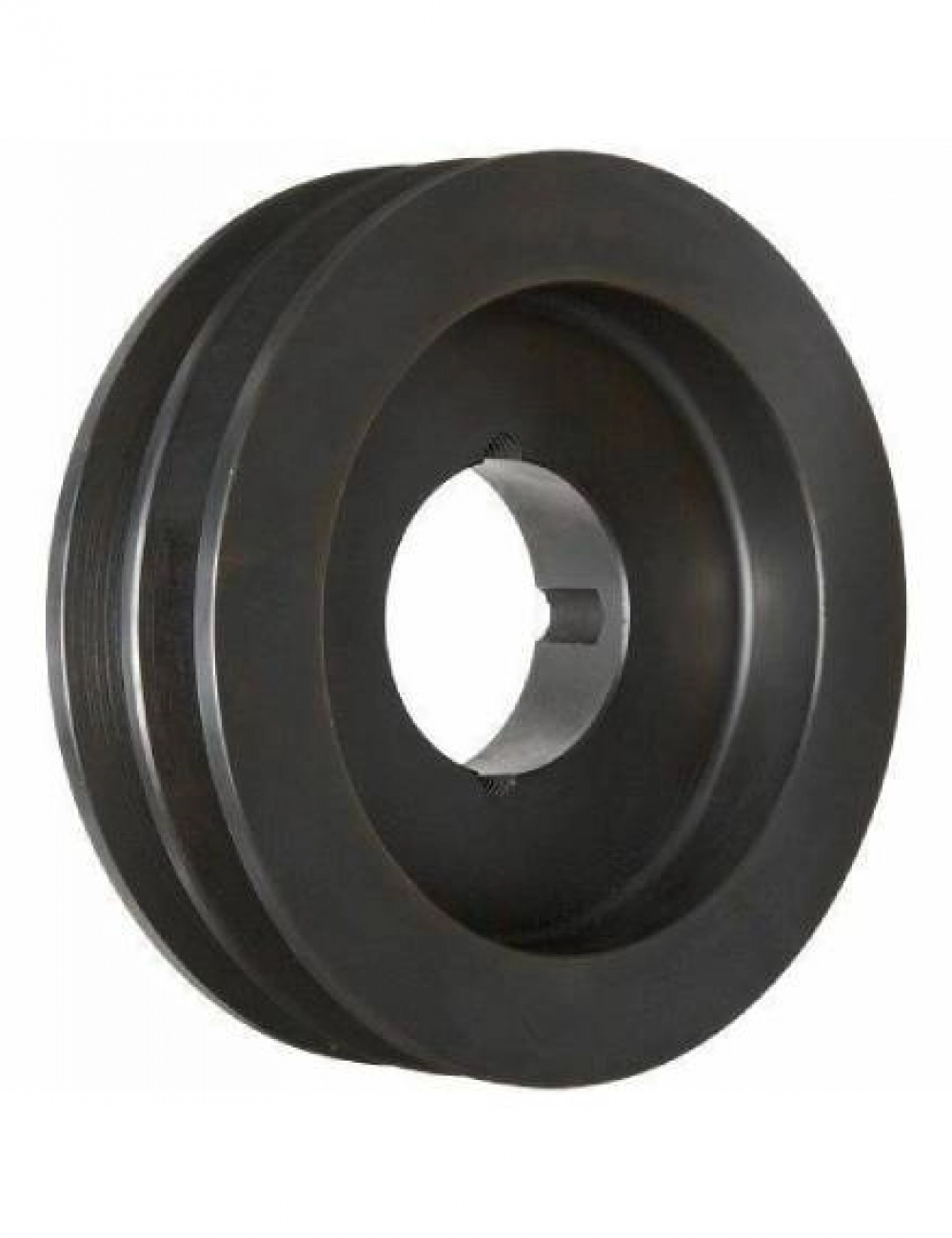

Pulleys SPZ 2 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 2SPZ50TB
Model description
Bush no. 1008

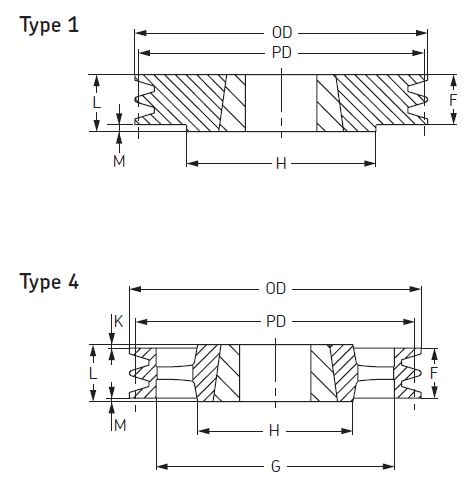

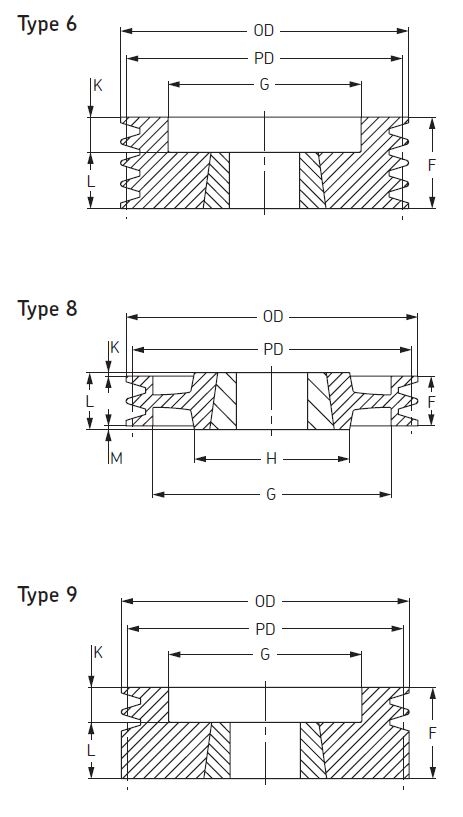

DIMENSIONS : Pitch diameter = 50 mm , OD = 54 mm , Pulley Type = 9 , Bore min = 9 mm , Bore max = 25 mm ,F = 49 mm
Price
Model
PHP 2SPZ56TB
Model description
Bush no. 1008
DIMENSIONS : Pitch diameter = 56 mm , OD = 60 mm , Pulley Type = 9 , Bore min = 9 mm , Bore max = 25 mm ,F = 49 mm
Price
Model
PHP 2SPZ60TB
Model description
Bush no. 1008
DIMENSIONS : Pitch diameter = 60 mm , OD = 64 mm , Pulley Type = 9 , Bore min = 9 mm , Bore max = 25 mm ,F = 49 mm
Price
Model
PHP 2SPZ63TB
Model description
Bush no. 1108
DIMENSIONS : Pitch diameter = 63 mm , OD = 67 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = 28 mm
Price
Model
PHP 2SPZ67TB
Model description
Bush no. 1108
DIMENSIONS : Pitch diameter = 67 mm , OD = 71 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = 28 mm
Price
Model
PHP 2SPZ71TB
Model description
Bush no. 1108
DIMENSIONS : Pitch diameter = 71 mm , OD = 75 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = mm
Price
Model
PHP 2SPZ75TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 75 mm , OD = 79 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 28 mm
Price
Model
PHP 2SPZ80TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 80 mm , OD = 84 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 28 mm
Price
Model
PHP 2SPZ85TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 85 mm , OD = 89 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ90TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 90 mm , OD = 94 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ95TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 95 mm , OD = 99 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ100TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 100 mm , OD = 104 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ106TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 106 mm , OD = 110 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ112TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 112 mm , OD = 116 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ118TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 118 mm , OD = 122 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ125TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 125 mm , OD = 129 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ132TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 132 mm , OD = 136 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ140TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 140 mm , OD = 144 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm
Price
Model
PHP 2SPZ150TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 150 mm , OD = 154 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ160TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 160 mm , OD = 164 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ170TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 170 mm , OD = 174 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ180TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 180 mm , OD = 184 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ190TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 190 mm , OD = 194 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ200TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 200 mm , OD = 204 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ224TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 224 mm , OD = 228 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ250TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 250 mm , OD = 254 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ280TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 280 mm , OD = 284 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ315TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 315 mm , OD = 319 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 100 mm
Price
Model
PHP 2SPZ355TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 355 mm , OD = 359 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , H = 112 mm
Price
Model
PHP 2SPZ400TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 400 mm , OD = 404 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 28 mm , H = 120 mm
Price
Model
PHP 2SPZ450TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 450 mm , OD = 454 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 28 mm , H = 120 mm
Price
