ชื่อรุ่น :
5 Groove SPB
แบรนด์
SKF
รายละเอียด :

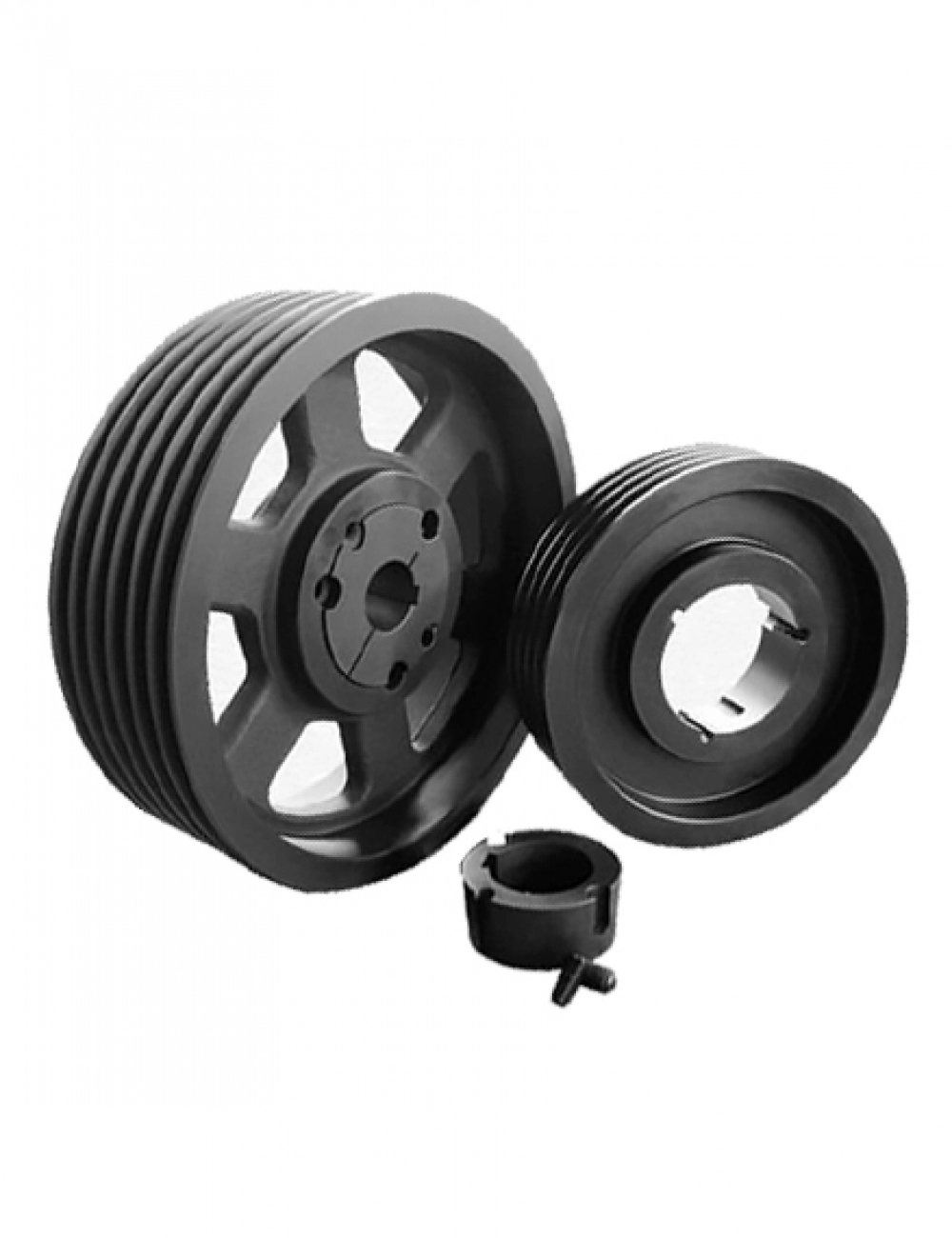

Pulleys SPB 5 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 5SPB125TB
Model description
Bush no. 2012

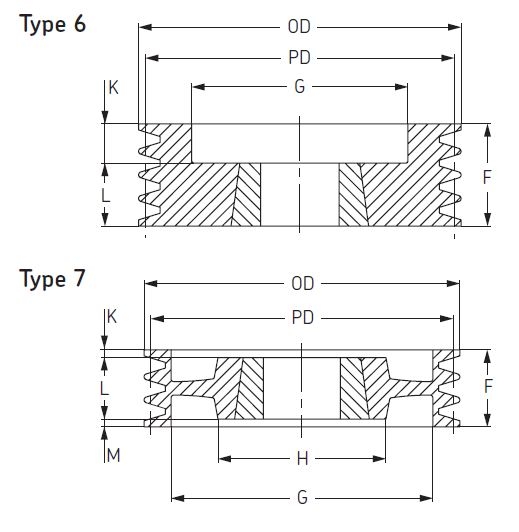

DIMENSIONS : Pitch diameter = 125 mm , OD = 132 mm , Pulley Type = 6 , Bore min =14 mm , Bore max = 50 mm ,F = 101 mm
Price
Model
PHP 5SPB132TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 132 mm , OD = 139 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 101 mm
Price
Model
PHP 5SPB140TB
Model description
Bush no. 2517

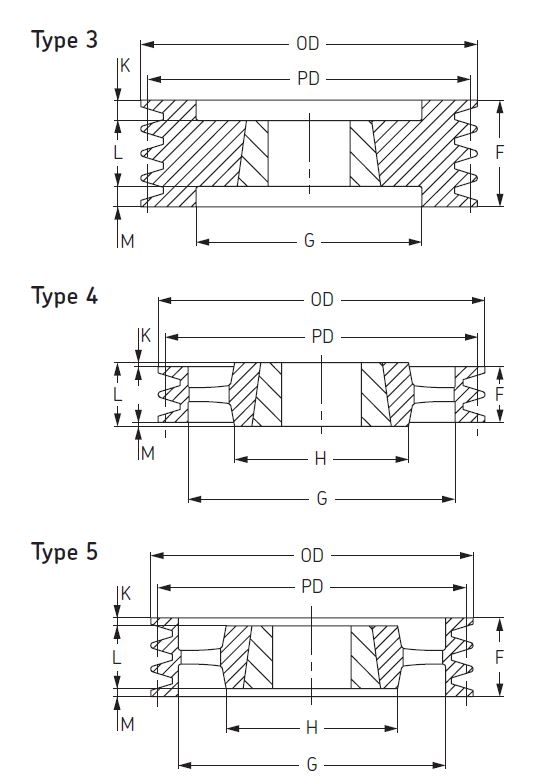

DIMENSIONS : Pitch diameter = 140 mm , OD = 147 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 101 mm
Price
Model
PHP 5SPB150TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 150 mm , OD = 157 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 101 mm
Price
Model
PHP 5SPB160TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 160 mm , OD = 167 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 101 mm
Price
Model
PHP 5SPB170TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 170 mm , OD = 177 mm , Pulley Type =3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB180TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 180 mm , OD = 187 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB190TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 190 mm , OD = 197 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB200TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 200 mm , OD = 207 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB212TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 212 mm , OD = 219 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB224TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 224 mm , OD = 231 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 101 mm
Price
Model
PHP 5SPB236TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 236 mm , OD = 243 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm
Price
Model
PHP 5SPB250TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 250 mm , OD = 257 mm , Pulley Type = 3 , Bore min = 35mm , Bore max = 90 mm ,F = 101 mm
Price
Model
PHP 5SPB280TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 280 mm , OD = 287 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB300TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 300 mm , OD = 307 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB315TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 315 mm , OD = 322 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB335TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 335 mm , OD = 342 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB355TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 355 mm , OD = 362 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB400TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 400 mm , OD = 407 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm
Price
Model
PHP 5SPB450TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 450 mm , OD = 457 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm
Price
Model
PHP 5SPB500TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 500 mm , OD = 507 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 90 mm ,F = 101 mm , H = 170 mm
Price
Model
PHP 5SPB560TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 560 mm , OD = 567 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 100 mm ,F = 101 mm , H = 200 mm
Price
Model
PHP 5SPB630TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 630 mm , OD = 637 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 100 mm ,F = 101 mm , H = 200 mm
Price
Model
PHP 5SPB710TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 710 mm , OD = 717 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F = 101 mm , H = 200 mm
Price
Model
PHP 5SPB800TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 800 mm , OD = 807 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F =101 mm , H = 200 mm
Price
Model
PHP 5SPB900TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 900 mm , OD = 907 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F =101 mm , H = 200 mm
Price
Model
PHP 5SPB1000TB
Model description
Bush no. 4545
DIMENSIONS : Pitch diameter = 1000 mm , OD = 1007 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 110 mm ,F = 101 mm , H = 225 mm
Price
Model
PHP 5SPB1250TB
Model description
Bush no. 4545
DIMENSIONS : Pitch diameter = 1250 mm , OD = 1257 mm , Pulley Type = 4 , Bore min = 70 mm , Bore max = 110 mm ,F = 101 mm , H = 225 mm
Price
