PRODUCT
![]()
ชื่อรุ่น :
4 Groove SPB
แบรนด์
SKF
รายละเอียด :

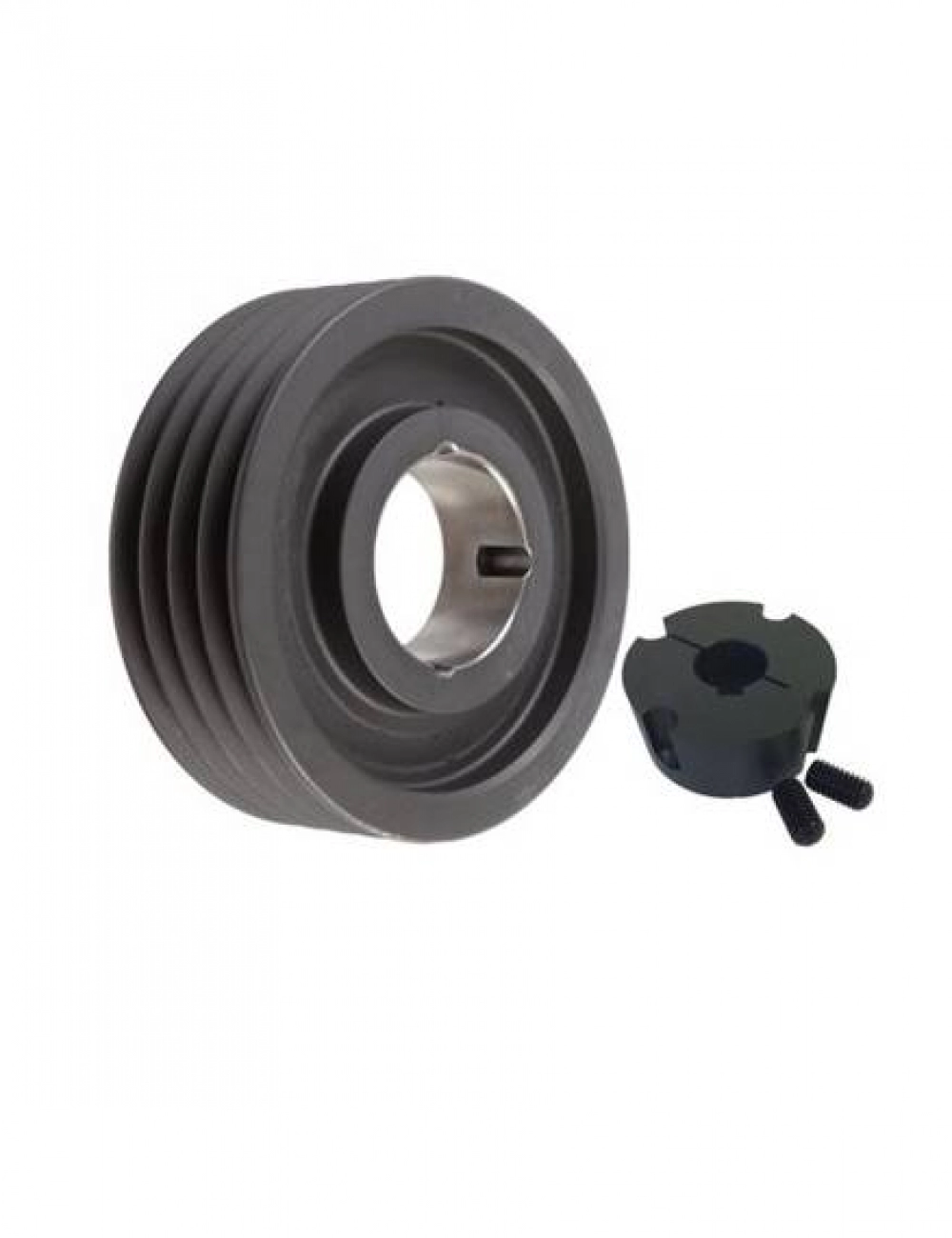

Pulleys SPB 4 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 4SPB100TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 100 mm , OD = 107 mm , Pulley Type = 3 , Bore min = 11 mm , Bore max = 32 mm ,F = 82 mm
Price
Model
PHP 4SPB106TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 106 mm , OD = 113 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 42 mm ,F = 82 mm
Price
Model
PHP 4SPB112TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 112 mm , OD = 119 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 42 mm ,F = 82 mm
Price
Model
PHP 4SPB118TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 118 mm , OD = 125 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 42 mm ,F = 82 mm
Price
Model
PHP 4SPB125TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 125 mm , OD = 132 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 50 mm ,F = 82 mm
Price
Model
PHP 4SPB132TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 132 mm , OD =1 39 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 50 mm ,F = 82 mm
Price
Model
PHP 4SPB140TB
Model description
Bush no.2517
DIMENSIONS : Pitch diameter = 140 mm , OD = 147 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB150TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 150 mm , OD = 157 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB160TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 160 mm , OD = 167 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB170TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 170 mm , OD = 177 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB180TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 180 mm , OD = 187 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB190TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 190 mm , OD = 197 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 82 mm
Price
Model
PHP 4SPB200TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 200 mm , OD = 207 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 82 mm
Price
Model
PHP 4SPB212TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 212 mm , OD = 219 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 75 mm
Price
Model
PHP 4SPB224TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 224 mm , OD = 231 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 82 mm
Price
Model
PHP 4SPB236TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 236 mm , OD = 243 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 82 mm
Price
Model
PHP 4SPB250TB
Model description
Bush no. 3020

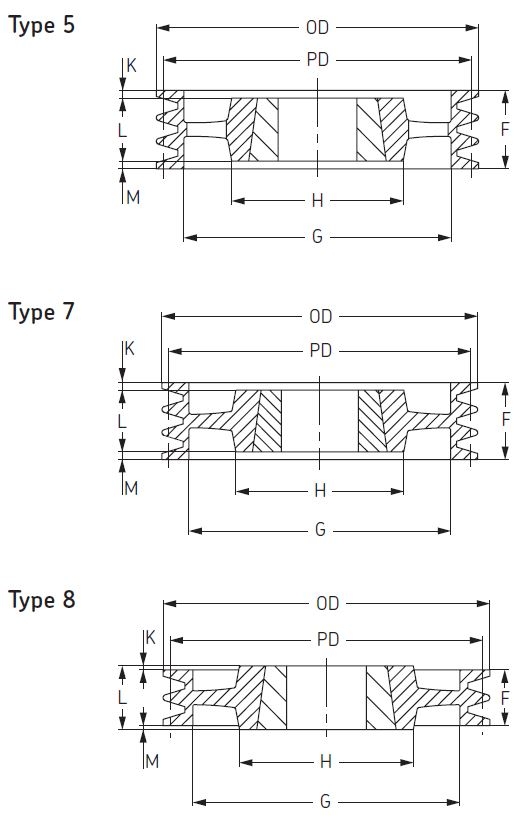

DIMENSIONS : Pitch diameter = 250 mm , OD = 257 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 75 mm , H = 150 mm
Price
Model
PHP 4SPB280TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 280 mm , OD = 287 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 85 mm , H = 150 mm
Price
Model
PHP 4SPB300TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 300 mm , OD = 307 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 150 mm
Price
Model
PHP 4SPB315TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 315 mm , OD = 322 mm , Pulley Type = 8 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB335TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 335 mm , OD = 342 mm , Pulley Type = 8 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB355TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 355 mm , OD = 362 mm , Pulley Type = 8 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB400TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 400 mm , OD = 407 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 357mm , H = 170 mm
Price
Model
PHP 4SPB450TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 450 mm , OD = 457 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB500TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 500 mm , OD = 507 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB560TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 560 mm , OD = 567 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB630TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 630 mm , OD = 637 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 170 mm
Price
Model
PHP 4SPB710TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 710 mm , OD = 717 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 82 mm , H = 187 mm
Price
Model
PHP 4SPB800TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 800 mm , OD = 807 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F = 82 mm , H = 200 mm
Price
Model
PHP 4SPB900TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 900 mm , OD = 907 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F = 82 mm , H = 216 mm
Price
Model
PHP 4SPB1000TB
Model description
Bush no. 4040
DIMENSIONS : Pitch diameter = 1000 mm , OD = 1007 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F = 82 mm , H = 216 mm
Price
Model
PHP 4SPB1250TB
Model description
Bush no. 4545
DIMENSIONS : Pitch diameter = 1250 mm , OD = 1257 mm , Pulley Type = 4 , Bore min = 70 mm , Bore max = 110 mm ,F = 82 mm , H = 225 mm
Price
