PRODUCT
![]()
ชื่อรุ่น :
5 Groove SPA
แบรนด์
SKF
รายละเอียด :

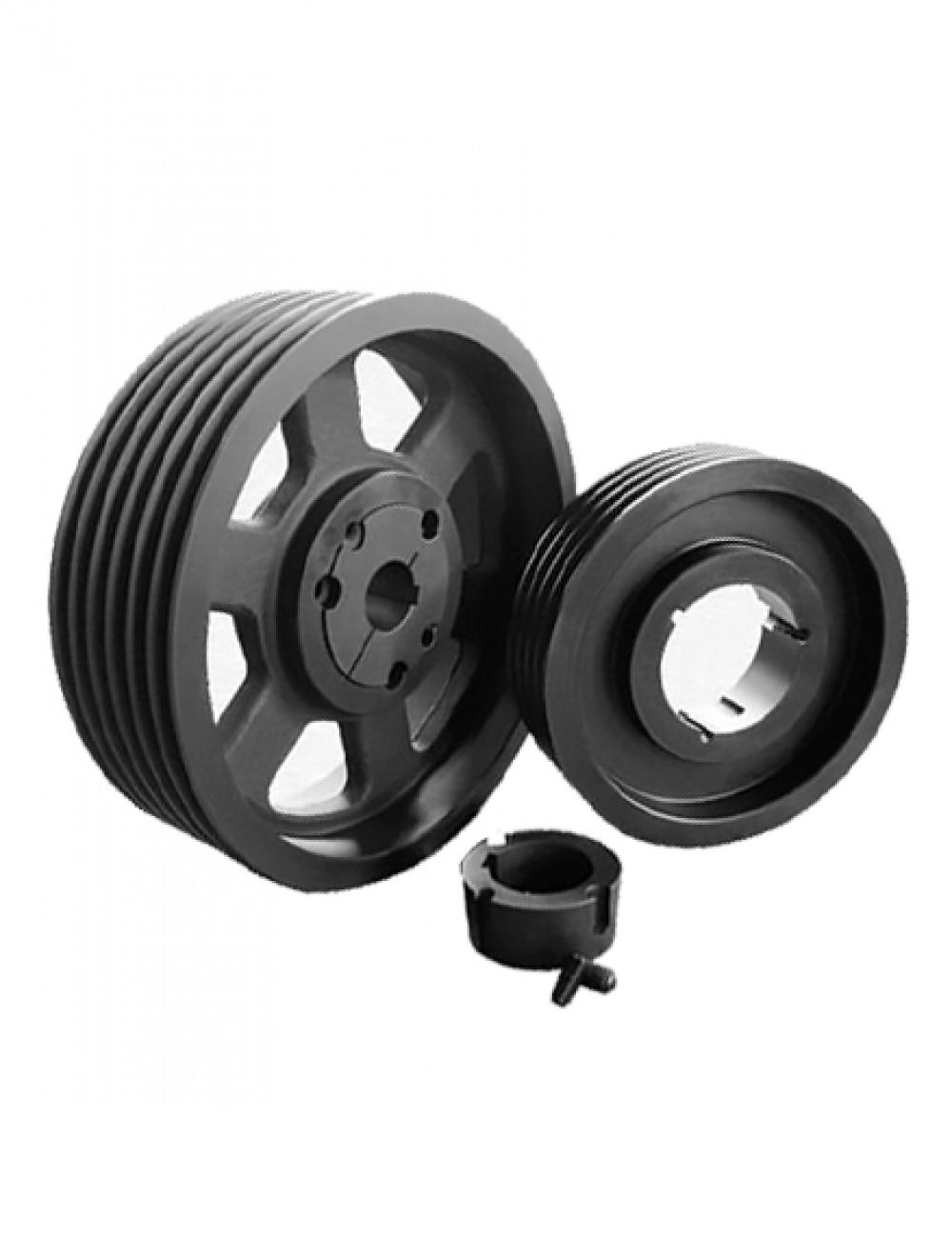

Pulleys SPA 5 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 5SPA100TB
Model description
Bush no. 1615

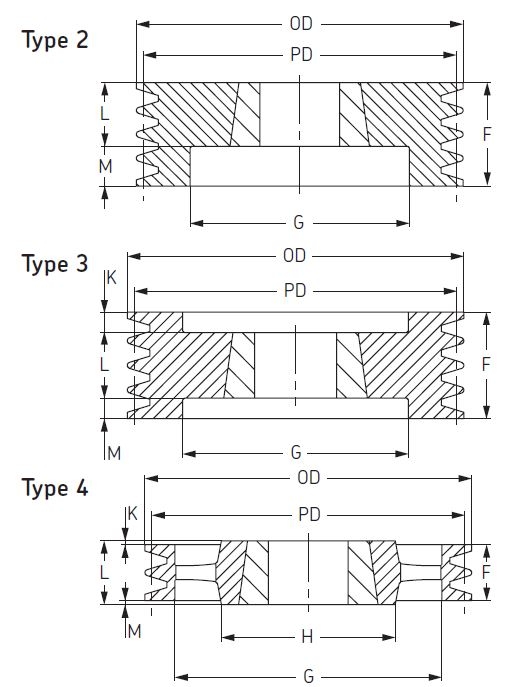

DIMENSIONS : Pitch diameter = 100 mm , OD = 105.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max =42 mm ,F = 80 mm
Price
Model
PHP 5SPA106TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 106 mm , OD = 111.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 80 mm
Price
Model
PHP 5SPA112TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 112 mm , OD = 117.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 80 mm
Price
Model
PHP 5SPA118TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 118 mm , OD = 123.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 80 mm
Price
Model
PHP 5SPA125TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 125 mm , OD = 130.5 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 50 mm ,F = 80 mm
Price
Model
PHP 5SPA132TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 132 mm , OD = 137.5 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 80 mm
Price
Model
PHP 5SPA140V
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 140 mm , OD =145.5 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 80 mm
Price
Model
PHP 5SPA150TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 150 mm , OD = 155.5 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 80 mm
Price
Model
PHP 5SPA160TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 160 mm , OD = 165.5 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 80 mm
Price
Model
PHP 5SPA170TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 170 mm , OD = 175.5 mm , Pulley Type = 3 , Bore min = 16 mm , Bore max = 60 mm ,F = 80 mm
Price
Model
PHP 5SPA180TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 180 mm , OD = 185.5 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm
Price
Model
PHP 5SPA190TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 190 mm , OD = 195.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm
Price
Model
PHP 5SPA200TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 200 mm , OD = 205.5 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm
Price
Model
PHP 5SPA212TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 212 mm , OD = 217.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm
Price
Model
PHP 5SPA224TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 224 mm , OD = 229.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm
Price
Model
PHP 5SPA250TB
Model description
Bush no. 3020

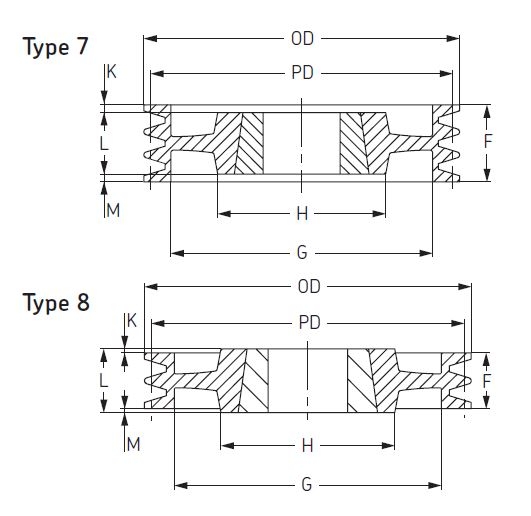

DIMENSIONS : Pitch diameter = 250 mm , OD = 255.5 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 80 mm , H = 150 mm
Price
Model
PHP 5SPA280TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 280 mm , OD = 285.5 mm , Pulley Type = 8 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA315TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 315 mm , OD = 320.5 mm , Pulley Type = 8 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA355TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 355 mm , OD = 360.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA400TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 400 mm , OD = 405.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA450TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 450 mm , OD = 455.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA500TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 500 mm , OD = 505.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA560TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 560 mm , OD = 565.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA630TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 630 mm , OD = 635.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 80 mm , H = 170 mm
Price
Model
PHP 5SPA800TB
Model description
Bush no. 4030
DIMENSIONS : Pitch diameter = 800 mm , OD = 805.5 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 100 mm ,F = 80 mm , H = 216 mm
Price
Model
PHP 5SPA1000TB
Model description
Bush no. 4545
DIMENSIONS : Pitch diameter = 1000 mm , OD = 1005.5 mm , Pulley Type = 4 , Bore min = 55 mm , Bore max = 110 mm ,F = 80 mm , H = 225 mm
Price
