PRODUCT
![]()
ชื่อรุ่น :
3 Groove SPA
แบรนด์
SKF
รายละเอียด :

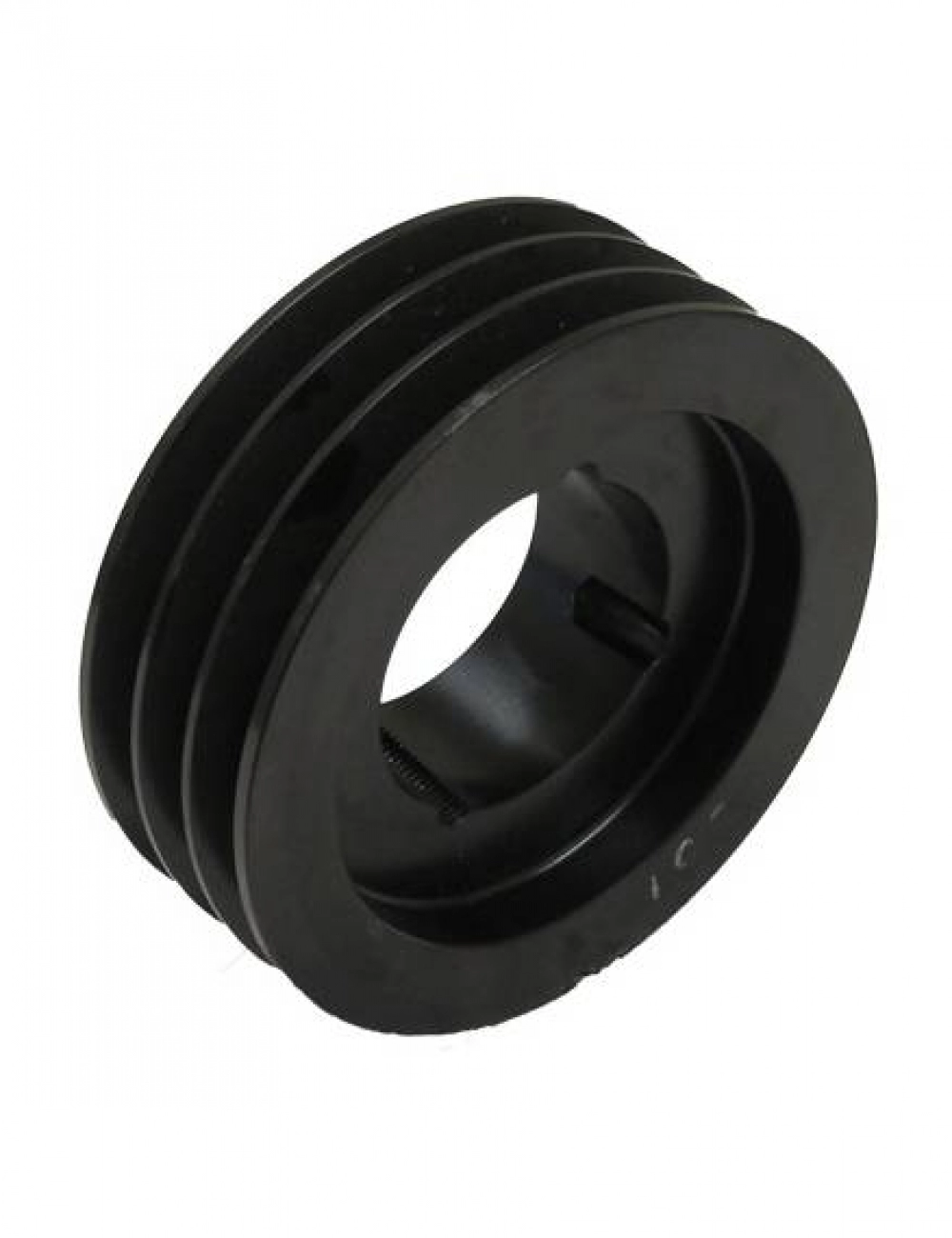

Pulleys SPA 3 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 3SPA71TB
Model description
Bush no. 1108

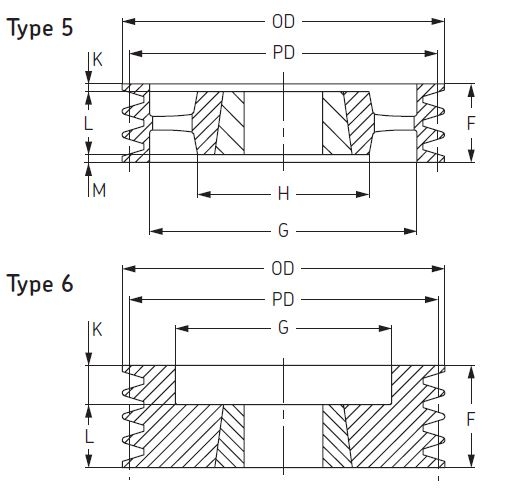

DIMENSIONS : Pitch diameter = 71 mm , OD = 76.5 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max =28 mm ,F = 50 mm
Price
Model
PHP 3SPA75TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 75 mm , OD = 80.5 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 32 mm ,F = 50 mm
Price
Model
PHP 3SPA80TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 80 mm , OD = 85.5 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 50 mm
Price
Model
PHP 3SPA85TB
Model description
Bush no. 1210
DIMENSIONS : Pitch diameter = 85 mm , OD = 90.5 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 50 mm
Price
Model
PHP 3SPA90TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 90 mm , OD = 95.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 50 mm
Price
Model
PHP 3SPA95TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 95 mm , OD = 100.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 50 mm
Price
Model
PHP 3SPA100TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 100 mm , OD = 105.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 42 mm ,F = 50 mm
Price
Model
PHP 3SPA106TB
Model description
Bush no. 1610
DIMENSIONS : Pitch diameter = 106 mm , OD = 111.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 42 mm ,F = 50 mm
Price
Model
PHP 3SPA112TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 112 mm , OD = 117.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 50 mm
Price
Model
PHP 3SPA118TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 118 mm , OD = 123.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 50 mm
Price
Model
PHP 3SPA125TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 125 mm , OD = 130.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 50 mm
Price
Model
PHP 3SPA132TB
Model description
Bush no. 2012
DIMENSIONS : Pitch diameter = 132 mm , OD = 137.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 50 mm
Price
Model
PHP 3SPA140TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 140 mm , OD = 145.5 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA150TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 150 mm , OD = 155.5 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA160TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 160 mm , OD = 165.5 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA170TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 170 mm , OD = 175.5 mm , Pulley Type =6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA180TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 180 mm , OD = 185.5 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA190TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 190 mm , OD = 195.5 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm
Price
Model
PHP 3SPA200TB
Model description
Bush no. 2517

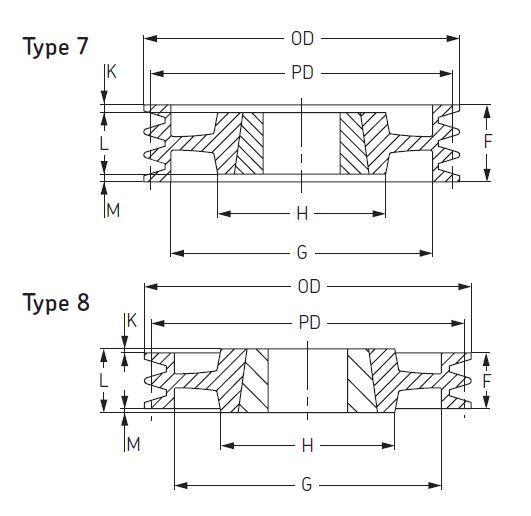

DIMENSIONS : Pitch diameter = 200 mm , OD = 205.5 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm , H = 120 mm
Price
Model
PHP 3SPA212TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 212 mm , OD = 217.5 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm , H = 120 mm
Price
Model
PHP 3SPA224TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 224 mm , OD = 229.5 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm , H = 120 mm
Price
Model
PHP 3SPA250TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 250 mm , OD = 255.5 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm , H = 120 mm
Price
Model
PHP 3SPA280TB
Model description
Bush no. 2517
DIMENSIONS : Pitch diameter = 280 mm , OD = 285.5 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 50 mm , H = 120 mm
Price
Model
PHP 3SPA315TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 315 mm , OD = 320.5 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 160 mm
Price
Model
PHP 3SPA355TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 355 mm , OD = 360.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 150 mm
Price
Model
PHP 3SPA400TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 400 mm , OD = 405.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 150 mm
Price
Model
PHP 3SPA450TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 450 mm , OD = 455.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 150 mm
Price
Model
PHP 3SPA500TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 500 mm , OD = 505.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm
Price
Model
PHP 3SPA560TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 560 mm , OD = 565.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 150 mm
Price
Model
PHP 3SPA630TB
Model description
Bush no. 3020
DIMENSIONS : Pitch diameter = 630 mm , OD = 635.5 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 50 mm , H = 150 mm
Price
Model
PHP 3SPA800TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 800 mm , OD = 805.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 50 mm , H = 170 mm
Price
Model
PHP 3SPA1000TB
Model description
Bush no. 3535
DIMENSIONS : Pitch diameter = 1000 mm , OD = 1005.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 50 mm ,F = 50 mm , H = 178 mm
Price
